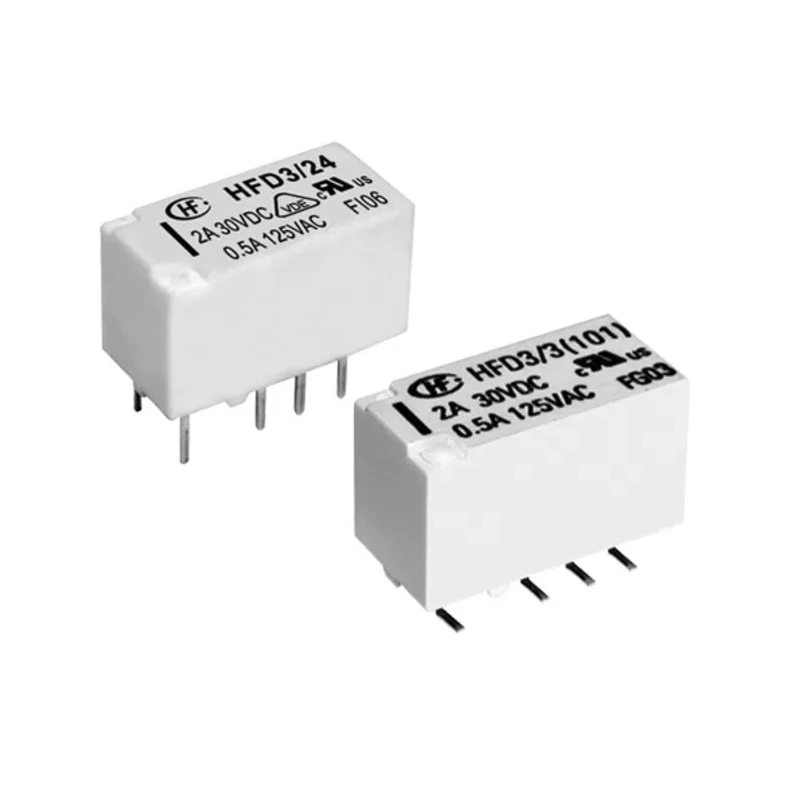

Hongfa Europe GMBH PCB Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration HFD3/5-L2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9mm |
| Length | 15mm |
| Model | HFD3/5-L2 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 101Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
| Switching Power | 90W |
| Outline Dimensions | (15.0 x 7.5 x 9.0) mm |
Key Features
- This relay has a switching power of 90W suitable for various electrical applications.
- It supports switching AC voltage up to 277V and DC voltage up to 220V.
- The relay is designed for PCB mounting with reliable PCB terminals.
- Operating temperature ranges from -40°C to 85°C allowing robust performance.
- Contact resistance is low at 100mΩ ensuring efficient signal switching.
- The coil power consumption is 200mW with coil resistance of 101Ω.
- Constructed with silver alloy contacts for durability and excellent conductivity.
- Its compact dimensions measure 15.0 x 7.5 x 9.0 mm.
Product Description
Hongfa Europe GMBH presents the HFD3/5-L2 PCB Signal Relay with a 5V DC coil and a DPDT (Double Pole Double Throw) contact configuration designed for reliable signal switching in electronics and electrical applications.
This relay operates at a switching current of 2A and supports switching voltages up to 277V AC and 220V DC with a maximum switching power of 90W, making it suitable for a wide range of control and automation systems.
Designed for PCB mounting, the relay features PCB terminals that ensure a secure and lasting connection on printed circuit boards. Its compact outline dimensions of 15.0 x 7.5 x 9.0 mm make it ideal for space-constrained installations.
The relay operates within a temperature range from -40°C to 85°C, providing dependable performance in varying environmental conditions. It exhibits low contact resistance of 100 milliohms and coil resistance of 101 ohms, with a coil power consumption of 200 milliwatts, ensuring efficient energy usage.
Silver alloy contacts enhance conductivity and durability, while the relay design supports surge withstand voltage up to 2500VAC. It is available in both SMT and DIP types, including bifurcated contact designs and stable, latching options.
This product complies with RoHS environmental standards, assuring it meets regulatory requirements for hazardous substances. This relay features a coil voltage of 5V DC and DPDT contact configuration for versatile switching.
Supports 2A switching current and maximum switching power of 90W. Compatible with switching voltages of up to 277V AC and 220V DC. PCB terminal mounting offers easy installation and reliable connectivity. Operates safely between -40°C and 85°C for varied industrial environments.
Compact dimensions of 15.0 x 7.5 x 9.0 mm allow use in tight spaces. Constructed with silver alloy contacts for superior durability. Compliant with RoHS standards ensuring environmental compliance.
Industrial applications include automation, electrical control systems, instrumentation, and signal conditioning requiring robust and compact signal relay solutions. The HFD3/5-L2 is an excellent choice for engineers and maintenance professionals in electrical and electronic manufacturing and repair sectors.
Explore more Signal Relay options and accessories at EnvMart to find the right components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 2A.
It can switch AC voltage up to 277V and DC voltage up to 220V.
The coil voltage is 5V DC, and the coil power consumption is 200mW.
The relay has compact dimensions of 15.0 x 7.5 x 9.0 mm.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The relay operates within a temperature range from -40°C to 85°C.
The contacts are constructed with silver alloy for enhanced conductivity.
The relay exhibits a low contact resistance of 100 milliohms (100mΩ).
It is designed for PCB mounting with reliable PCB terminals.
The relay complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances.
The maximum switching power is 90W.
This relay is suitable for automation, electrical control systems, instrumentation, and signal conditioning applications.
