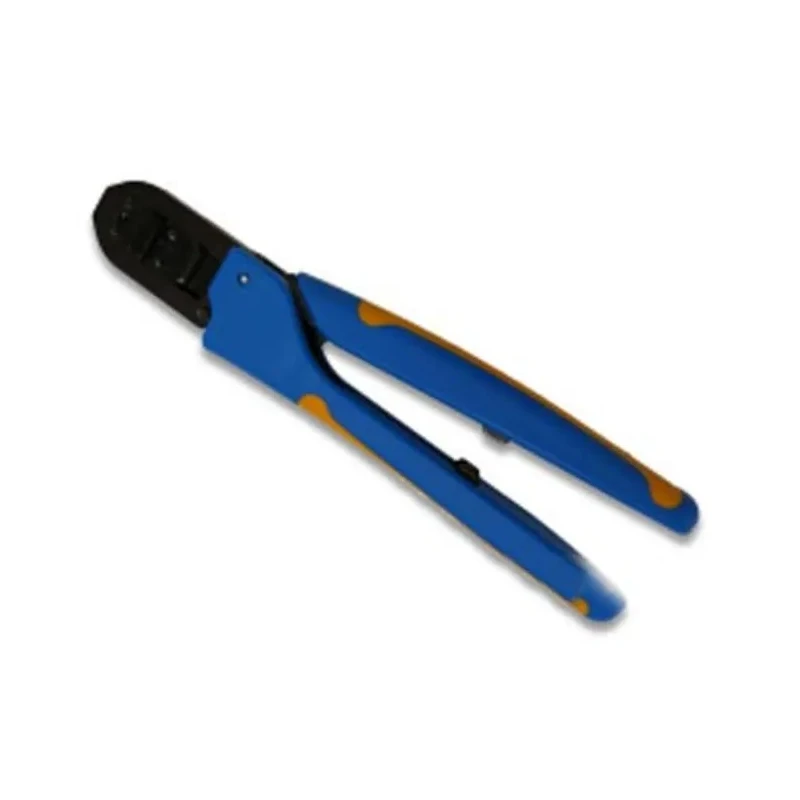

TE Connectivity CERTI-CRIMP II Straight Action Crimp Tool for DYNAMIC D-3000 Connector Contacts 296.93mm Length 91560-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity CERTI-CRIMP II Straight Action Crimp Tool for DYNAMIC D-3000 Connector Contacts 296.93mm Length 91560-1

Name: TE Connectivity CERTI-CRIMP II Straight Action Crimp Tool for DYNAMIC D-3000 Connector Contacts 296.93mm Length 91560-1
Brand: TE Connectivity
SKU: 398024
Price: 1867.98 USD
Availability: InStock



Category Crimp Tools Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Model	91560-1
Overall Length	296.93mm
Series	CERTI-CRIMP II
Sub Type	Straight Action
For Use With	DYNAMIC D-3000 Connector Contacts
Standards/Approvals	RoHS, EU
Minimum Wire Size mm²	1.23
Maximum Wire Size mm²	1.42
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG

Key Features

The tool provides precise crimping for wire sizes between 1.23 mm² to 1.42 mm².
Compatible with wire gauges from 16 AWG to 14 AWG.
It includes a fixed die crimper and a movable die anvil for dependable operation.
The locator/insulation stop ensures accurate positioning of contacts during crimping.
Equipped with a ratchet mechanism to guarantee full completion of crimps.
Meets RoHS and EU standards for compliance and quality assurance.
Non-adjustable ratchet design for consistent tool operation.

Product Description

TE Connectivity 91560-1 CERTI-CRIMP II Straight Action Crimp Tool is engineered for effective crimping of DYNAMIC D-3000 connector contacts. It has an overall length of 296.93 mm, ideal for precise cable and connector work in industrial and manufacturing environments.

The tool features a fixed die (crimper) and a movable die (anvil) which work in tandem to deliver consistent, high-quality crimps. The locator and insulation stop position the contact and limit the insertion distance of the stripped wire, ensuring accurate assembly.

The ratchet mechanism provides reliable operation by locking the tool until the dies have fully closed, ensuring every crimp meets specification requirements. This tool supports wire sizes ranging from 1.23 mm² up to 1.42 mm², corresponding to 16 AWG to 14 AWG wires, making it suitable for a variety of electrical and electronic cabling tasks.

Certified to RoHS and EU standards, the CERTI-CRIMP II is well-suited for use in electrical, industrial, and manufacturing applications where precision and reliability are critical.

The tool provides precise crimping for wire sizes between 1.23 mm² to 1.42 mm². Compatible with wire gauges from 16 AWG to 14 AWG. Fixed die crimper and movable die anvil enable consistent crimps. Locator/insulation stop positions contacts accurately during crimps.

Ratchet mechanism ensures full crimp completion. Complies with RoHS and EU standards for quality and safety. Non-adjustable ratchet provides consistent crimping operation. This crimp tool is ideal for professionals working in industrial tools, electrical assembly, and manufacturing environments, facilitating durable and reliable connector assembly.
