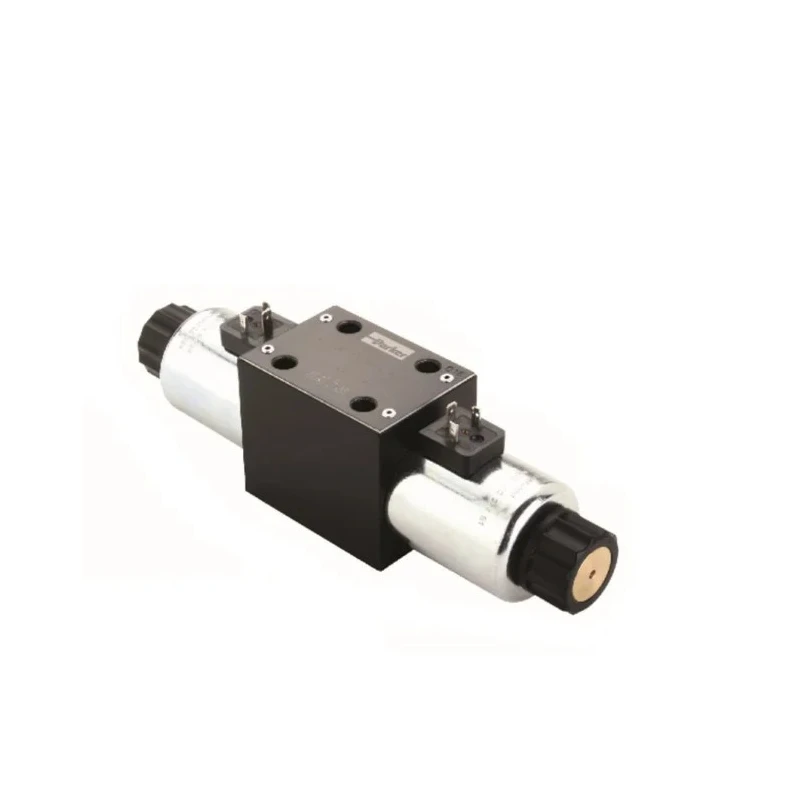

Parker Hydraulic Directional Control Valve Horizontal, Unrestricted, Double Solenoid, 230V, 80L/min, 350bar D1VW004CNYW

Parker D1VW004CNYW Hydraulic Directional Control Valve is a CETOP 03 standard valve designed for industrial hydraulic applications requiring reliable and efficient directional control. The valve features a horizontal mount type with unrestricted positioning to facilitate installation in various system layouts.

This double solenoid valve operates at 230 volts and delivers a maximum flow rate of 80 liters per minute. It supports operating pressures up to 350 bar and temperature ranges from -25°C to 70°C, making it suitable for demanding environments. The valve's seal is made from nitrile butadiene rubber, which provides excellent sealing performance and compatibility with hydraulic oils compliant with DIN 51524 standards.

Certified with multiple international standards such as NFPA D03, ISO 9461, ISO 4401, EN 60529, EN 175301-803, DIN 51524 to 51525, DIN 24340 A6, and CETOP RP 121-H, this valve ensures industrial-grade quality and safety. The solenoid actuation includes a manual override option and features a wet pin armature threaded in the tube for durability.

The valve design focuses on energy efficiency with low-pressure drop and minimized leakage (max 10 ml/min at 50 bar, spool dependent), ensuring reliable performance without excessive power consumption. It is suitable for use in hydraulic power units, manufacturing machinery, automation systems, and other fluid power applications.

The valve has a horizontal, unrestricted mount type for flexible installation. It features double solenoid actuation and operates at 230V. The maximum flow rate is 80 liters per minute, supporting robust hydraulic applications.

Designed for operating pressures up to 350 bar and temperatures from -25°C to 70°C. Seal material is nitrile butadiene rubber, ensuring durability and fluid compatibility. Conforms to multiple standards including NFPA D03, ISO 9461, ISO 4401, EN 60529, and DIN specifications.

Suitable for general industrial hydraulic uses requiring precise directional spool control. Manual solenoid override and maximum switching frequency of 15000 operations per hour support reliable control. Compatible with hydraulic oils conforming to DIN 51524 for standard industrial fluids.

Connection uses EN 175301-803 solenoid plug (plug not included).

This Parker D1VW004CNYW valve is ideal for industrial, manufacturing, construction, and hydraulic system applications where precise directional control and reliable solenoid actuation are necessary. It contributes to system efficiency, durability, and ease of maintenance. Explore the full range of hydraulic directional Control Valves at EnvMart for comprehensive fluid power solutions.
