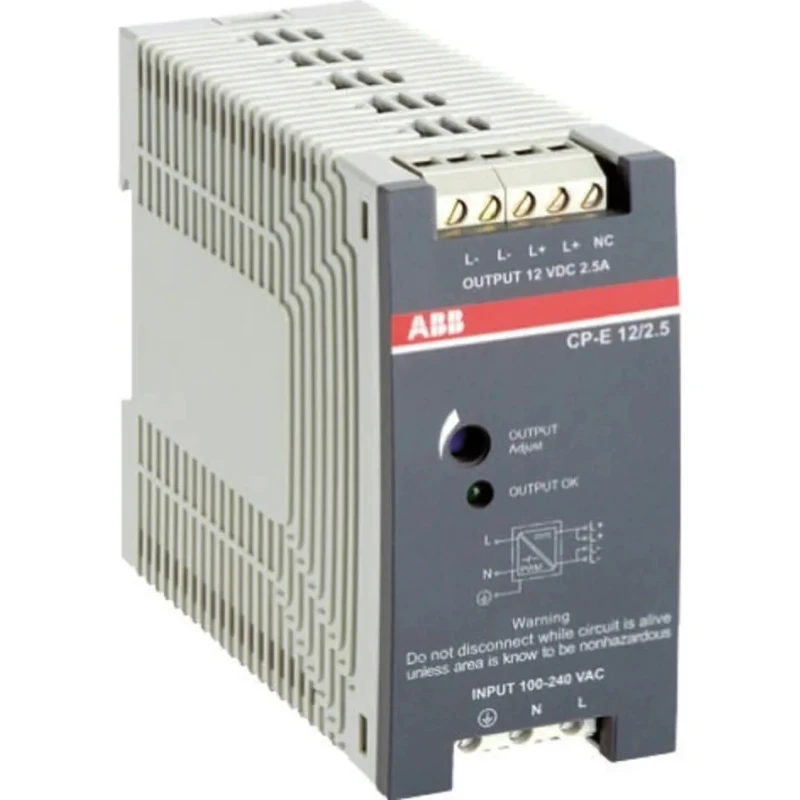

ABB CPE Switched Mode DIN Rail Power Supply 240V AC/DC Input 12V DC, 2.5 A Output, 30 W 1SVR427032R1000 CP-E 12/2.5

Free Delivery in India | Lowest Global Shipping Charges

ABB CPE Switched Mode DIN Rail Power Supply 240V AC/DC Input 12V DC, 2.5 A Output, 30 W 1SVR427032R1000 CP-E 12/2.5



Category Electronic Components, Power & Connectors Brand ABB Condition New

Specifications

Country of Origin	Taiwan
Brand	ABB
Power	30W
Efficiency	84%
Height	88.5mm
Model	1SVR427032R1000 CP-E 12/2.5
Depth	115mm
IP Rating	IP20
Width	40.5mm
Series	CPE
Output Current	2.5A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	240V ac
Electrical Phase	1
Maximum Output Voltage	12V dc
Minimum Input Voltage	100V ac

Key Features

Compact DIN rail mounting design suitable for industrial electrical panels.
Wide input voltage range supports 100 V to 240 V AC for global applications.
High efficiency of 84% minimizes energy loss and heat generation.
Output voltage is adjustable within the range to suit specific load requirements.
Operates reliably in ambient temperatures from -10°C to 70°C without forced cooling.
Single output channel delivering 2.5 A current at 12 V DC output voltage.
Protected with integrated input fuse and designed to maintain stable output under overload conditions.
Enclosure rated IP20 suitable for indoor industrial environments.

Product Description

ABB 1SVR427032R1000 CP-E 12/2.5 is a switched mode DIN rail power supply designed for industrial, commercial, and automation applications requiring reliable DC power conversion from AC or DC input sources. It features a compact form factor with dimensions 88.5 mm height, 40.5 mm width, and 115 mm depth, allowing easy mounting on IEC/EN 60715 DIN rails.

This power supply unit accepts a broad input range of 100 V to 240 V AC or DC, allowing flexible installation in regions with diverse electrical standards. It delivers a stable 12 V DC output voltage at 2.5 A maximum current, providing up to 30 W of power for downstream devices.

Engineered for efficiency, the device achieves an energy conversion efficiency of 84%, reducing heat output and power wastage. Its design includes an integrated fuse and built-in protection against open-circuit, overload, and short circuit conditions, ensuring operational safety and device longevity.

The unit is capable of operating within ambient temperatures from -10°C up to 70°C without the need for forced cooling fans, making it suitable for harsh industrial environments. Its IP20 rated housing protects internal components against accidental contact and ingress of solid foreign objects.

Compact DIN rail mounting with IEC/EN 60715 compatibility. Wide input voltage range 100 V to 240 V AC/DC. Output voltage adjustable at 12 V DC, 2.5 A maximum current. High efficiency (84%) reduces power consumption and heat.

Integrated protective features for overload, short-circuit, and open-circuit stability. Operation without forced cooling up to 70°C ambient temperature. LED status indication and signalling output for output voltage monitoring.

Complies with UL 508, UL 60950, GOST, CCC, and CE approvals. Manufactured in Taiwan, Province Of China.

This power supply is ideal for industrial automation control systems, machinery power inputs, instrumentation equipment, and other applications where dependable DC power is critical. Its adjustable output allows adaptation to varying load requirements, supporting energy-efficient and flexible system designs.
