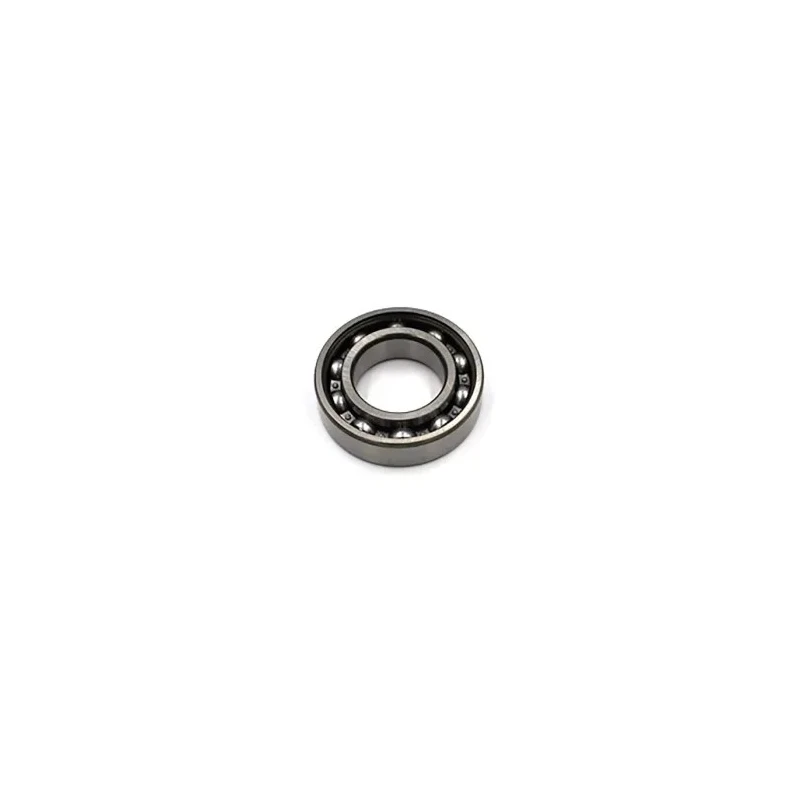

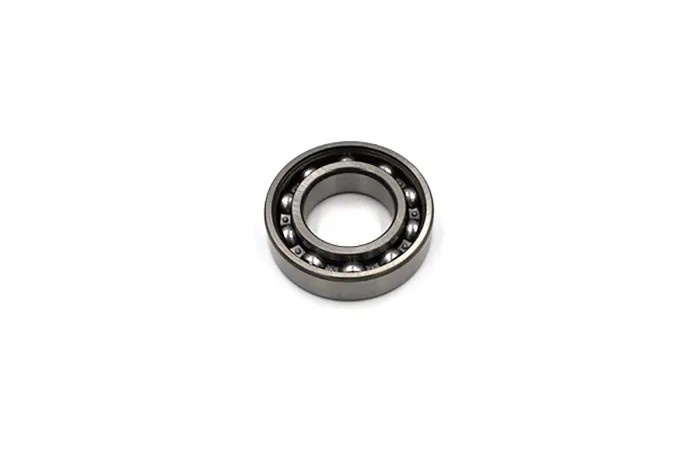

INA Single Row Deep Groove Ball Bearing 20 mm ID, 47 mm OD, 14 mm Width, Steel Cage and Ball, Open End Type 6204-C-C3

INA 6204-C-C3 is a single row deep groove ball bearing engineered to provide high and very high speed performance with very low friction and noise levels. It features an open type end configuration with a steel cage and balls, making it suitable for applications where quiet and efficient operation is critical. The bearing has a 20 mm inside diameter, 47 mm outside diameter, and a race width of 14 mm, providing compactness while maintaining high load capacity.

This bearing's C3 internal clearance allows for excellent thermal expansion compensation, ensuring optimal performance at high speeds up to 24,300 rpm. The design supports a dynamic load rating of 13.9 kN and a static load rating of 6.6 kN, making it robust for diverse industrial applications including automotive, general industrial machinery, manufacturing equipment, and HVAC systems.

The single row deep groove construction offers versatility for radial and light axial loads in both directions. The parallel bore type facilitates straightforward installation. The open end type ensures minimal heat generation and prolonged operating life without sacrificing load capacity or speed.

Bearings have a race width of 14 mm for compact design. Steel cage and steel balls ensure durability and reliable performance. Open end type bearing suitable for applications requiring low running noise. Internal clearance is C3, providing high speed capability and reduced heat generation.

Designed for high dynamic load rating of 13.9 kN and static load rating of 6.6 kN. Ideal for industrial, machinery, automotive, and manufacturing applications. Limiting speed up to 24,300 rpm to support high rotational requirements.

The bearing utilizes a parallel bore type and plain race type for ease of assembly and reliability.

This INA bearing is recommended where very high speeds, low friction, and minimal noise are critical. It is built to optimize sealing without increasing heat or limiting maximum speed, making it suitable for demanding environments in industrial, manufacturing, and maintenance use cases.
