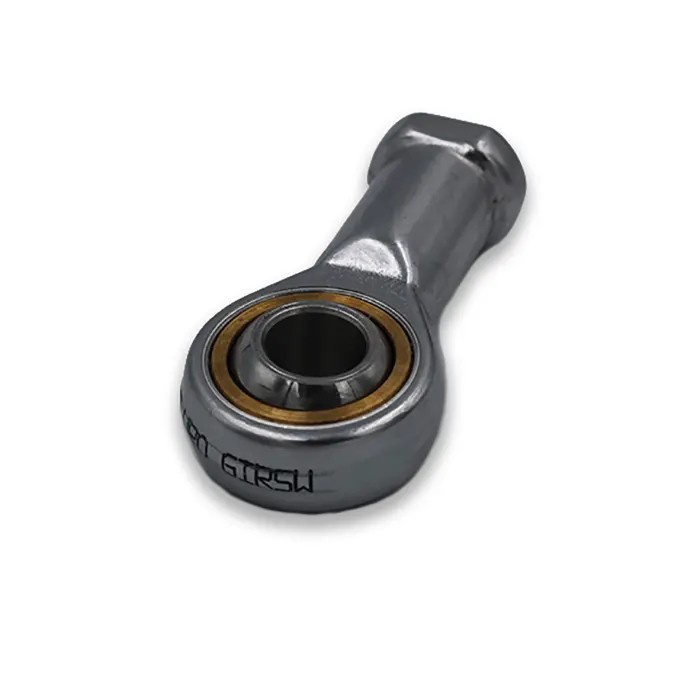

Fluro M18 x 1.5 Female Stainless Steel Rod End, 18mm Bore Metric GILRSW18R

Fluro GILRSW18R stainless steel rod end features an M18 x 1.5 female connection with an 18mm bore diameter. This rod end is engineered to perform reliably under high dynamic pressure and tension loads in corrosive environments, making it ideal for industrial, mechanical, automotive, and fluid power applications.

The stainless steel construction provides excellent corrosion resistance, complemented by a PTFE liner that enhances operation in challenging conditions. The thread direction is left-hand, accommodating specialized assembly requirements.

With a dynamic load rating of 73kN and static load rating of 64kN, this rod end delivers robust durability and load-bearing capacity. It supports a wide temperature operating range from -50°C up to 250°C, suitable for extreme environments.

The overall width of 94mm allows integration into compact mechanical systems requiring precise fit and reliable rotational articulation. Made in Germany, this rod end conforms to high manufacturing and quality standards ensuring lifespan and performance.

Constructed from durable stainless steel for corrosion resistance. Features an M18 x 1.5 female connection size with left-hand thread direction. Includes a PTFE liner to support high dynamic pressure and tension loads. Operating temperature range from -50°C to 250°C.

Dynamic load rating of 73kN and static load rating of 64kN. Overall width of 94mm for versatile mechanical applications. Manufactured in Germany ensuring high quality and reliability.

This rod end is widely used in industrial tools and equipment, rotary bearings and housing units, mechanical machinery, and fluid power systems. It is designed to offer durability in aggressive environments and provide long service life in demanding industrial applications.
