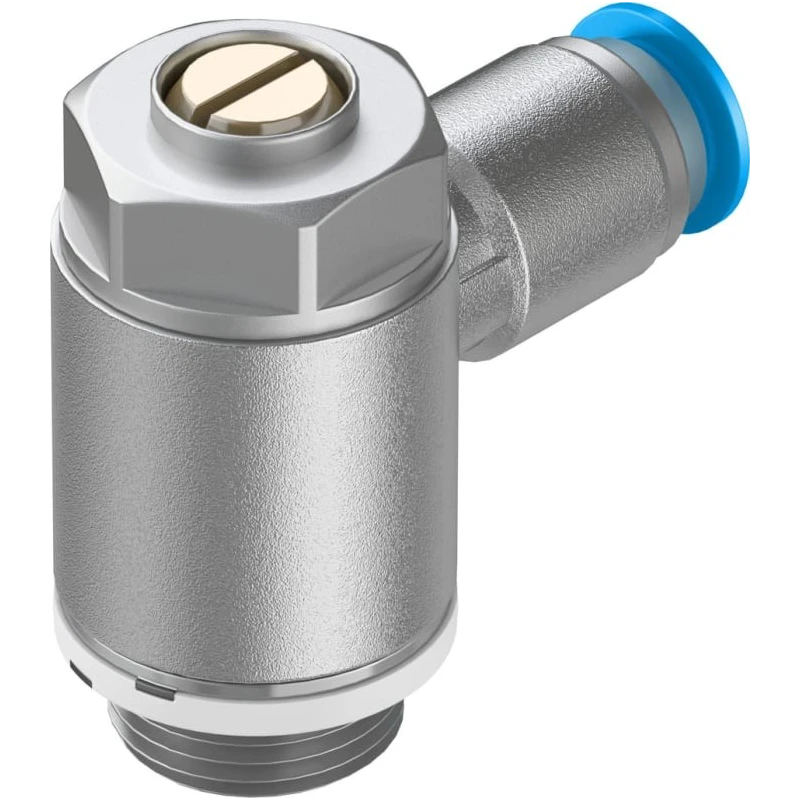

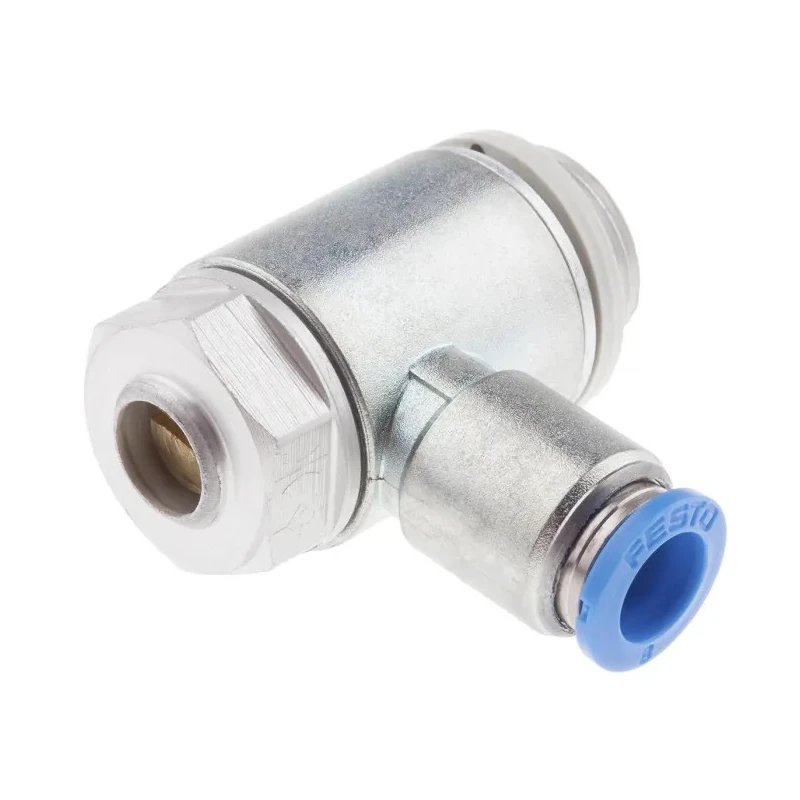

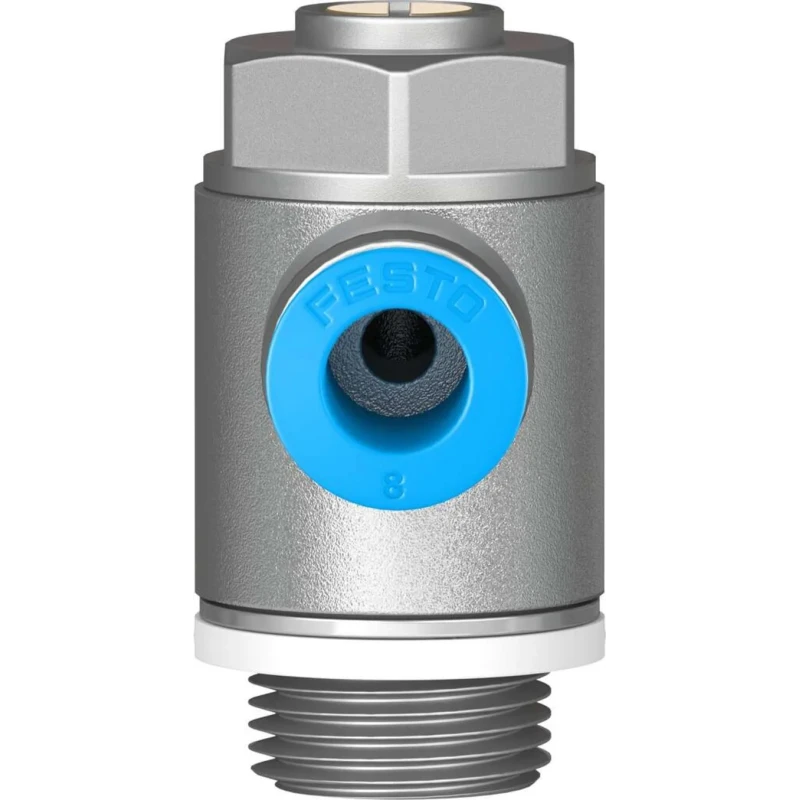

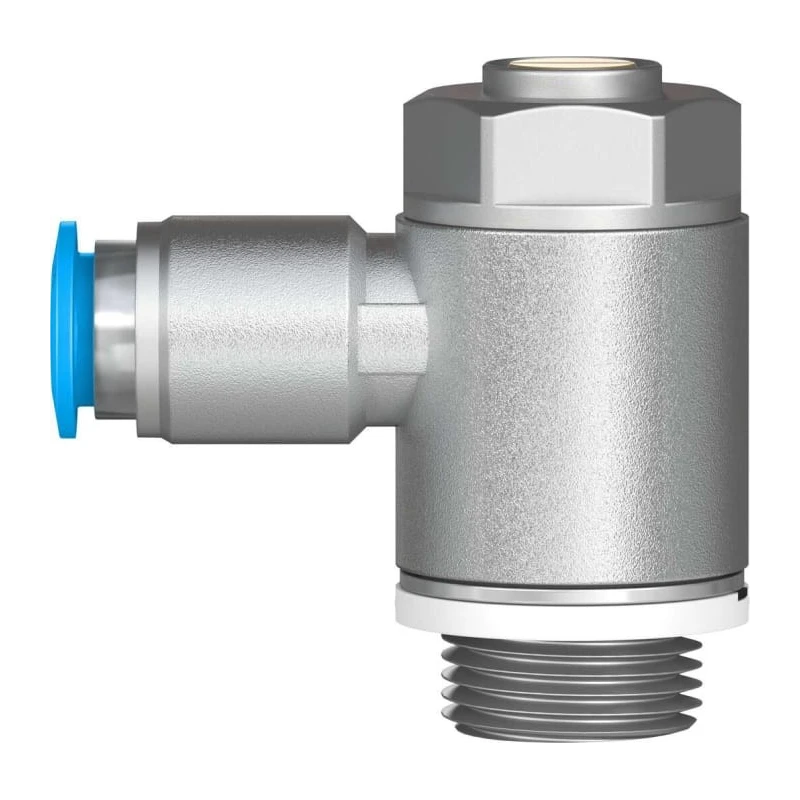

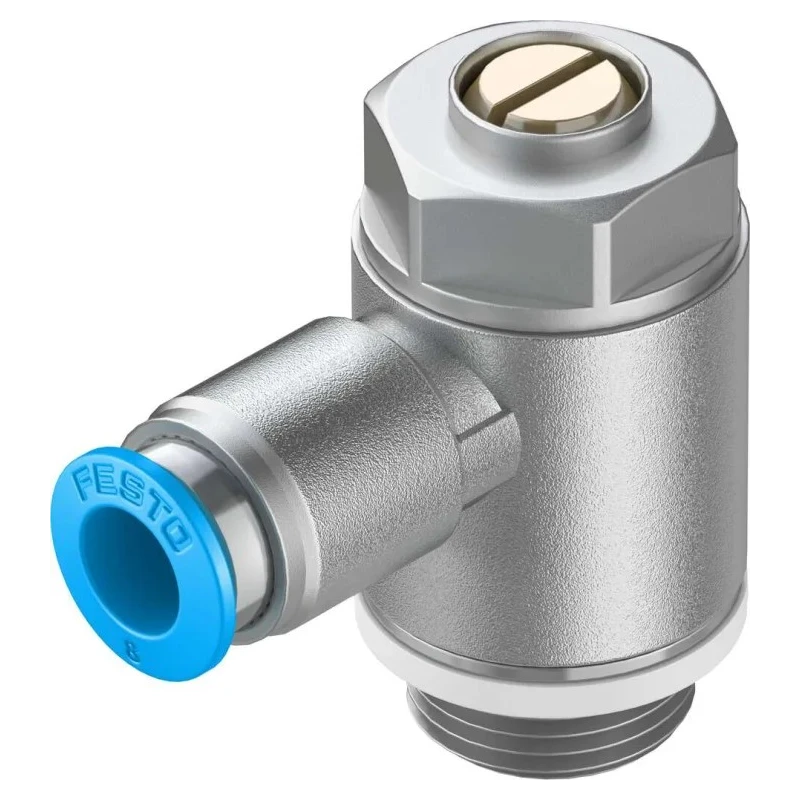

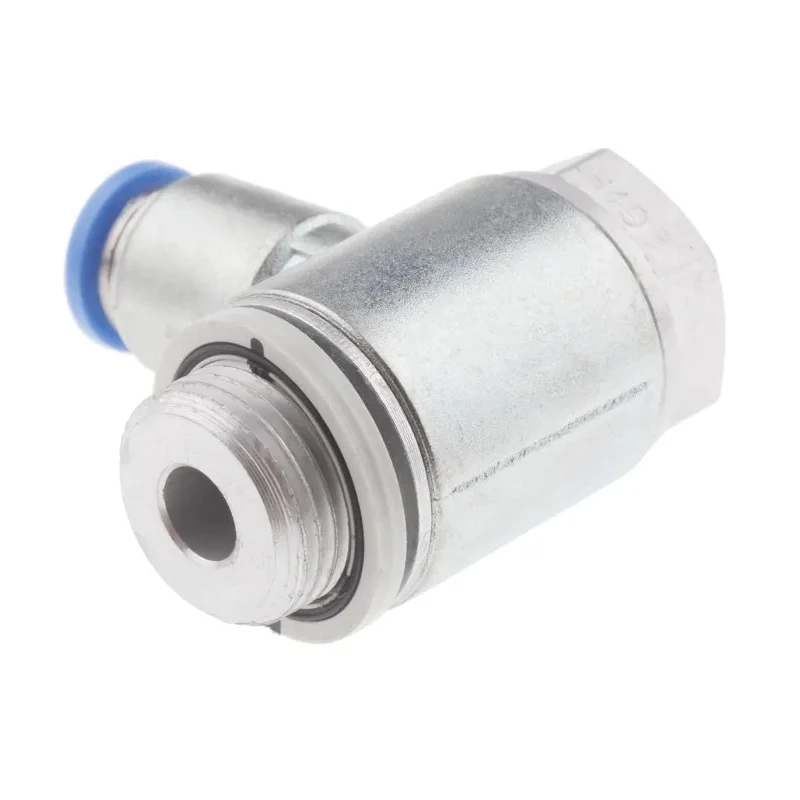

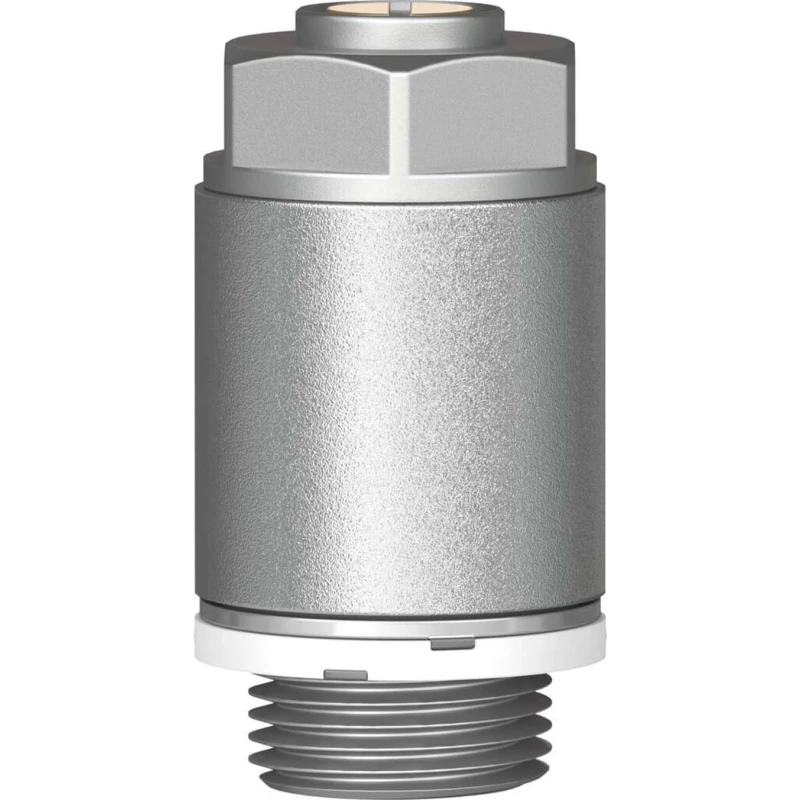

Festo GRLA Series Flow Controller Exhaust Valve Threaded ISO 1179-1 and ISO 228-1, 1 Bar Max Pressure GRLA-3/8-QS-8-D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Material | POM, Stainless Steel, Anodised wrought Aluminium Alloy, Brass, Polyamide Reinforced, Nitrile Rubber (NBR), Nickel Plated Brass, Die Cast Zinc (Chromed) |
| Maximum Operating Pressure | 1 bar |
| Outlet Connection Type | Threaded |
| Model | GRLA-3/8-QS-8-D |
| Series | GRLA |
| Maximum Operating Temperature | 150°C |
| Sub Type | Flow Controller |
| Minimum Operating Temperature | -10°C |
| Inlet Thread Standard | ISO 1179-1 and ISO 228-1 |
| Minimum Operating Pressure | 0.2bar |
| Standards/ApprovalsRoHS, ISO 1179-1, ISO 228-1, ISO 8573-1 | 2010 (7:4:4), Germanischer Lloyd |
Key Features
- Features a robust aluminium alloy body with brass adjusting screw for corrosion resistance.
- Supports a broad operating temperature range from -10°C to 150°C.
- Adjustable manual valve to control compressed air flow speed efficiently.
- Maximum operating pressure rated at 1 bar for reliable performance.
- Compatible with 8mm inlet port and G3/8 male threaded outlet connection.
- Nominal flow rate of 820 L/min suitable for high-speed pneumatic piston movements.
- Compact and lightweight design weighing approximately 60 grams.
Product Description
Festo GRLA-3/8-QS-8-D Exhaust Valve is a high-quality pneumatic flow controller designed to manage exhaust air flow in industrial pneumatic systems. The valve features an aluminium alloy body with brass components, offering excellent corrosion resistance and durability. It includes a manually adjustable brass screw allowing precise control of air flow speed to suit piston movements.
This valve has an inlet port compatible with 8mm tubing and a G3/8 male threaded outlet to facilitate quick and secure connections. It operates safely within a maximum pressure of 1 bar and a wide temperature range from -10°C to 150°C, making it reliable in harsh environments.
With a nominal flow rate of 820 L/min, it suits applications requiring fast piston actions, including pharmaceutical production, aerospace engineering, and food and beverage packaging industries. The valve’s light weight of 60 grams ensures minimal load on pneumatic lines.
The product conforms to multiple international standards such as RoHS, ISO 1179-1, ISO 228-1, ISO 8573-1:2010 (7:4:4), and holds Germanischer Lloyd certification, affirming its quality and safety compliance.
Robust aluminium alloy body and brass adjusting screw for durability. Wide operating temperature range from -10°C to 150°C. Manual adjustment for precise flow control. Maximum operating pressure of 1 bar for industrial safety.
Compatible with 8mm inlet and G3/8 outlet threaded connections. Nominal flow rate of 820 L/min for fast pneumatic actions. Lightweight design weighing approximately 60 grams. Certified to RoHS, ISO standards, and Germanischer Lloyd requirements.
This Festo flow controller exhaust valve is ideal for numerous industrial sectors including pharmaceutical production, aerospace, and food and beverage packaging. It offers reliable performance for controlling pneumatic exhaust flows with manual ease of adjustment. Browse more industrial valves and Flow Controllers on EnvMart to find the perfect fit for your pneumatic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo GRLA-3/8-QS-8-D flow controller exhaust valve is 1 bar.
This model has a nominal flow rate of 820 L/min, suitable for fast pneumatic actions.
It is compatible with an 8mm inlet port and a G3/8 male threaded outlet connection.
The operating temperature range for this valve is from -10°C to 150°C.
The valve is made from a combination of materials including anodised wrought aluminium alloy, brass, and nitrile rubber (NBR).
It complies with RoHS, ISO 1179-1, ISO 228-1, ISO 8573-1:2010 (7:4:4), and holds Germanischer Lloyd certification.
This unit weighs approximately 60 grams, making it lightweight for easy installation.
The brass adjusting screw allows for manual adjustment to control the air flow speed precisely.
The minimum operating pressure for the GRLA-3/8-QS-8-D is 0.2 bar.
It is suitable for applications in pharmaceutical production, aerospace engineering, and food and beverage packaging industries.
This model is classified as a flow controller, specifically designed for managing exhaust air flow in pneumatic systems.
The inlet thread standard for this valve is ISO 1179-1 and ISO 228-1.
