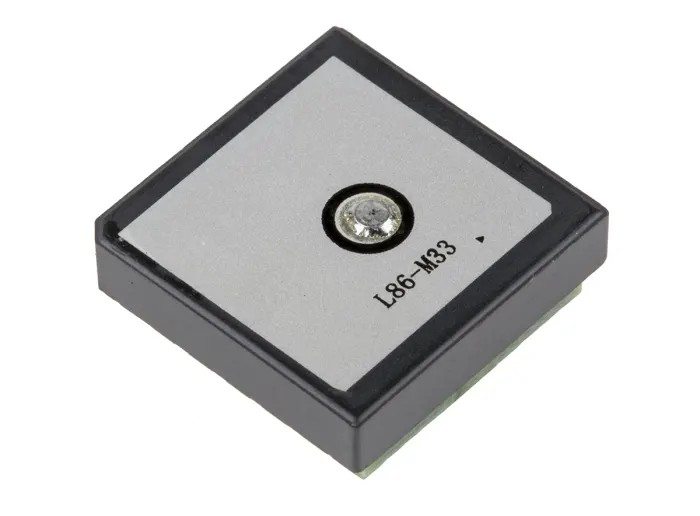

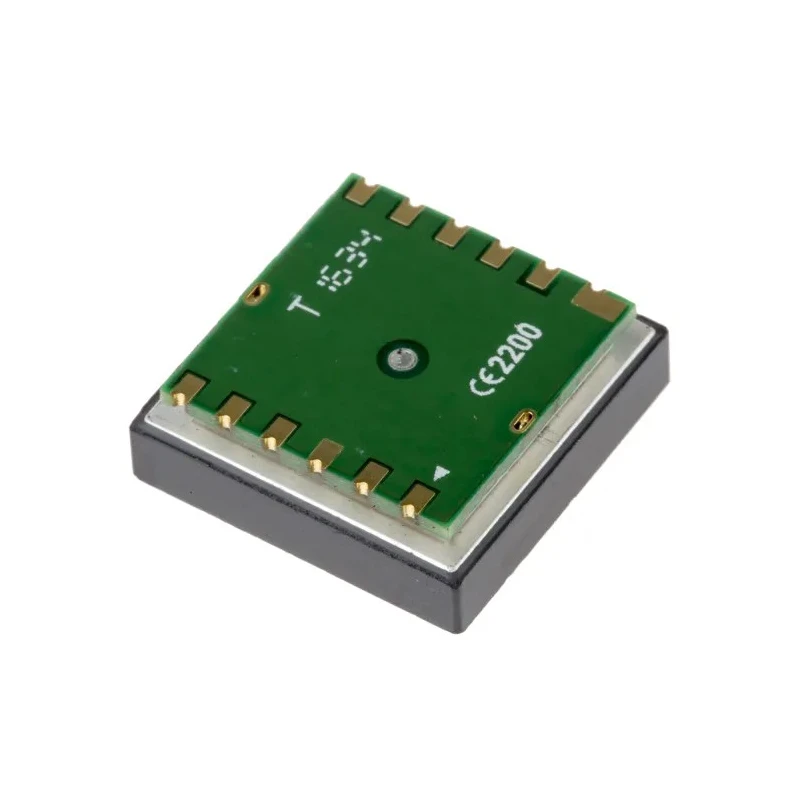

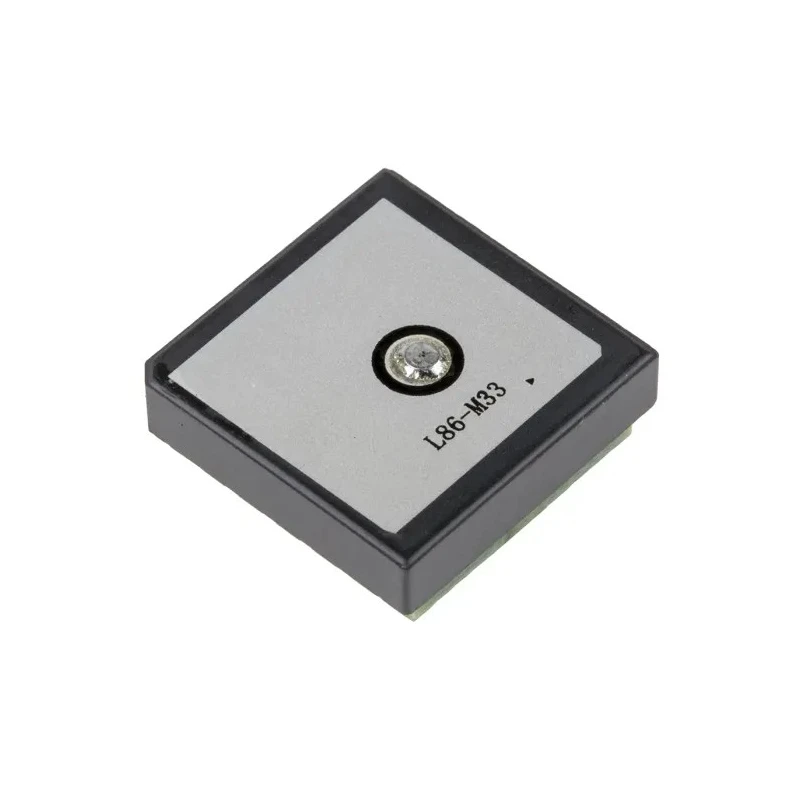

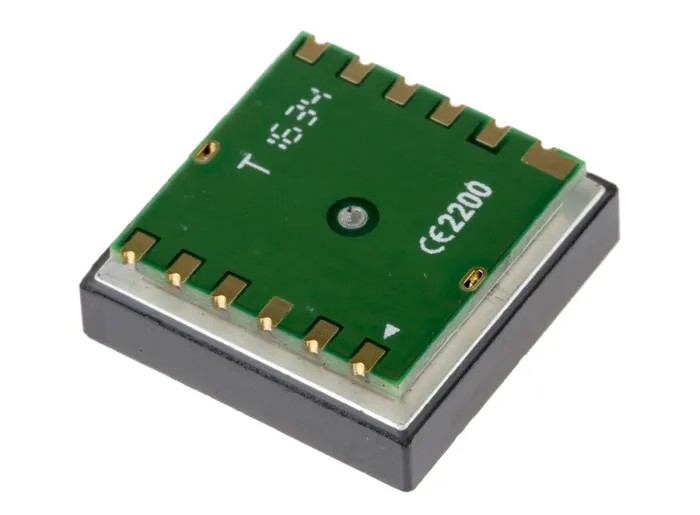

Quectel GNSS Patch on Top Module 33 Channels UART Interface -148 dBm Sensitivity L86-M33
Specifications
| Country of Origin | China |
|---|---|
| Brand | Quectel |
| Height | 6.45mm |
| Length | 18.4mm |
| Model | L86-M33 |
| Series | L86 GNSS |
| Maximum Operating Temperature | 85°C |
| Protocol | NMEA 0183 |
| Minimum Operating Temperature | -40°C |
| Tracking Sensitivity | -165dBm |
| Acquisition Sensitivity | -148dBm |
| Number Of Channels | 33 |
| High Sensitivity | -165 dBm (tracking) |
| Interface Type | UART |
| Module | 16.0 x 16.0 x 6.45 mm |
| Embedded patch antenna | 18.4 x 18.4 x 4.0 mm |
Key Features
- The module features high tracking sensitivity of -165 dBm and acquisition sensitivity of -148 dBm.
- It supports GPS, GLONASS, and QZSS navigation systems.
- Compact design includes embedded patch antenna with automatic antenna switching function.
- Operating temperature range spans from -40°C to 85°C for robust application.
- Utilizes EASY™ AGPS technology and AlwaysLocate™ for fast and precise positioning.
- Its UART interface supports standard NMEA 0183 protocol communication.
- Ideal for portable devices, automotive, personal tracking, and security applications.
Product Description
Quectel L86-M33 is a high-performance GNSS Patch on Top (POT) module designed for compact integration into portable and automotive devices. Featuring MediaTek MT3333 GNSS chipset, this module delivers exceptional navigational and tracking accuracy with a sensitivity of -165 dBm tracking and acquisition sensitivity of -148 dBm.
The L86-M33 integrates an embedded patch antenna measuring 18.4 x 18.4 x 4.0 mm and an overall module size of 16.0 x 16.0 x 6.45 mm, making it ideal for space-constrained designs. It supports multiple global navigation satellite systems including GPS, GLONASS, and QZSS, enabling reliable and precise positioning worldwide.
The module employs UART interface using the widely adopted NMEA 0183 protocol, facilitating straightforward integration and communication with host devices. It features automatic antenna switching allowing seamless transition between the embedded patch antenna and an external antenna for flexible installations.
Designed to operate reliably in harsh conditions, it supports a wide temperature range from -40°C to 85°C, suitable for industrial and automotive applications. Additionally, the L86-M33 benefits from EASY™ Assisted GPS and AlwaysLocate™ technology to optimize power consumption and improve time-to-first-fix performance.
High tracking sensitivity of -165 dBm for enhanced signal reception. Supports 33 tracking channels with 99 acquisition channels for robust satellite acquisition. Compact embedded patch antenna integrated within a 16 mm module footprint.
Automatic antenna detection and short circuit protection ensure reliable operation. UART interface supporting NMEA 0183 protocol for seamless device communication. Wide operating temperature range ensures durability in challenging environments.
Ideal for embedding in portable devices, automotive navigation, personal tracking, and security systems.
Originating from China, the Quectel L86-M33 GNSS module is a dependable solution for industrial, commercial, and consumer navigation needs. This product is new and packaged for seamless integration. Explore more GNSS and GPS modules to find the ideal fit for your application in EnvMart’s Electronics Components category.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tracking sensitivity of the L86-M33 module is -165 dBm, which enhances signal reception capabilities.
The acquisition sensitivity of the L86-M33 is -148 dBm, allowing for effective satellite acquisition.
This model supports GPS, GLONASS, and QZSS navigation systems, providing reliable positioning worldwide.
It utilizes a UART interface that supports the NMEA 0183 protocol for communication with host devices.
The overall dimensions of the L86-M33 module are 16.0 x 16.0 x 6.45 mm, while the embedded patch antenna measures 18.4 x 18.4 x 4.0 mm.
This module supports 33 tracking channels and 99 acquisition channels for robust satellite acquisition.
Yes, it features an embedded patch antenna, which includes an automatic antenna switching function for flexible installations.
The height of the L86-M33 module is 6.45 mm.
The L86-M33 module originates from China.
The L86-M33 is part of the L86 GNSS series, designed for compact integration into devices.
