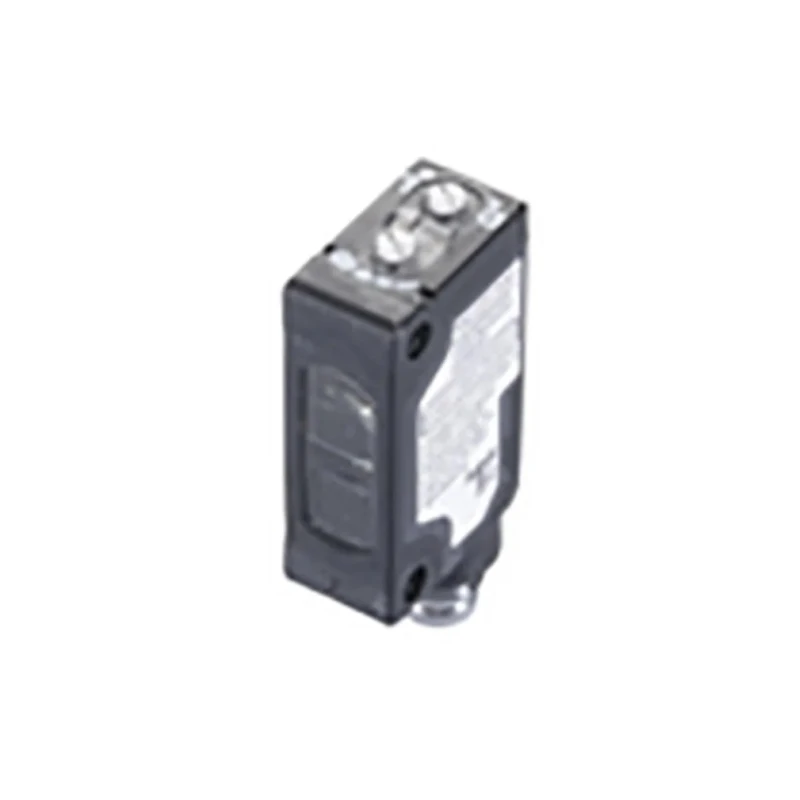

BALLUFF Retroreflective Photoelectric Sensor, Block Sensor, 10 m Detection Range, PNP Output, IP67 Rated BOS 5K-PU-LR10-S75
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | BALLUFF |
| Response time | 250μs |
| Light Source | LED |
| Detection range | 10 m |
| Model | BOS 5K-PU-LR10-S75 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | PNP |
| Series | BOS 5K |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CDRH, CE, cULus |
| Materials Detected | Glass |
| Sensor Style | Block |
Key Features
- The sensor uses retroreflective technology for precise object detection.
- Equipped with LED light source for reliable sensing.
- Panel mount with connector terminal type for easy installation.
- Operates over a temperature range from -10°C to 55°C.
- Short-circuit and polarity reversal protection enhance sensor longevity.
- Suitable for industrial automation and control applications.
- Housing constructed from Polybutylene Terephthalate and Polycarbonate materials.
- Certified with CDRH, CE, and cULus approvals ensuring quality compliance.
Product Description
BALLUFF BOS 5K-PU-LR10-S75 is a robust retroreflective photoelectric sensor designed for industrial automation and control applications requiring precise object presence detection. The block sensor style features a 10 meter detection range, leveraging retroreflective technology that detects objects by interruption of the light beam between the sensor head and reflector.
The sensor outputs a PNP signal and features a connector terminal type, making it convenient for panel mounting configurations. Its LED light source ensures reliable sensing performance under various environmental conditions. The housing is made from durable Polybutylene Terephthalate and Polycarbonate, providing IP67 ingress protection against dust and water.
Operating over a temperature range from -10°C to 55°C, the sensor is suitable for a variety of industrial environments. It offers short-circuit and polarity reversal protections to prevent damage and extend operational life. Certified to meet CDRH, CE, and cULus standards, the BOS 5K series meets rigorous quality and safety requirements.
The sensor uses retroreflective technology for precise object detection. LED light source ensures consistent detection performance. Panel mount design with connector terminals provides installation flexibility. Temperature range of -10°C to 55°C suitable for demanding environments.
Short-circuit and polarity reversal protections enhance reliability. Constructed from high-quality plastic materials for durability. Approvals include CDRH, CE, and cULus for safety compliance. Maximum operating voltage is 30V DC with maximum current 100mA.
Fast response time of 250 microseconds.
This Photoelectric Sensor is ideal for industrial automation, manufacturing, laboratory instrumentation, and material handling systems requiring accurate detection of metal and non-metal objects. Its IP67 rating ensures resistance to harsh conditions, making it suitable for applications in manufacturing plants, assembly lines, and HVAC control systems.
Explore a wide range of high-quality sensors and industrial automation components on EnvMart to meet your specific technical needs.
