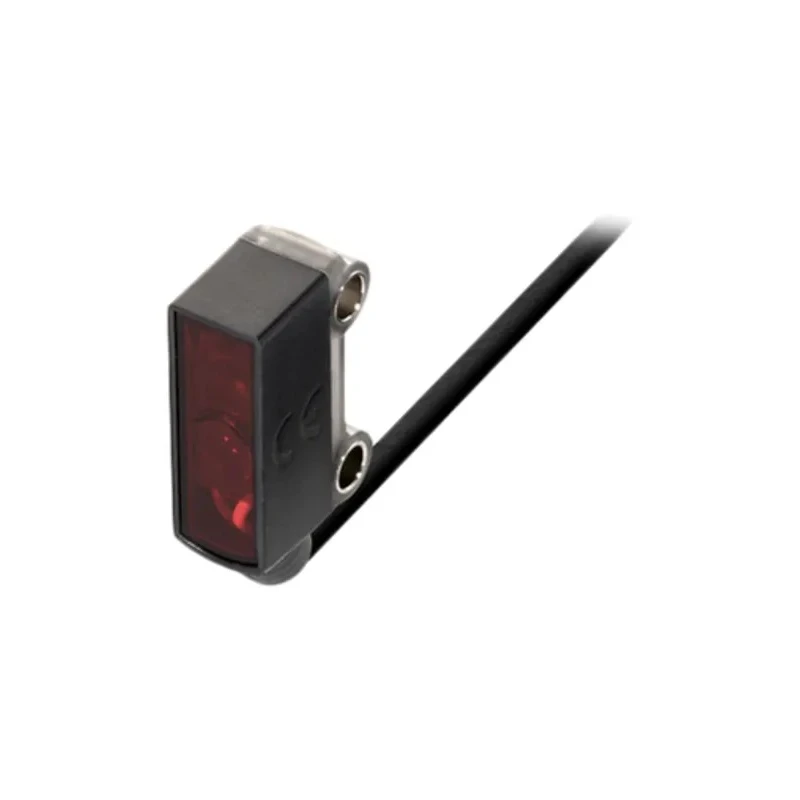

BALLUFF Diffuse Photoelectric Sensor, Block Style, Detection Range 1 mm to 60 mm, PNP Output BOS R020K-PS-RF12-00,2-S49

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Diffuse Photoelectric Sensor, Block Style, Detection Range 1 mm to 60 mm, PNP Output BOS R020K-PS-RF12-00,2-S49

Name: BALLUFF Diffuse Photoelectric Sensor, Block Style, Detection Range 1 mm to 60 mm, PNP Output BOS R020K-PS-RF12-00,2-S49
Brand: BALLUFF
SKU: 386578
Price: 217.53 USD
Availability: InStock



Category Photoelectric Sensor Brand BALLUFF Condition New

Specifications

Country of Origin	Hungary
Brand	BALLUFF
Light Source	LED
Detection range	1 mm → 60 mm
Model	BOS R020K-PS-RF12-00,2-S49
IP Rating	IP67
Mount Type	Panel Mount
Housing Material	ABS
Output type	PNP
Series	BOS R020K
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Maximum Current	50mA
DetectIon Type	Diffuse
Terminal type	Connector
Interface Type	IO-Link
Maximum dc Voltage	30V dc
Standards/Approvals	CE, IEC 60947-5-2
Materials Detected	Glass
Sensor Style	Block

Key Features

Designed for precise detection of glass materials using visible red LED light source.
Panel mount design with impact resistant ABS housing and metal bushing reinforced mounting holes.
Operates reliably within -25°C to 50°C temperature range.
Equipped with connector terminal type and IO-Link interface for easy integration.
Maximum operating voltage of 30V DC and current of 50mA with short circuit and reverse polarity protection.
Complies with CE and IEC 60947-5-2 standards with no hazardous area certification.
IP67 rated for dust tight and water resistant performance in industrial environments.
Suitable for packaging machinery, assembly, material handling, small part detection, and general automation applications.

Product Description

BALLUFF BOS R020K-PS-RF12-00,2-S49 diffuse Photoelectric Sensor is a block style sensor designed for industrial automation and control applications. It uses a visible red LED light source for precise detection of glass and other materials within a range of 1 mm to 60 mm. This sensor offers a PNP output type and features IP67 ingress protection, making it dust tight and water resistant for harsh environments.

Encased in a rugged ABS housing with metal bushing reinforced mounting holes, this panel mount sensor can withstand impact and ensures reliable operation in packaging machinery, assembly lines, material handling, and small part detection tasks. The connector terminal type and IO-Link interface provide flexibility and ease of installation in various control systems.

The sensor operates within a temperature range of -25°C to 50°C and supports a maximum DC voltage of 30V with a current rating of 50mA. It includes protections for reverse polarity and short circuit, enhancing sensor durability and system safety. This product meets CE and IEC 60947-5-2 standards.

Precise glass material detection using visible red LED light source. Impact resistant ABS housing with metal-reinforced mounting holes. Panel mount installation for secure and flexible setup. Operating temperature range from -25°C to 50°C for versatility.

Connector terminal with IO-Link interface for seamless integration. Maximum operating voltage 30V DC and current 50mA with protective features. Certified to CE and IEC 60947-5-2 standards, ensuring compliance and safety.

IP67 rating for dust and water resistance in industrial settings. Ideal for automation tasks including packaging, assembly, material handling, and error proofing.

Manufactured in Hungary, this BALLUFF sensor combines durability, precision, and industrial-grade certifications to support efficient and reliable automation processes. EnvMart offers an extensive range of sensors including photoelectric types to fit diverse industrial requirements.
