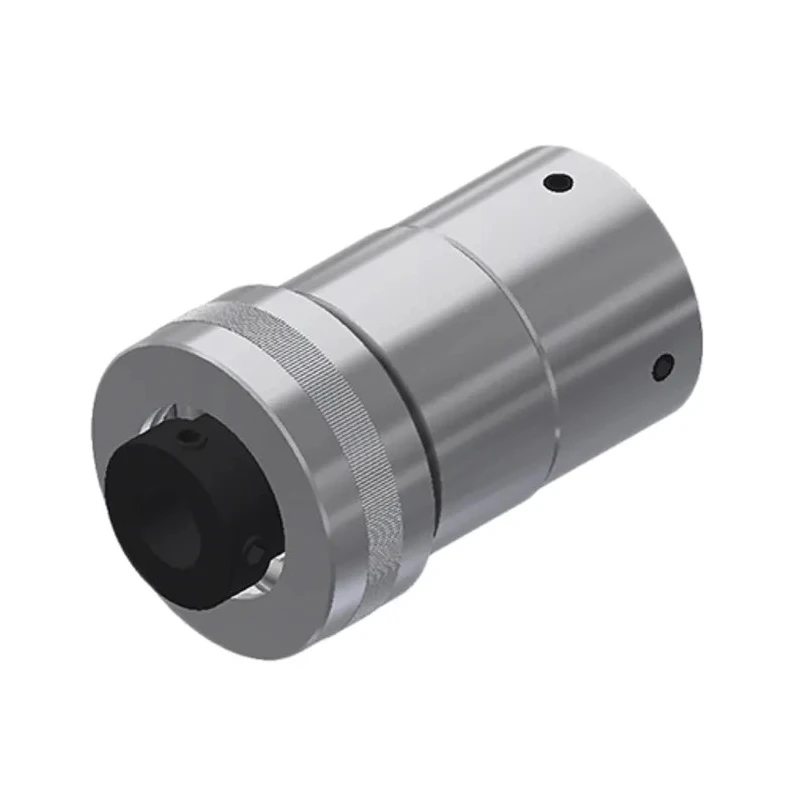

Huco Friction Clutch 16mm Bore 300 Ncm Torque Rating 500rpm Max Speed VARITORK Series 281P48.4242.RS

Huco 281P48.4242.RS friction clutch features a 16mm bore and a torque rating of 300 Ncm, designed to provide controlled slip torque for precise power transmission in industrial applications.

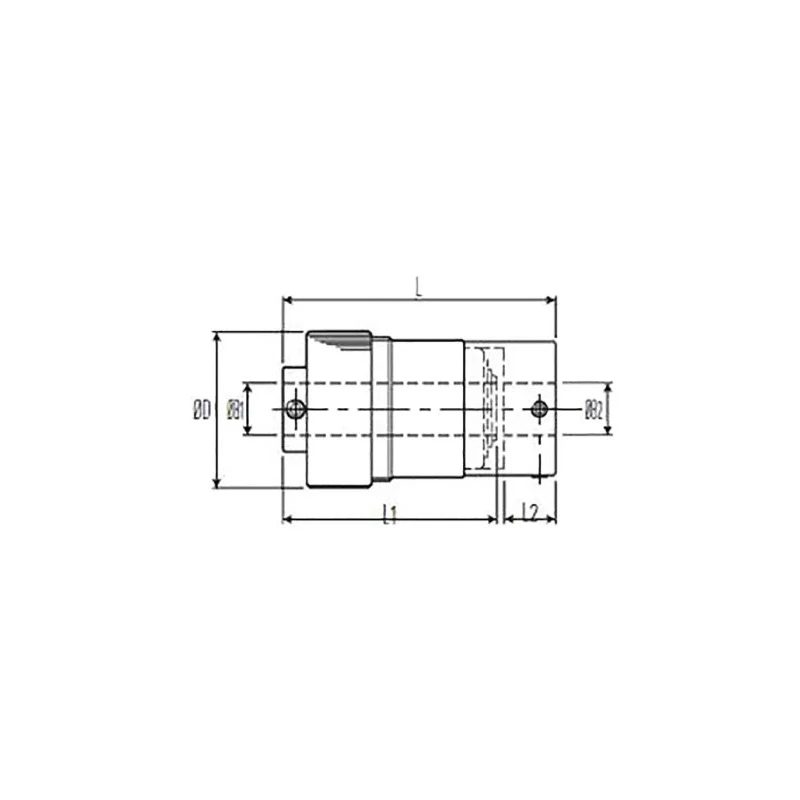

This friction clutch operates reliably at a maximum speed of 500rpm and incorporates compact proportions with four interface styles to fit diverse mounting requirements.

The clutch includes a 6 plate adjustable friction mechanism coupled with a sleeve adaptor, set screw, and clamp fixings, allowing for accurate torque adjustment and secure fitting.

The pressure is applied through an adjuster acting via a spring and pressure plate, facilitating controlled slip between the hub and housing whenever the load exceeds the set torque.

Constructed with a steel inner hub and an aluminum alloy housing, this clutch is both durable and lightweight, suitable for a variety of mechanical power transmission uses.

Applications include torque limiting to interrupt power continuity when preset torque is reached, maintaining tension during filament or tape winding by exerting drag, and acting as an overrun device to absorb motor inertia during braking or stops.

This clutch operates at a maximum speed of 500rpm ensuring efficient power transmission. Constructed with compact proportions offering four interface mounting styles. Equipped with a 6 plate adjustable friction clutch mechanism and a sleeve adaptor for precise adjustment.

Mount type is clutch mount with set screw and clamp fixings for secure installation. Can function as a torque limiter, tensioning device, or overrun device for various industrial uses. Made with steel inner hub and aluminum alloy housing for durability and lightweight.

Designed to absorb residual inertia during load braking or terminal stops in mechanical systems. Suitable for industrial machinery requiring reliable friction clutch operation and torque control. This high-quality friction clutch from Huco is manufactured in the United Kingdom, ensuring adherence to rigorous standards for industrial mechanical components.
