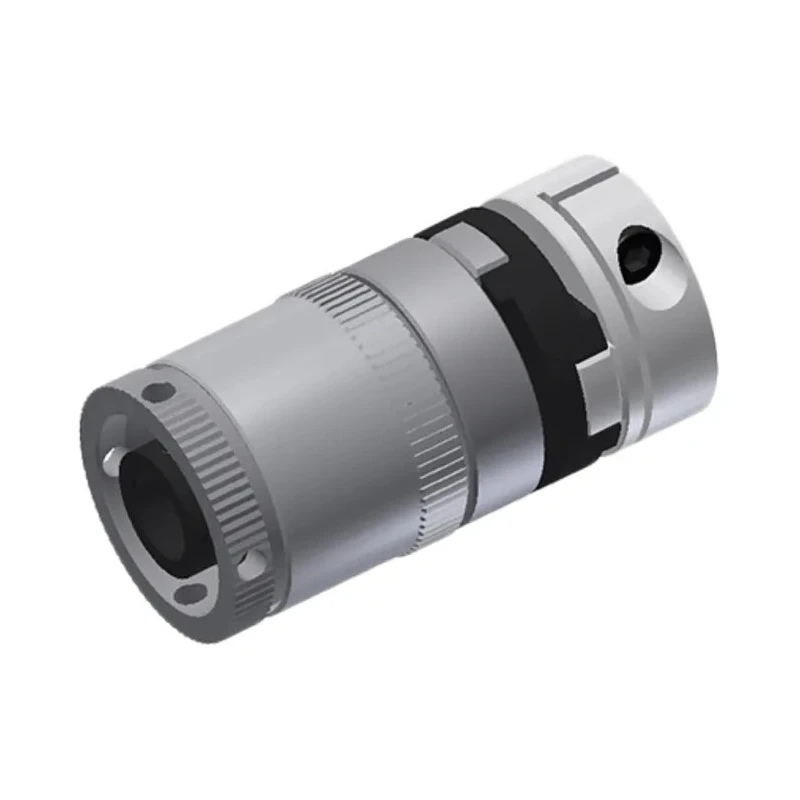

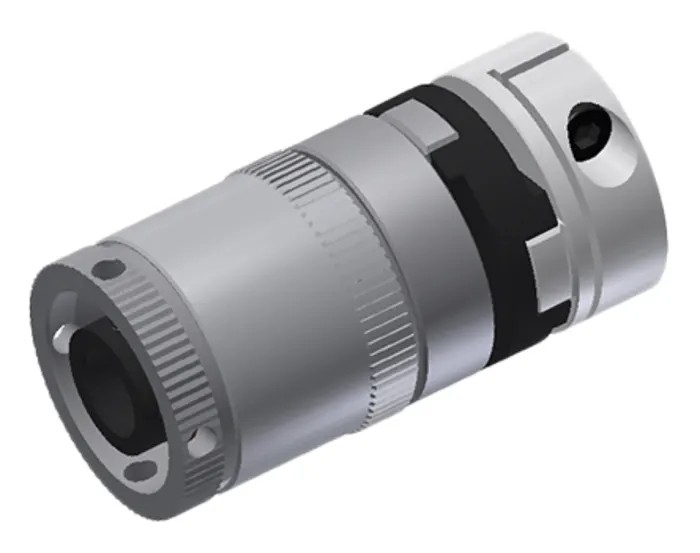

Huco Friction Clutch 6mm Bore 132 Ncm Torque Rating, 1000rpm Max Speed, In-Line Mount 269P25.2222.RS

Huco 269P25.2222.RS friction clutch with a 6mm bore diameter and 132 Ncm torque rating is a high-performance mechanical power transmission component designed for industrial, manufacturing, and mechanical applications. It supports a maximum speed of 1000rpm and features an in-line mount type for straightforward assembly.

This clutch comprises 6 adjustable friction plates with clamp Oldham coupler and set screw fixings, offering precise control over drag or slip torque. The pressure is applied on the plates and friction rings through an adjuster acting via a spring and pressure plate, making it highly effective as a torque limiter, tensioning device, or overrun device.

Huco's Vari-Tork series provides compact proportions and multiple interface styles, allowing users to select the appropriate mounting and connection method based on their operational needs.

The clutch is ideal for interrupting the power flow when torque exceeds a predetermined level, maintaining tension in winding operations, or absorbing residual motor inertia during braking. Its design suits diverse industrial use cases including mechanical, manufacturing, and fluid power tools.

The clutch supports adjustable slip torque for controlled power transmission. Compact and versatile with 4 interface styles available. Set screw or clamp connections accommodate different mounting requirements. Acts effectively as torque limiter, tensioner, or overrun device.

Manufactured to high standards by Huco in the United Kingdom. Explore the full range of Huco Mechanical Power Transmission components at EnvMart for reliable and precision solutions tailored to your industrial machinery needs.
