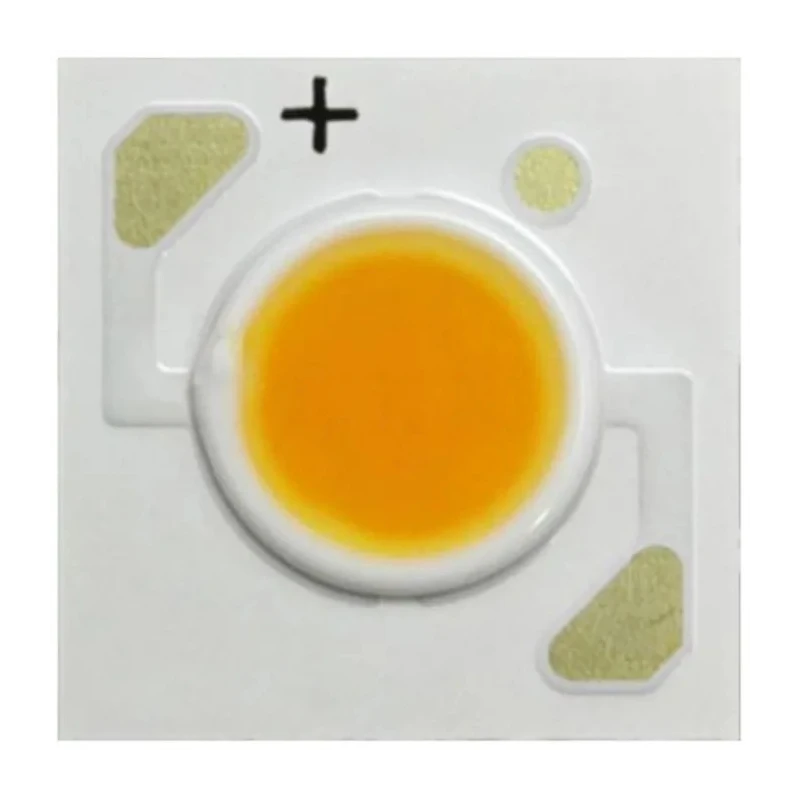

Cree LED CXA2 White CoB LED 3000K 90 %CRI CXA2

Cree LED CXA2 White CoB LED 3000K 90 %CRI CXA2 is an advanced multiple-die integrated LED array designed for high lumen output and lighting-class reliability. It is ideal for industrial, commercial, and architectural lighting applications such as commercial downlights, high-bay lighting, GU10 bulbs, and outdoor luminaires.

This LED series uses SC5 Technology delivering up to 33% higher efficacy than previous generations, enabling superior light output from a smaller light-emitting surface. The 6 mm optical source diameter contributes to uniform and well-distributed illumination with a 115° viewing angle.

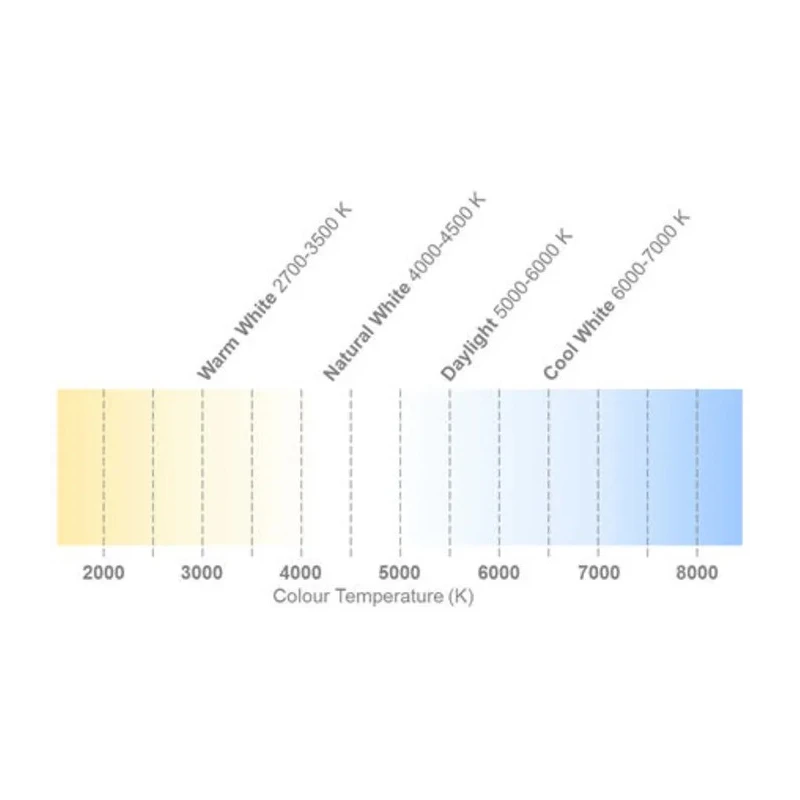

Operating at a color temperature of 3000K, this COB LED produces warm white light with a high color rendering index of 90%, ensuring vibrant and accurate color rendition for indoor and display lighting.

The CXA2 LED has a maximum forward current rating of 1000mA and a forward voltage of 9V, designed for compatibility with existing LED driver solutions. The compact form factor (13.35 mm length by 7.5 mm width) allows easy retrofit into existing fixtures with tray packaging facilitating efficient automated mounting.

This product meets multiple applicable certifications and standards including RoHS compliance, NEMA SSL-3 2011, UL Component certification, ANSI/UL 8757, and REACH, ensuring product reliability and environmental safety.

Typical luminous flux rating of 453 lumens provides bright output for various lighting applications. Designed for a maximum forward current of 1000mA ensuring stable operation. Features a 6 mm optical source diameter for focused light emission.

Operates at 3000K color temperature producing warm white light. Excellent color rendering index of 90% for accurate color perception. Viewing angle of 115° enables wide area illumination. Forward voltage rating of 9V supports efficient LED driving.

Compact dimensions of 13.35mm length and 7.5mm width allow versatile integration. Packaged in trays suitable for automated assembly processes. Complies with RoHS, REACH, UL, and industry standards for quality and safety.

This Cree LED CXA2 series COB LED is well suited for use in industrial lighting, commercial lighting installations, retail environments, architectural accent lighting, and outdoor luminaires requiring efficient and high-quality LED solutions. Browse related Cree LED components and LED lighting products for complete lighting design solutions at EnvMart.
