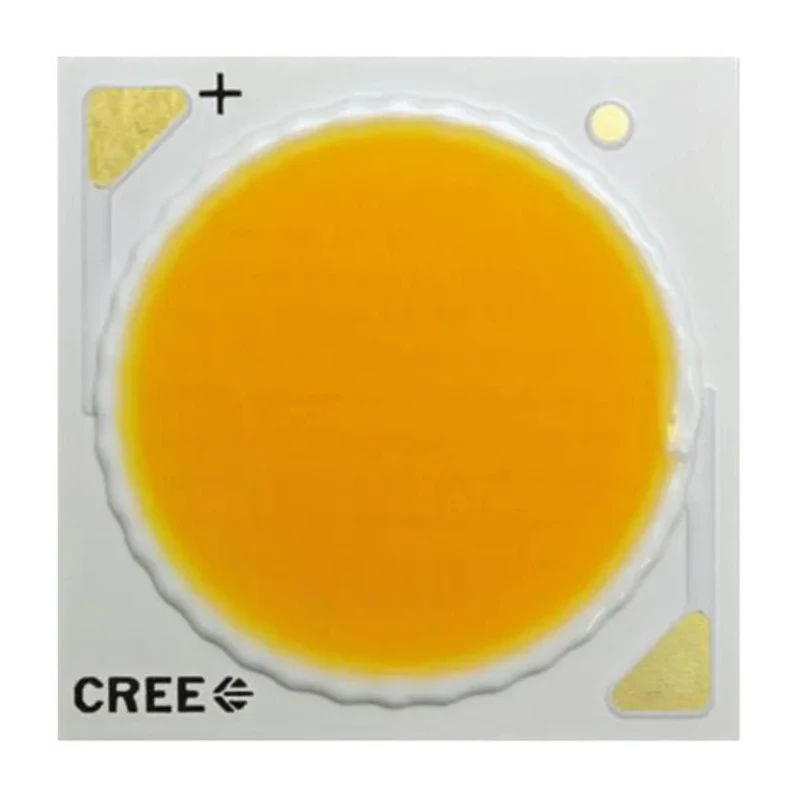

Cree LED CXA2 White CoB LED 3000K 80 %CRI High Luminous Flux 5380lm, 36V Forward Voltage CXA2

Cree LED CXA2 White CoB LED 3000K 80 %CRI is a premium lighting-class chip-on-board LED from the XLamp CXB2540 Series, manufactured in China. This COB LED delivers an impressive typical luminous flux of 5380 lumens at a warm color temperature of 3000K, making it ideal for commercial downlights, GU10 lamps, outdoor lighting fixtures, and high-bay industrial applications.

The CXA2 series incorporates the latest SC5 Technology that increases efficacy by approximately 33%, allowing the same output to be achieved from a smaller light emitting surface of 19 mm diameter. This results in a more compact LED design with a viewing angle of 115 degrees, both reducing fixture size and improving light distribution.

The LED array supports a maximum forward current of 2100 mA with a forward voltage of 36V and radiant flux of 79 watts, suitable for high-performance luminaires that demand reliability and energy efficiency. The LED color is white with an 80% Color Rendering Index ensuring natural color accuracy, which is essential in retail, commercial, and architectural lighting environments.

The CXA2 series complies with strict standards such as RoHS, ANSI/UL 8756, REACH, NEMA SSL-3 2011, and UL Component certification (E349212), ensuring environmental and safety compliance. The package dimensions are compact, with a length of 23.85 mm and width of 19 mm, allowing seamless integration into existing lighting fixtures.

Delivers a typical luminous flux of 5380 lumens for bright lighting. Operates at a maximum forward current of 2100 mA ensuring robust performance. Features a 19 mm optical source diameter for a compact form factor. Provides a warm white color temperature of 3000K for comfortable lighting ambiance.

Offers a radiant flux of 79W supporting high power applications. Includes a viewing angle of 115° for broad light distribution. Color rendering index (CRI) of 80% for accurate color representation. Constructed with high-quality components meeting multiple international standards including RoHS and UL approvals.

Designed as a drop-in upgrade with SC5 technology for increased efficacy and smaller light emitting surface.

This product is suited for various industrial and commercial uses including architectural lighting, manufacturing facilities, outdoor lighting, and other commercial illumination needs where high lumen output and efficacy are critical.
