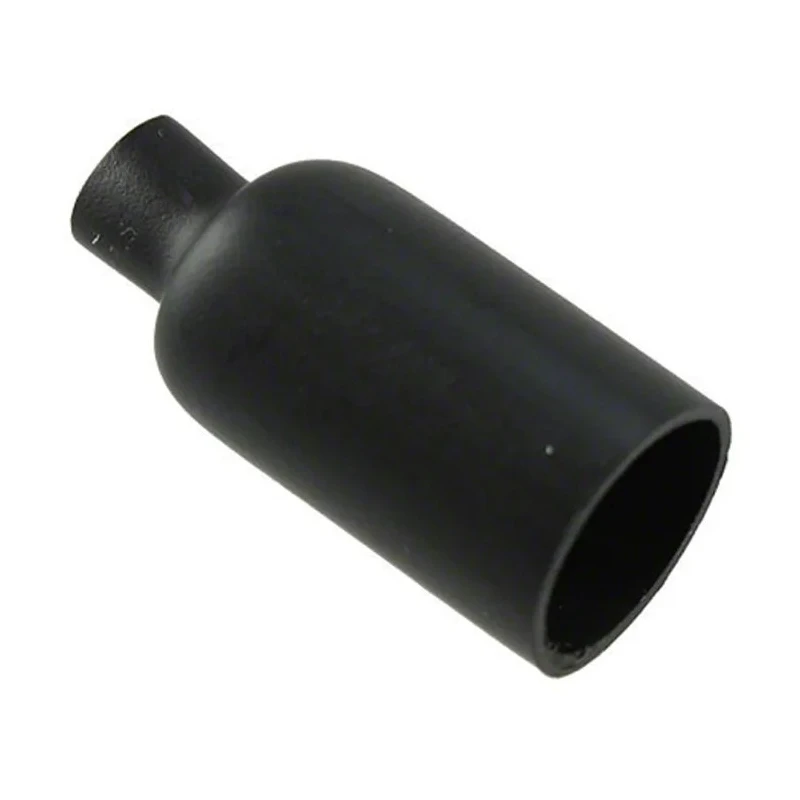

TE Connectivity Heat Shrink End Cap PD Caps Black Polyolefin 6.35 mm PD-CAP-1/4-0
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Material | Polyolefin |
| Colour | Black |
| Model | PD-CAP-1/4-0 |
| Series | PD Caps |
| Maximum Operating Temperature | 110°C |
| Sub Type | End Cap |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL E85381 |
| Number of Breakouts | 1 |
| Shrink Temperature | 125°C |
| Minimum Inside Diameter | 4mm |
| Maximum Shrunk Diameter | 2.03mm |
| Maximum Inside Diameter | 6.35mm |
| Semirigid, encapsulant-lined heat shrink end caps with a shrink ratio of 3 | 1. When the dual wall PD Caps are briefly heated, the outer jacket shrinks while the inner wall flows into voids in the crimp, creating an encapsulated and electrically insulated connection |
Key Features
- Constructed from black polyolefin material for high durability and chemical resistance.
- Operates reliably between -55°C and 110°C for wide temperature tolerance.
- Semirigid, encapsulant-lined design offers rugged protection against abrasion, vibration, and flexing.
- No adhesive backing included, suitable for permanent or temporary wire terminations.
- Maximum inside diameter of 6.35 mm and minimum inside diameter of 4 mm.
- Maximum shrunk diameter of 2.03 mm ensures compact insulated seal.
- Conforms to UL E85381 standard for electrical and safety compliance.
- Manufactured in the Czech Republic with quality assurance.
Product Description
TE Connectivity PD-CAP-1/4-0 is a black polyolefin heat shrink end cap designed for electrical insulation and protection of cable ends with a maximum inside diameter of 6.35 mm and a shrink ratio of 3:1. This semirigid, encapsulant-lined dual wall cap provides an electrically insulated and mechanically robust seal upon heating, where the outer jacket shrinks tightly while the inner wall flows into voids in crimps or wire ends.
Its rugged construction protects against abrasion, vibration, and flexing, making it ideal for industrial, electrical, and automation applications requiring secure cable terminations. The product operates within a temperature range from -55°C to 110°C, ensuring reliability in diverse environmental conditions.
With no adhesive backing, it allows for either permanent or temporary wire termination. The heat shrink process achieves a maximum shrunk diameter of only 2.03 mm, maintaining a compact form factor.
Conforming to UL E85381 standards, this end cap ensures compliance and safety in electrical installations. Produced in the Czech Republic, it meets high manufacturing quality standards.
These heat shrink end caps are widely used in industrial automation, control panels, wiring harness assemblies, and electrical repair to provide enhanced protection and ensure electrical insulation integrity.
Constructed from black polyolefin for durability and chemical resistance. 3:1 shrink ratio offers tight, secure sealing of cable ends. Wide temperature range from -55°C to 110°C supports diverse applications. Semirigid encapsulant lining ensures mechanical protection and electrical insulation.
Provides rugged protection against cable wear, vibration, and flexing. Non-adhesive backing suitable for various termination needs. UL E85381 approved for safety and performance compliance. Explore the TE Connectivity range for reliable, high-performance heat shrink boots and end caps available at EnvMart for industrial and electrical applications.
Explore more products in our Heat Shrink Boot End Cap category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 110°C.
The minimum inside diameter of this heat shrink end cap is 4 mm.
It is constructed from black polyolefin material, which provides high durability and chemical resistance.
This heat shrink end cap has a shrink ratio of 3:1.
The maximum shrunk diameter of this model is 2.03 mm.
It conforms to UL E85381 standards for electrical and safety compliance.
This model operates reliably between -55°C and 110°C.
The semirigid, encapsulant-lined design provides mechanical protection and electrical insulation, ensuring a secure seal.
This heat shrink end cap is widely used in industrial automation, control panels, wiring harness assemblies, and electrical repair.
No, this model does not include adhesive backing, making it suitable for both permanent and temporary wire terminations.
It is manufactured in the Czech Republic, ensuring high manufacturing quality standards.
It offers rugged protection against abrasion, vibration, and flexing, making it ideal for secure cable terminations.
