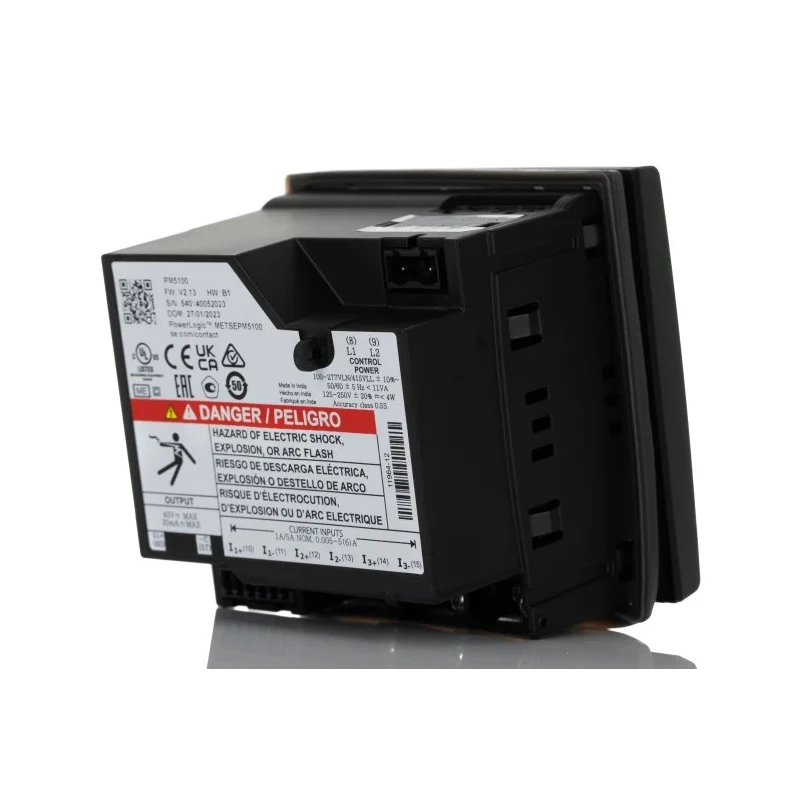

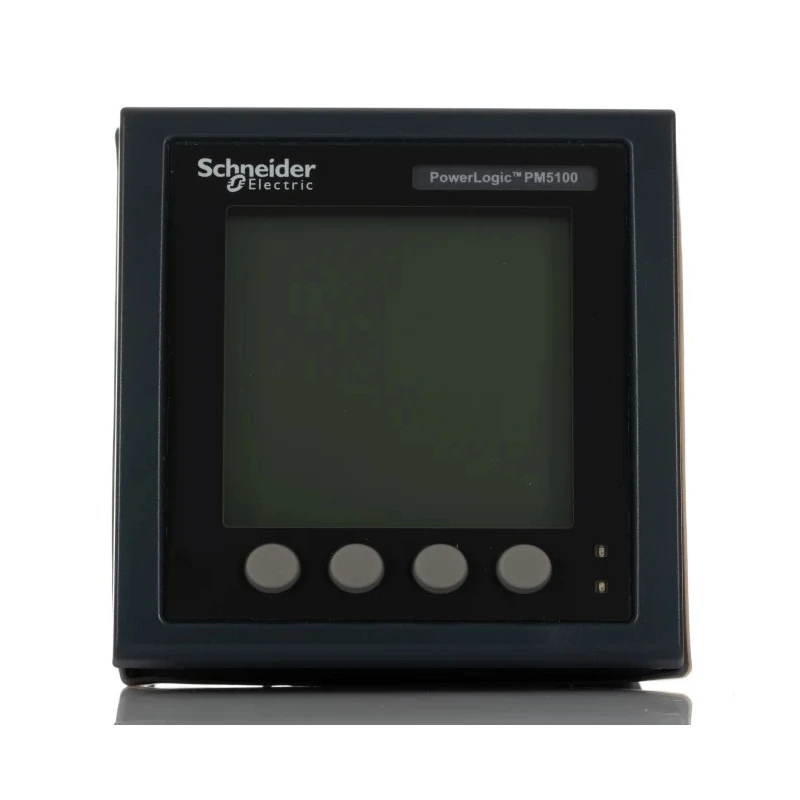

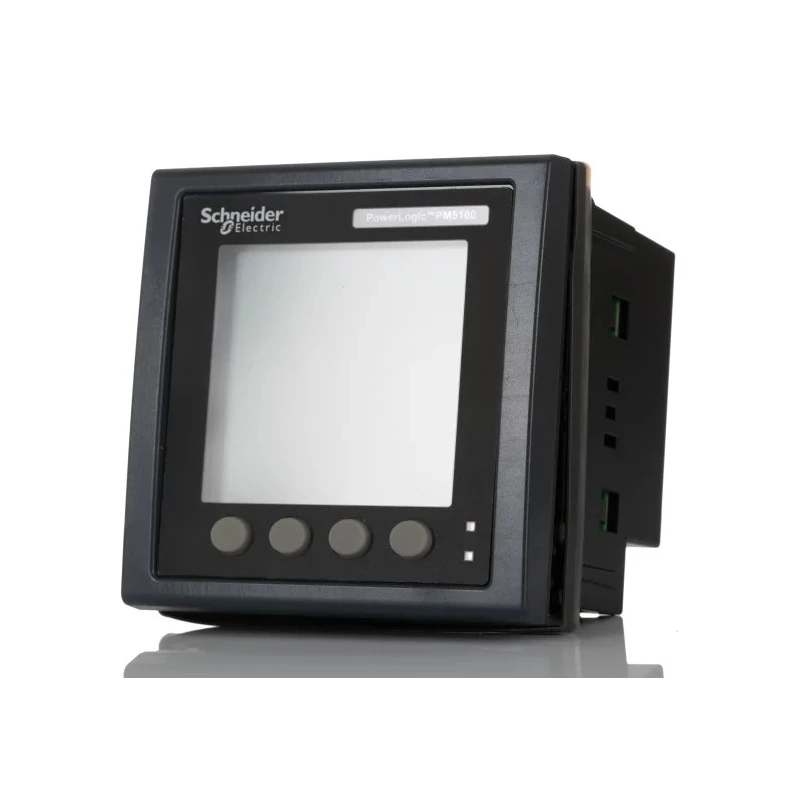

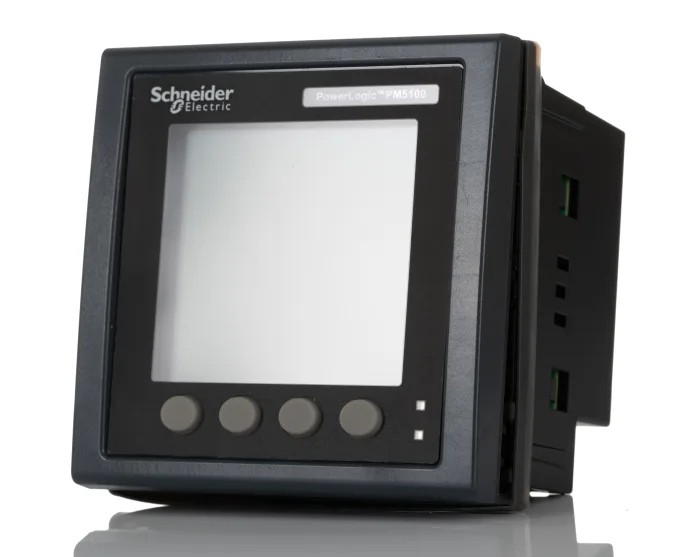

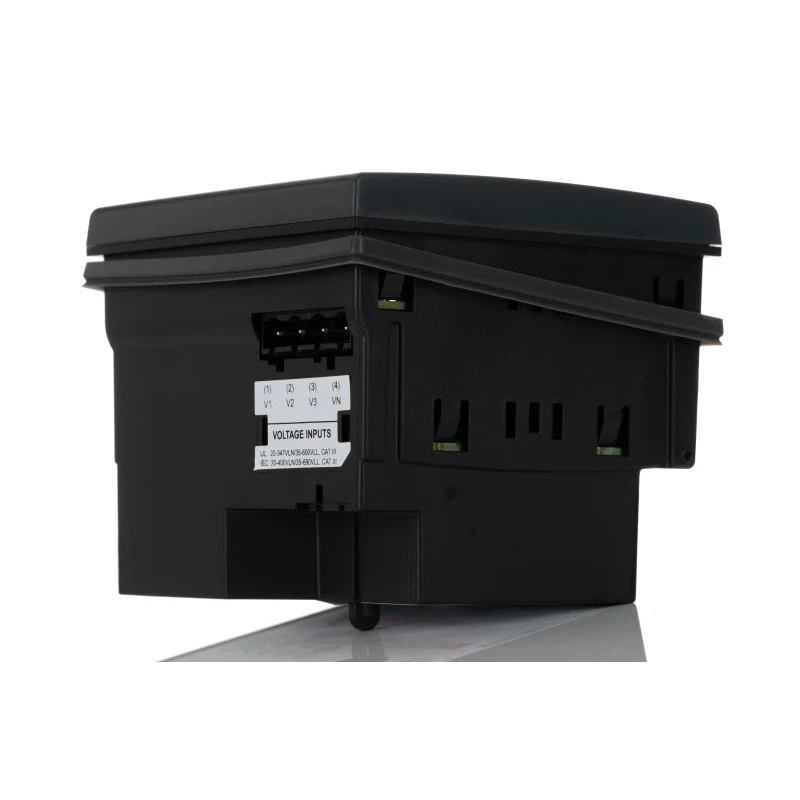

Schneider Electric 3 Phase Digital LCD Power Meter PM5000 Series METSEPM5100 92mm Cutout 0.5% Accuracy India
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LCD |
| Brand | Schneider Electric |
| Model | METSEPM5100 |
| Depth | 90mm |
| Series | PM5000 |
| Maximum Operating Temperature | 70°C |
| Meter Type | Digital |
| Meter Accuracy | ±0.5 % |
| Minimum Operating Temperature | -25°C |
| Digit height | 85mm |
| Number of outputs | 1 |
| Number of Phases | 3 |
| Standards/Approvals | UL, EN, IEC |
| Cutout Height | 92mm |
| Cutout Width | 92mm |
Key Features
- Features a clear LCD display with white LED backlighting for easy reading in low light.
- Compact size of 96mm x 96mm x 72mm saves panel space.
- Withstands operating temperatures from -25°C to 70°C for reliability in harsh environments.
- IP52 rating protects against dust and water sprays.
- Equipped with a 4-button keypad and supports pulse output and 2.5kHz max pulse rate.
- Supports multiple applications including manufacturing, automotive, and process control.
- Easy installation using DIN rail mounting and no tools required.
- Offers multilingual menus and graphical display for user-friendly operation.
Product Description
Schneider Electric METSEPM5100 is a 3-phase digital power meter from the PM5000 series designed for precise and real-time energy monitoring in industrial and commercial settings. Featuring a digital LCD display measuring 67 x 62.5 mm with white LED backlighting, it provides clear visibility even in low-light conditions.
The meter has compact dimensions of 96 mm height, 96 mm width, and 72 mm depth, making it highly space-efficient. It can operate across a wide temperature range from -25°C to 70°C and is rated IP52 for resistance against dust and water sprays less than 15° angle, ensuring robust performance in demanding environments.
This model includes a 4-button keypad for easy navigation and supports a 2.5 kHz maximum pulse rate output. It is designed for various industrial applications such as manufacturing plants, automotive industries, and process control systems. DIN rail mounting facilitates quick and tool-free installation.
The meter supports monitoring of all three phases simultaneously along with neutral and ground. Its intuitive graphical menus are available in 8 languages and include helpful icons, making the meter straightforward to configure and use.
An integrated configurable alarm system allows the power meter to trigger safety relays in the event of electrical faults, enhancing operational safety and equipment protection. Clear LCD display with white LED backlight for low light visibility.
Compact 96 x 96 x 72 mm dimensions for panel space efficiency. Wide operating temperature: -25°C to 70°C. IP52 dust and water spray resistant rating. 4-button keypad with 2.5 kHz pulse output. Suitable for manufacturing, automotive, and process control applications.
Tool-free DIN rail mounting installation. Multilingual menus with graphical icons for ease of use. Configurable alarm system for fault detection. Certified to UL, EN, and IEC international standards.
The Schneider Electric METSEPM5100 digital power meter is ideal for energy management, tenant billing, cost allocation, and power quality assessment in industrial, commercial, and manufacturing environments. Its advanced features and sturdy design make it reliable for continuous monitoring and control of electrical networks.
Explore more high-quality Energy Meters and digital measurement instruments at EnvMart to optimize your energy management and monitoring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The METSEPM5100 has an accuracy of ±0.5%.
This model has dimensions of 96 mm in height, 96 mm in width, and 72 mm in depth.
It operates within a temperature range of -25°C to 70°C.
It features an LCD display with white LED backlighting for visibility in low light conditions.
Installation is tool-free using DIN rail mounting, making it quick and easy.
This model is suitable for various applications including manufacturing, automotive, and process control.
It has an IP52 rating, which protects against dust and water sprays at less than a 15° angle.
This power meter monitors all three phases simultaneously, along with neutral and ground.
It supports a maximum pulse rate output of 2.5 kHz.
It is certified to UL, EN, and IEC international standards.
It includes multilingual menus and a graphical display for user-friendly operation.
The cutout size required is 92 mm in height and 92 mm in width.
