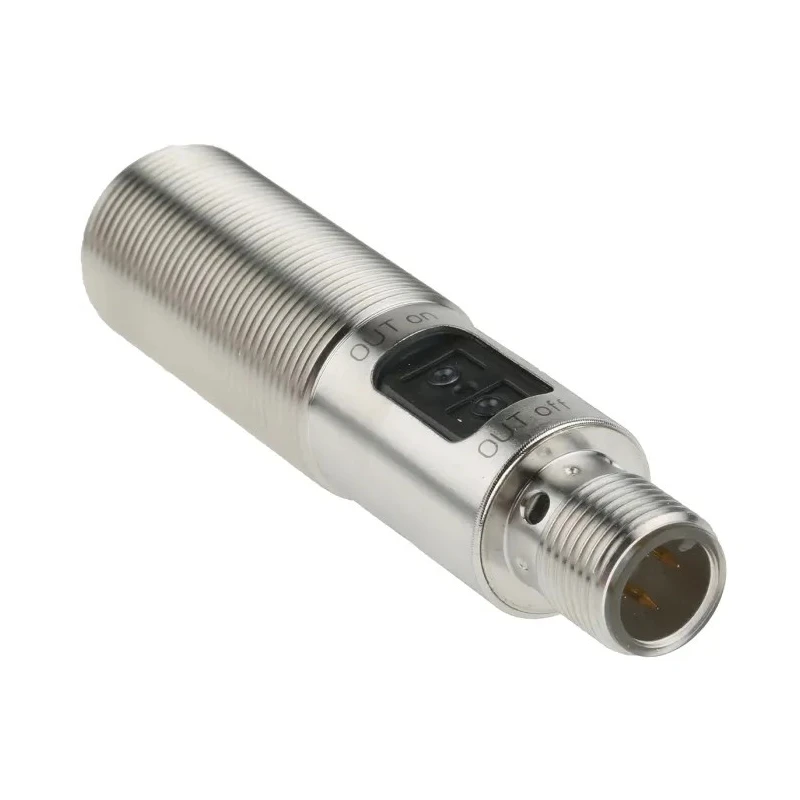

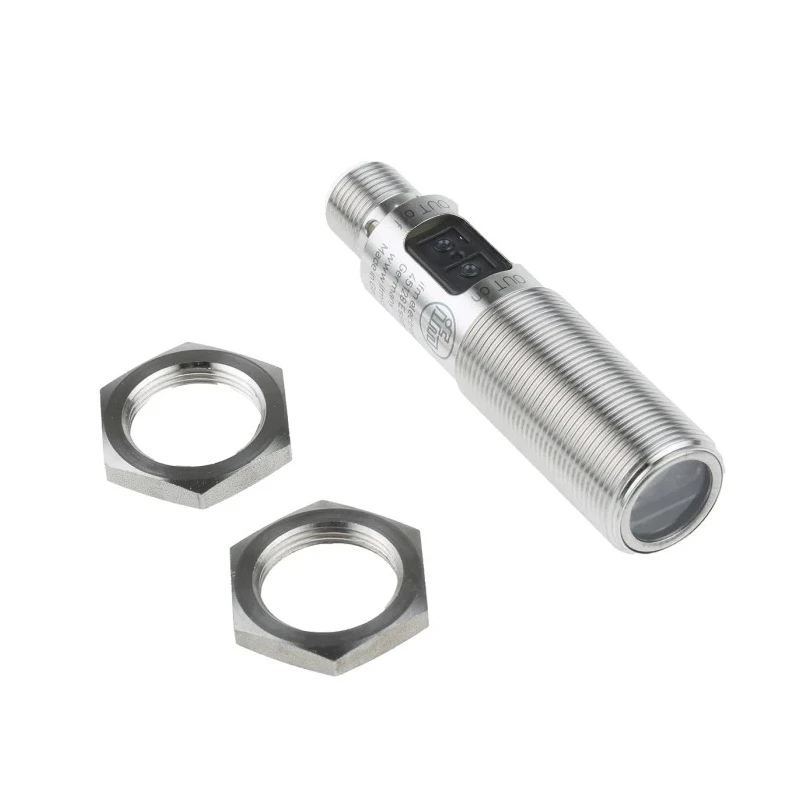

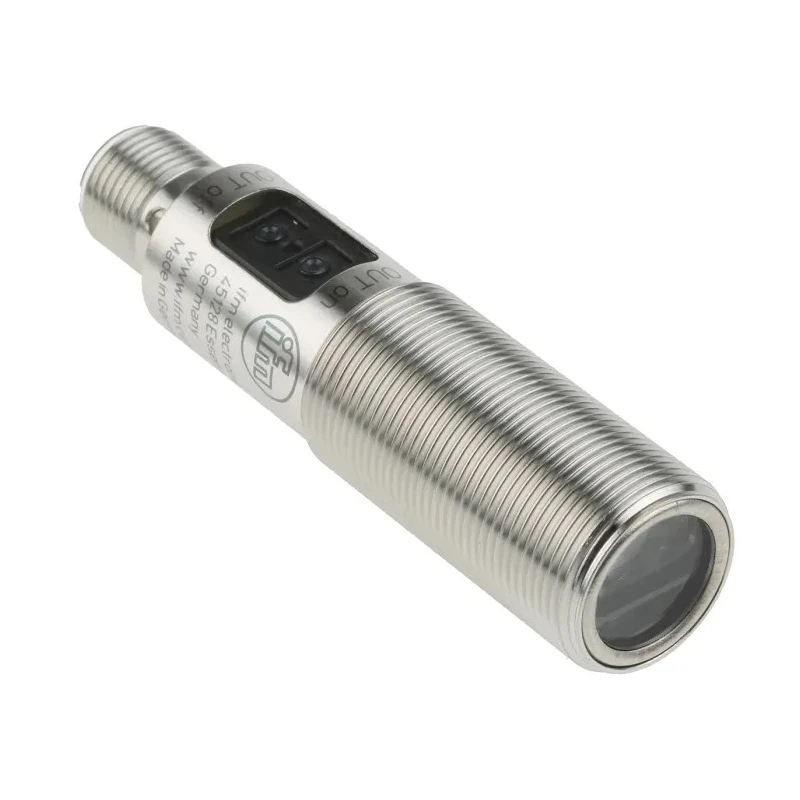

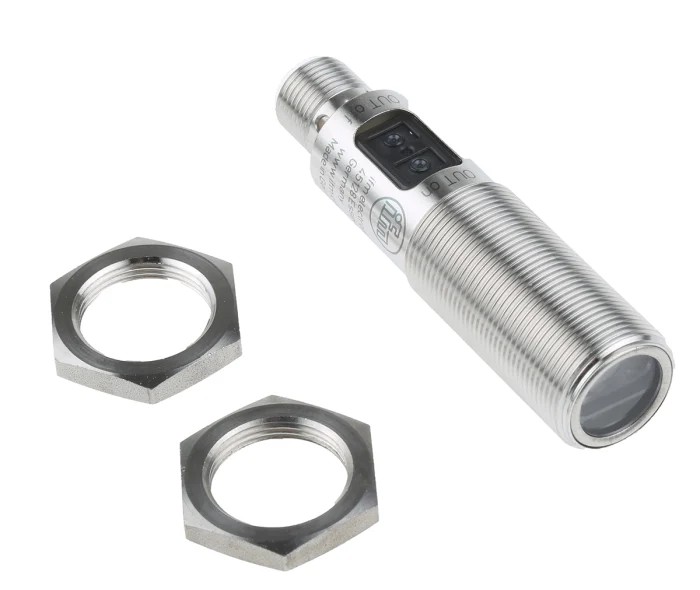

ifm electronic Diffuse Photoelectric Sensor, Barrel Style, Detection Range 15 mm to 300 mm, PNP Output, IP67 OGH500
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ifm electronic |
| Light Source | LED |
| Detection range | 15 mm → 300 mm |
| Model | OGH500 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25mA |
| DetectIon Type | Diffuse |
| Terminal type | Wire |
| Maximum dc Voltage | 36V dc |
| Standards/Approvals | cULus, UL |
| Materials Detected | Glass |
| Sensor Style | Barrel |
Key Features
- Offers precise diffuse detection from 15 mm to 300 mm.
- Equipped with PNP output type for easy integration into control systems.
- Robust stainless steel housing ensures durability and protection.
- Rated IP67 for high ingress protection in harsh environments.
- Uses LED as light source providing reliable sensing performance.
- Operates safely within temperature range of -25°C to 80°C.
- Maximum DC voltage operation up to 36V DC.
- Maximum current rating of 25 mA suitable for industrial control applications.
Product Description
Ifm electronic OGH500 diffuse Photoelectric Sensor is a precision device designed for non-contact detection and positioning of objects in industrial environments. This barrel style sensor features a robust stainless steel housing with an M18 barrel shape and operates within a detection range from 15 mm to 300 mm. The sensor uses LED as its light source and is designed for detecting materials such as glass with high reliability.
The sensor output is a PNP type, compatible with many automation and control gear systems. It supports a maximum DC voltage of 36V and a current up to 25 mA, making it suitable for various industrial sensor applications. Its IP67 rating certifies it against dust ingress and water immersion, ensuring reliable operation in harsh conditions.
Operating temperatures range from -25°C to 80°C, supporting use in both cold and warm environments. It mounts conveniently via its cable type mount, simplifying integration into existing systems. The stainless steel housing material adds durability and resistance against mechanical impacts and corrosion.
This sensor complies with recognized safety approvals such as cULus and UL, ensuring adherence to industry standards. It is particularly suited for applications in automation, manufacturing, industrial controls, and glass material detection where precise object detection is critical.
Offers precise diffuse detection from 15 mm to 300 mm. Equipped with PNP output type for easy integration into control systems. Robust stainless steel housing ensures durability and protection. Rated IP67 for high ingress protection in harsh environments.
Uses LED as light source providing reliable sensing performance. Operates safely within temperature range of -25°C to 80°C. Maximum DC voltage operation up to 36V DC. Maximum current rating of 25 mA suitable for industrial control applications.
Designed with cable mount type for easy installation. Specifically detects glass and similar materials effectively.
With its combination of rugged design, precise detection capability, and industrial certification, the ifm electronic OGH500 is ideal for demanding industrial automation, manufacturing, and quality control use cases. Browse the EnvMart catalog for more specialized sensors and industrial automation products from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OGH500 sensor has a detection range of 15 mm to 300 mm.
It features a PNP output type, allowing for easy integration into control systems.
This sensor is rated IP67, providing high ingress protection against dust and water immersion.
It is specifically designed to detect glass and similar materials effectively.
The maximum operating temperature is 80°C, while the minimum is -25°C.
The OGH500 mounts via a cable type, simplifying integration into existing systems.
It supports a maximum DC voltage of 36V.
The sensor features a robust stainless steel housing, ensuring durability and protection.
The maximum current rating is 25 mA, suitable for industrial control applications.
It uses an LED as its light source, providing reliable sensing performance.
The OGH500 complies with recognized safety approvals such as cULus and UL.
The sensor is manufactured in Germany.
