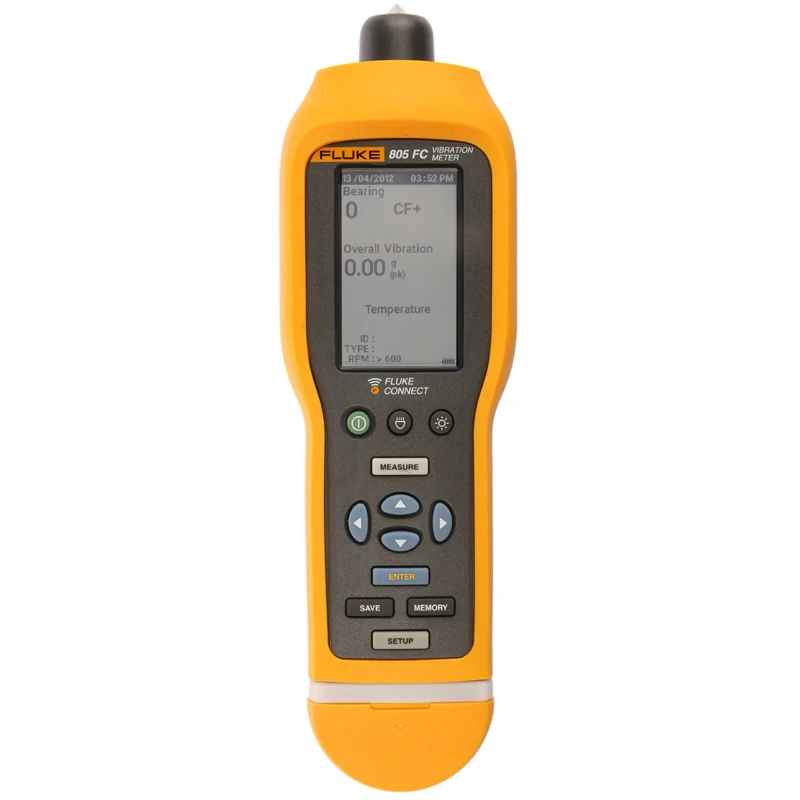

Fluke Handheld Diagnostic Vibration Meter for Acceleration Displacement Velocity with 100g Max Acceleration FLUKE 805 FC

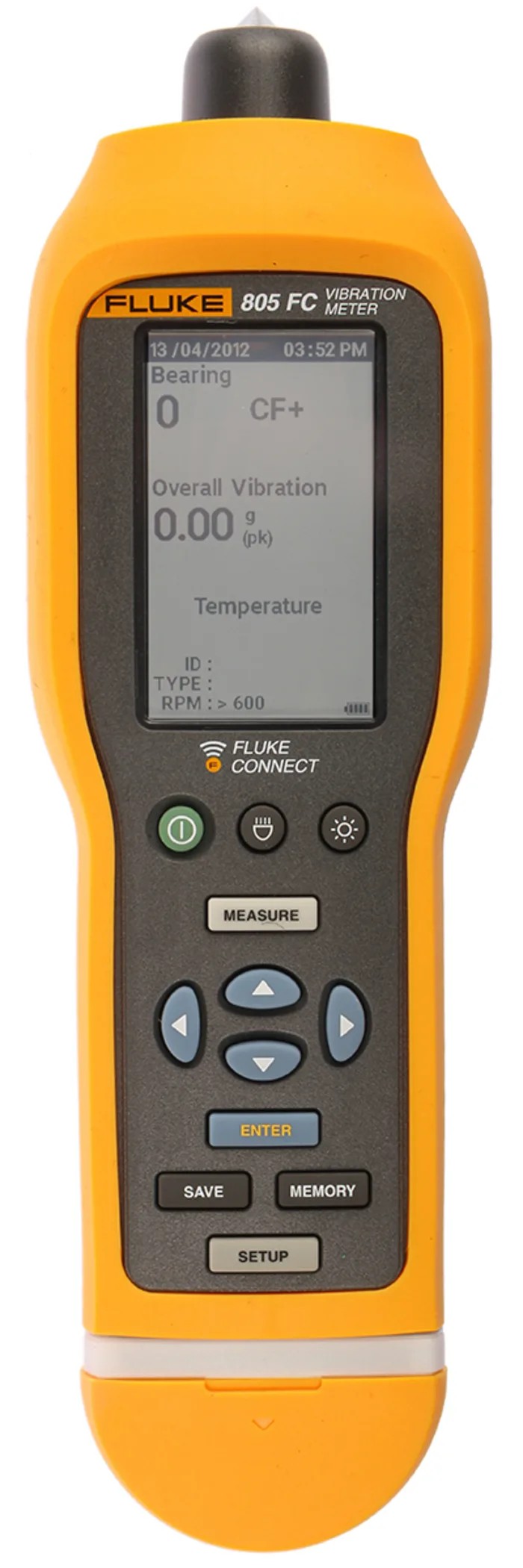

Fluke FLUKE 805 FC handheld diagnostic vibration meter is a precision instrument designed for frontline mechanical troubleshooting in industrial environments. This device measures acceleration, velocity, and displacement with a maximum acceleration capacity of 100g, providing severity-scaled vibration readings and bearing condition assessments utilizing high-frequency sensing.

The meter features a broad vibration bandwidth of 10Hz to 1000Hz for comprehensive screening sensitivity and an advanced CF+ high-frequency analysis range from 4000Hz to 20000Hz that enhances detection of bearing faults. Capable of storing up to 3500 measurements, it supports extended inspection cycles with onboard memory and USB interface for convenient data export to Excel for trend analysis.

Fluke FLUKE 805 FC operates on two standard AA batteries, enabling approximately 250 measurements per battery set, and functions reliably in environmental temperatures ranging from -20°C to 50°C. The device complies with electromagnetic standards EN 61000-4-3 (radiated immunity) and EN 61000-4-2 (electrostatic discharge), ensuring operational robustness in industrial settings.

Temperature during inspections is captured via a spot infrared sensor with a range of -20°C to 200°C and an effective focal length of 3.8 cm, providing additional diagnostic insight. It supports connection of an external accelerometer through an SMB connector, extending its usability to challenging measurement locations with frequency responses between 10Hz and 1000Hz.

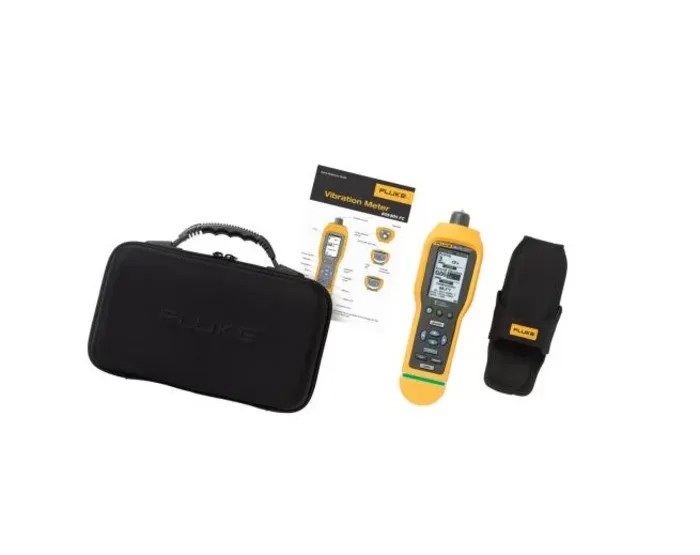

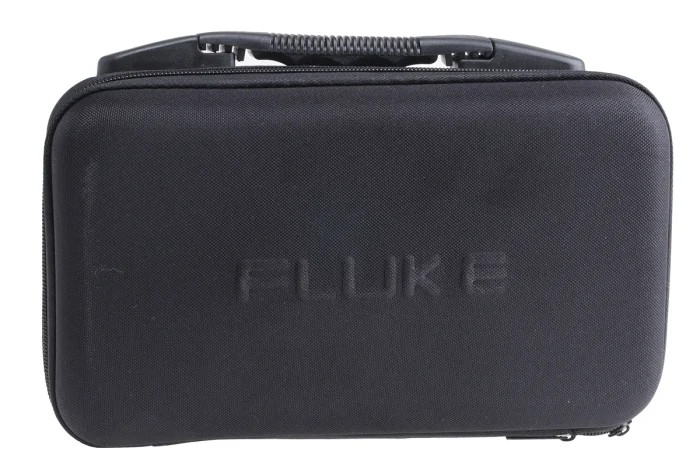

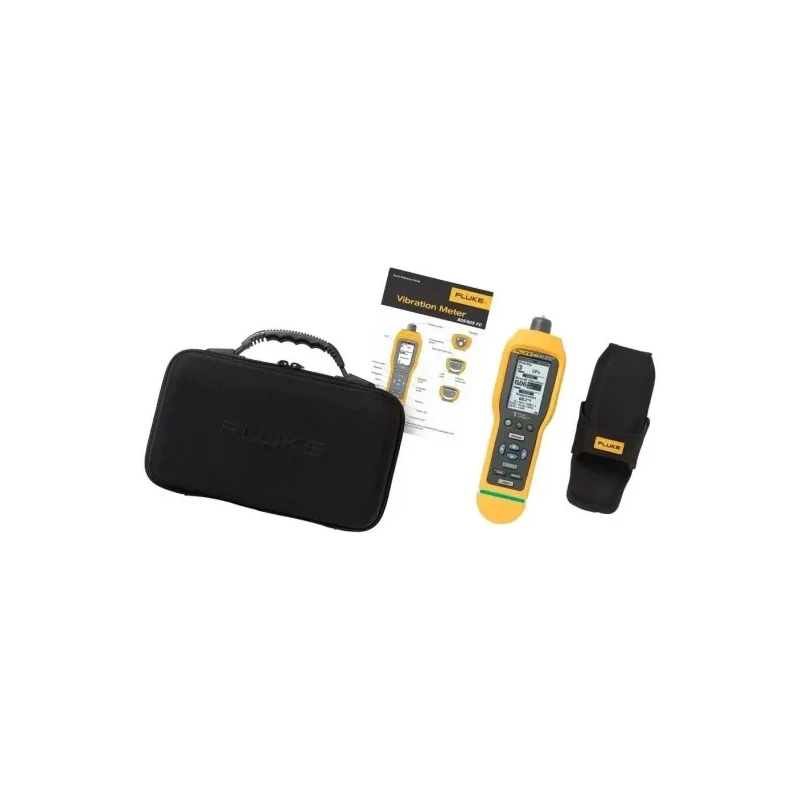

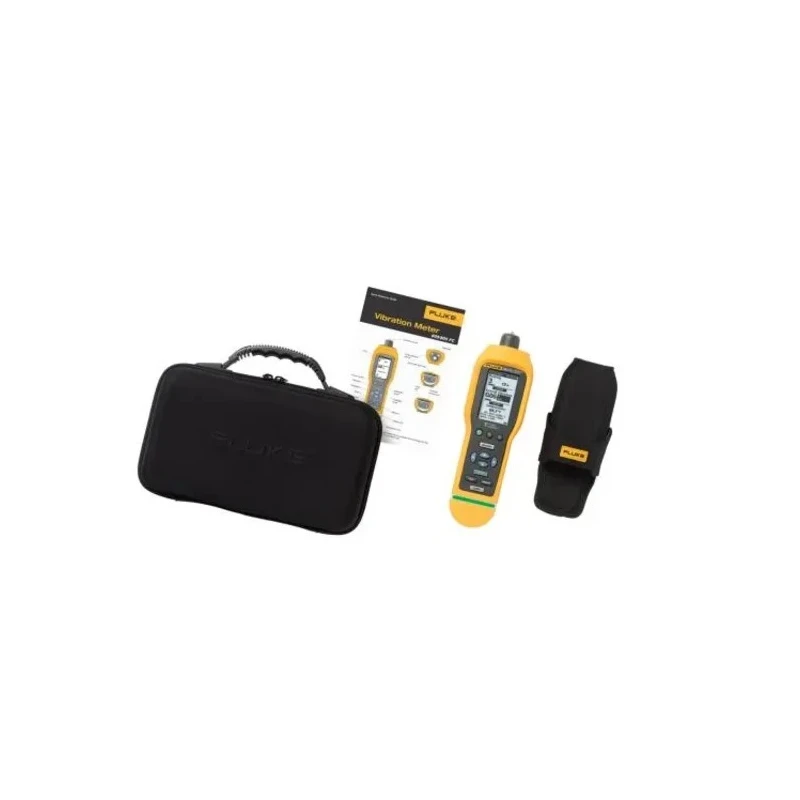

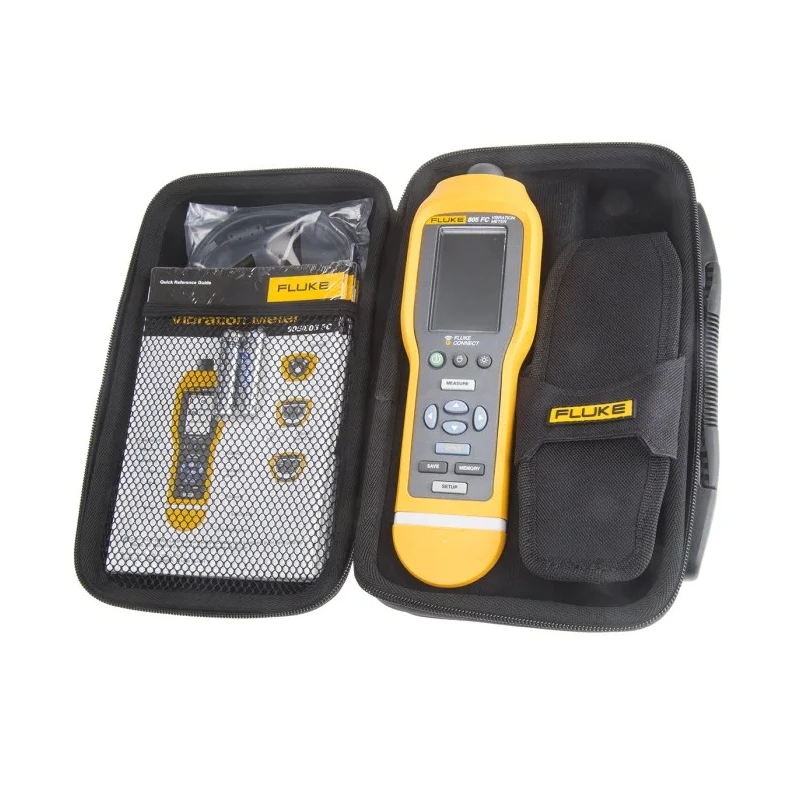

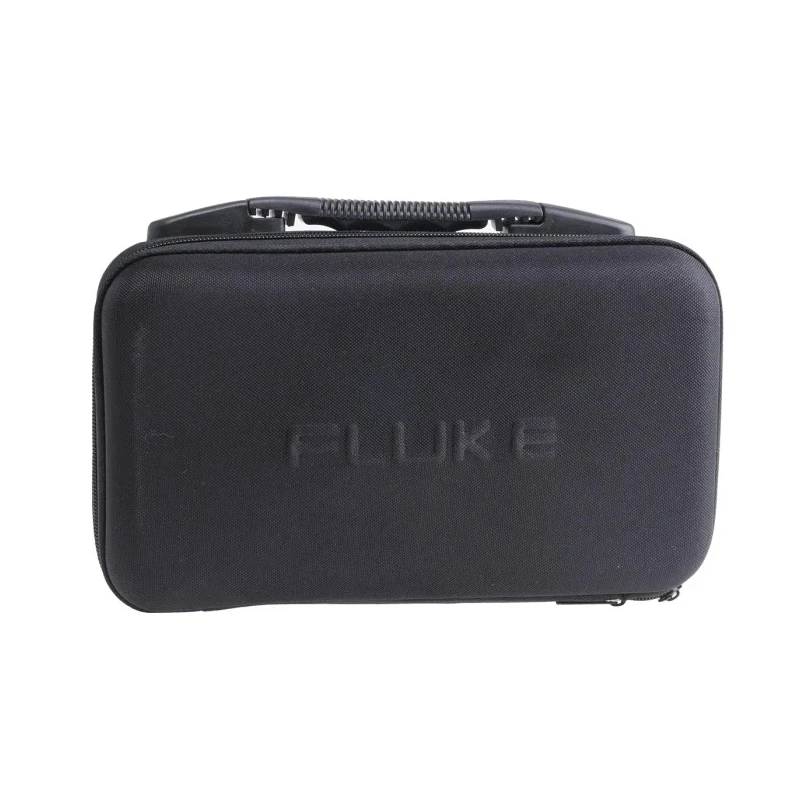

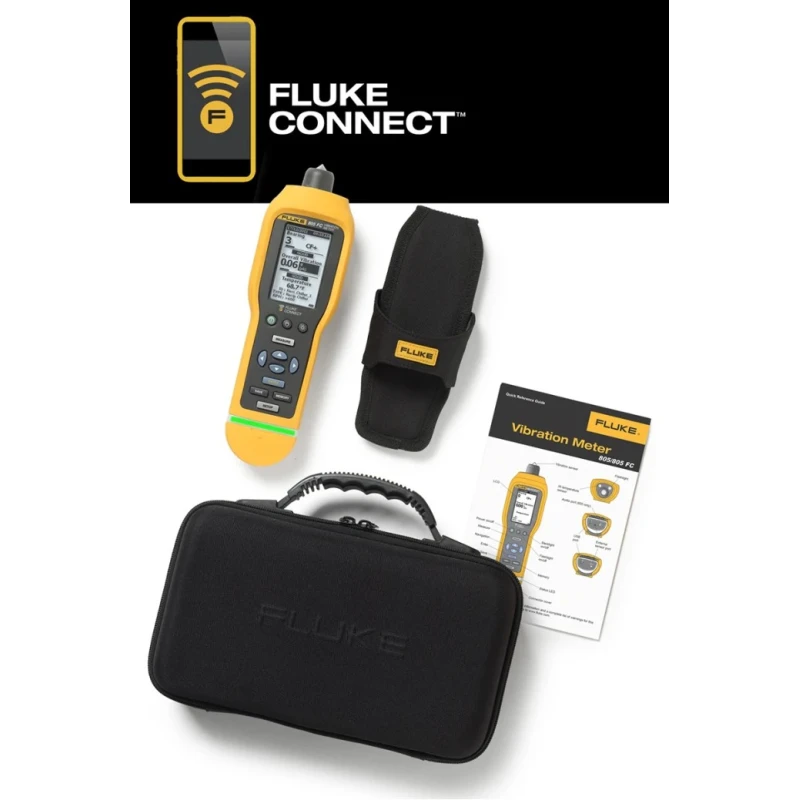

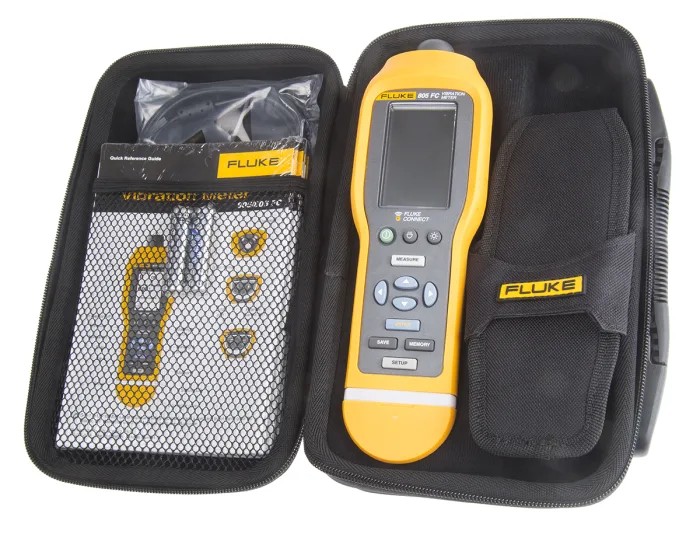

Constructed with durable materials, the Vibration Meter features IP54 ingress protection against dust and water and withstands a 1 meter drop test to tolerate field conditions. It is supplied with a USB cable, a protective storage case, a belt holster, a quick reference guide, and 2 AA batteries for immediate use.

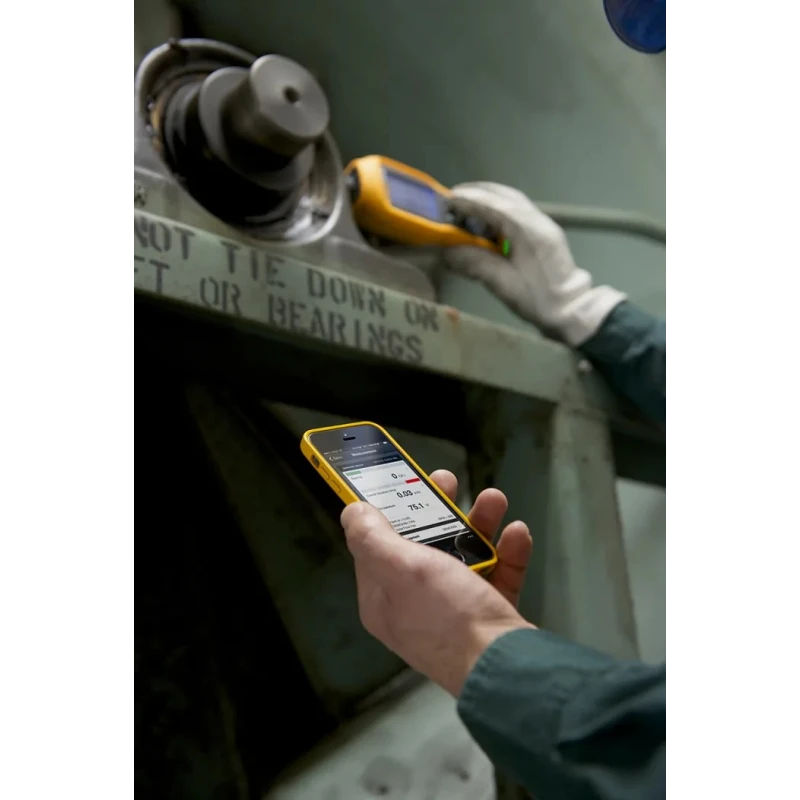

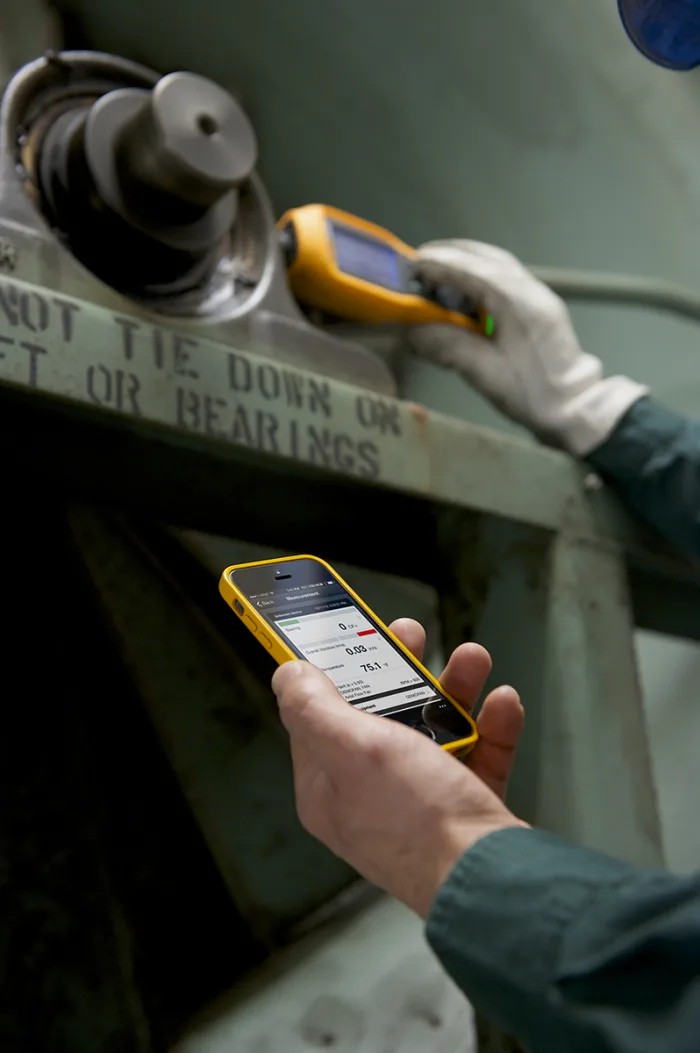

Applications include routine machinery maintenance on centrifugal pumps, gearboxes, motor bearings, compressors, blowers, fans, and cooling tower drives. This versatile device is essential for ensuring reliable operation and predictive maintenance in industrial, manufacturing, and HVAC sectors.

Measures vibration in acceleration, displacement, and velocity parameters. Wide measurement bandwidth with advanced bearing fault detection via high-frequency CF+ analysis. Large onboard memory and USB export capability enables comprehensive trend analysis.

Operates effectively across broad temperature range with rugged design for industrial environments. Supports external accelerometer for enhanced measurement versatility. Accurate temperature measurement through integrated infrared sensor.

IP54 protection and drop test certified for durability in harsh conditions. Includes necessary accessories for immediate deployment. Suitable for wide range of industrial and mechanical maintenance applications. Explore other precision measurement tools in the Measuring & Testing Instruments category at EnvMart.
