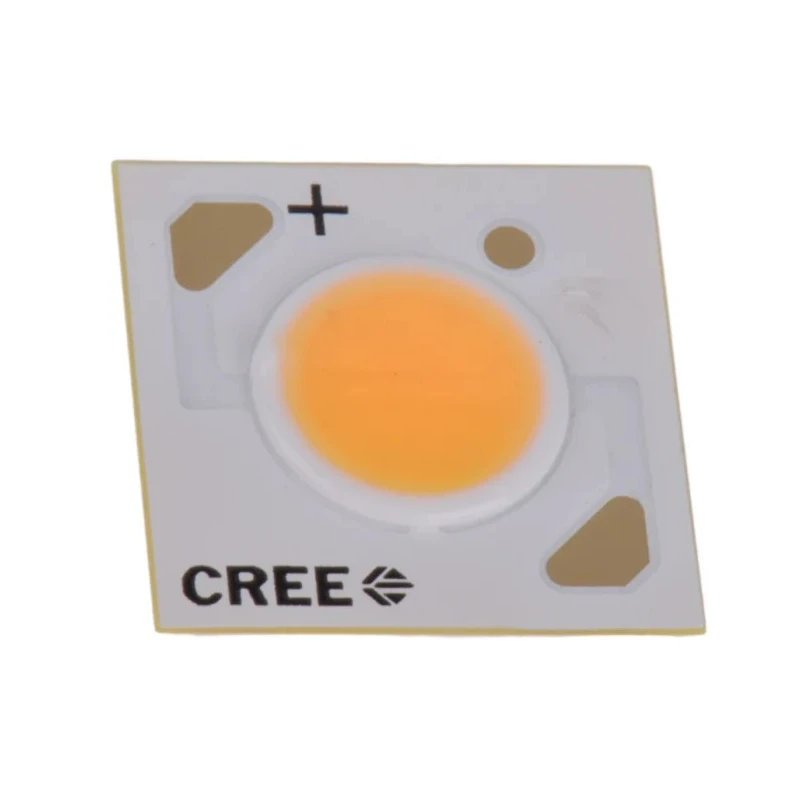

Cree LED XLamp CXA1304 White CoB LED 4000K High Luminous Flux 527lm 9V Forward Voltage CXA1304

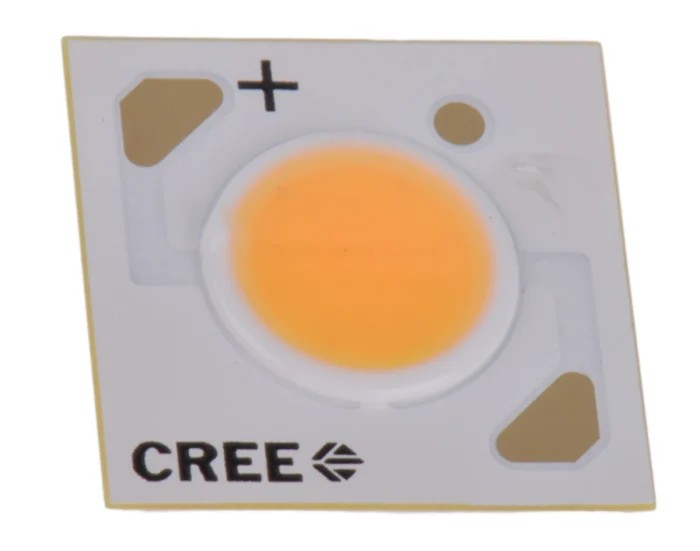

Cree LED CXA1304 White CoB LED 4000K is a high-performance LED array from Cree's XLamp series, offering a compact, uniform emitting surface with a typical luminous flux of 527 lumens and operating at 9 volts forward voltage.

This LED integrates multiple dies into a single package providing high light output and energy efficiency suitable for both directional and non-directional lighting applications in industrial, commercial, and residential lighting systems.

The device is designed with top-side solder connections and thermocouple attach points for easy integration and thermal management in luminaire designs. Its wide 115° viewing angle allows for broad area illumination, ideal for lighting retrofit and new luminaire manufacturing.

The CXA1304 LED complies with important industry standards including UL Component (E349212), REACH, RoHS, and ANSI/UL 8752, ensuring reliability and environmental safety in use. Applications include architectural lighting, retail displays, and task lighting where high lumen output, reliability, and compact size are critical.

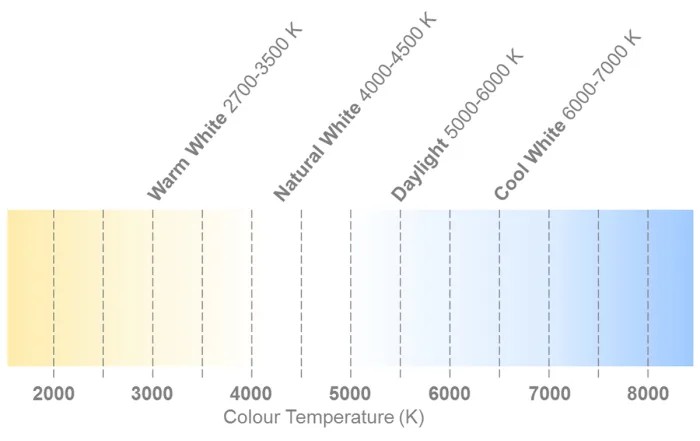

The LED offers a luminous flux of 527lm delivering bright white light at 4000K colour temperature. The maximum forward current is rated at 1000mA enabling high power operation. The optical source diameter of 6mm facilitates tight beam control and uniformity.

Packaged in trays, it supports efficient assembly and handling. The wide viewing angle of 115 degrees supports versatile lighting designs. Forward voltage is 9V for compatibility with various LED drivers. Meets multiple certifications including UL Component, RoHS, and REACH, complying with global safety and environmental standards.

This product is supplied new and is suitable for electronic manufacturers, lighting product developers, and suppliers requiring high-quality LED components. Explore the full range of Cree LED Lighting Components at EnvMart for advanced lighting solutions.
