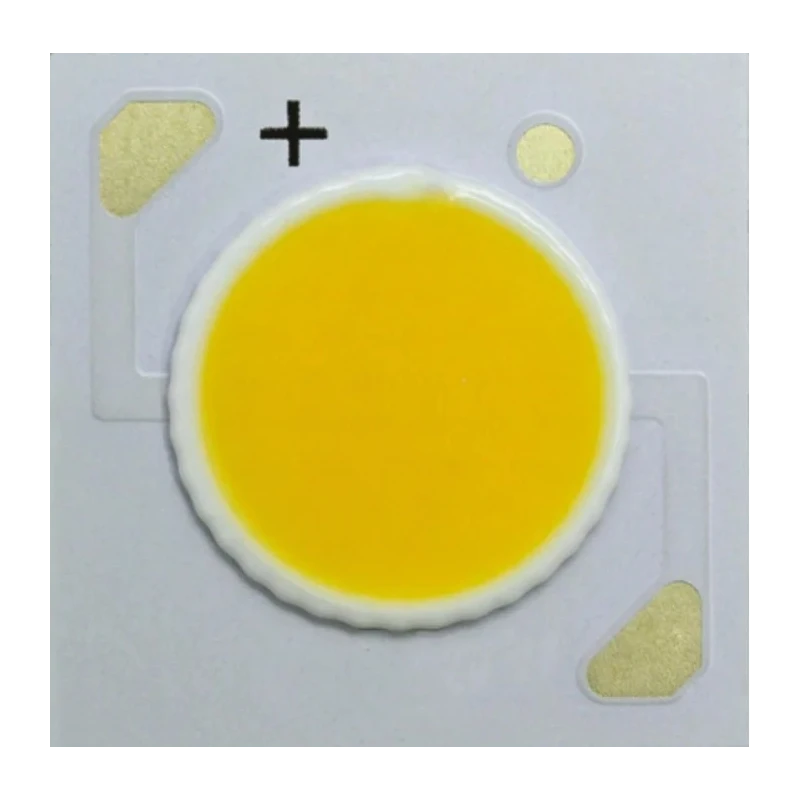

Cree LED XLamp CXA1512 White CoB LED 4000K, 36V Forward Voltage, 1710lm Typical Luminous Flux CXA1512

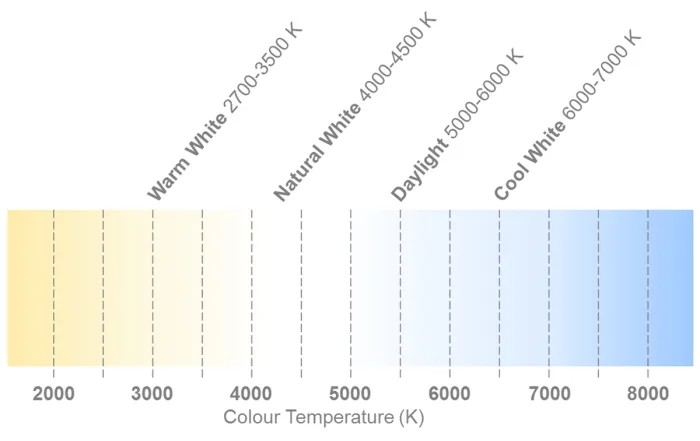

Cree LED CXA1512 White CoB LED 4000K (model CXA1512) is a high-efficiency chip-on-board LED array featuring a 9mm optical source diameter and a typical luminous flux of 1710 lumens. It operates at a forward voltage of 36V and offers a radiant flux of 24000mW, making it an ideal solution for a variety of lighting applications including industrial, commercial, and residential environments. The LED emits neutral white light at 4000K color temperature, providing bright and consistent illumination.

The XLamp CXA1512 series utilizes lighting class reliability to ensure long service life and optimal performance. Its small uniform emitting surface allows for both directional and non-directional lighting applications such as lamp retrofits, downlights, luminaire replacements, and GU10 LED bulbs. It features a wide 115-degree viewing angle that enables broad coverage with excellent light distribution.

Advanced features include top-side solder connections for ease of assembly and a thermocouple attach point for thermal management. The product is available in 2 step and 4 step color consistency bins, meeting stringent industry standards including UL (E349212), REACH, NEMA SSL-3 2011, and RoHS compliance. Drive current supports up to 1200mA at 18V or 600mA at 37V, providing flexibility in application design. The automotive standard is not applicable to this model.

This LED array is manufactured in China and delivered in a tray packaging format. Its compact and efficient design makes it suitable for a wide range of LED lighting components in industrial, commercial, manufacturing, and laboratory lighting solutions.

High-flux multi-die LED array with lighting class reliability. Small 9mm optical source diameter for focused light emission. Neutral white light emission at 4000K color temperature. 36V forward voltage with options for 18V or 37V drives.

Radiant flux rated at 24000mW for bright illumination. Wide 115-degree viewing angle for broad light spread. Top-side solder connections and thermocouple attach point for ease of installation. Compliant with UL, REACH, NEMA SSL-3 2011, and RoHS standards.

Delivered in tray packaging for safe handling. Explore more LED Lighting Components and arrays on EnvMart for industrial and commercial lighting needs.
