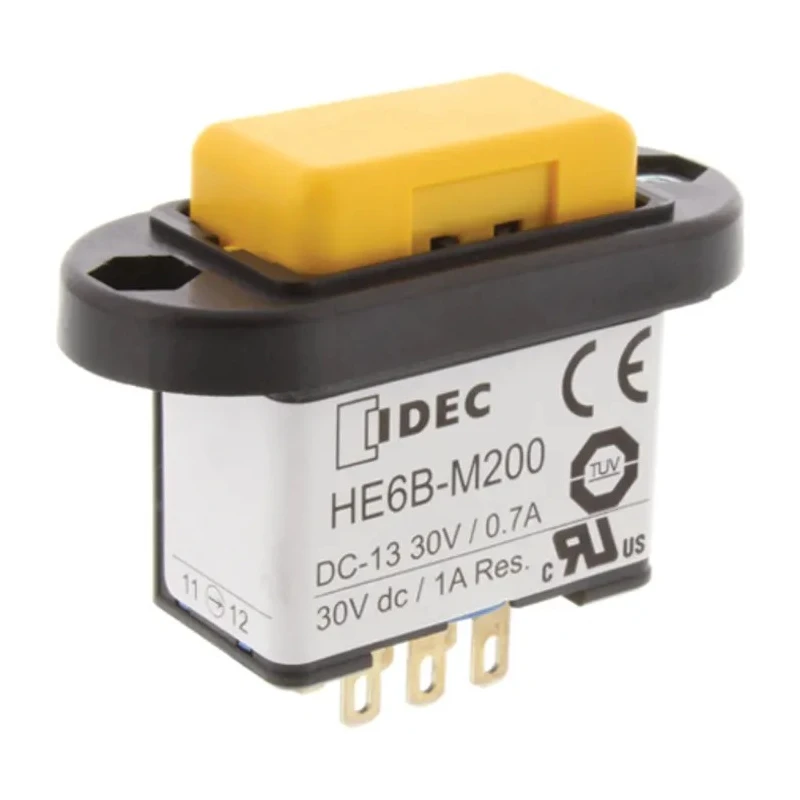

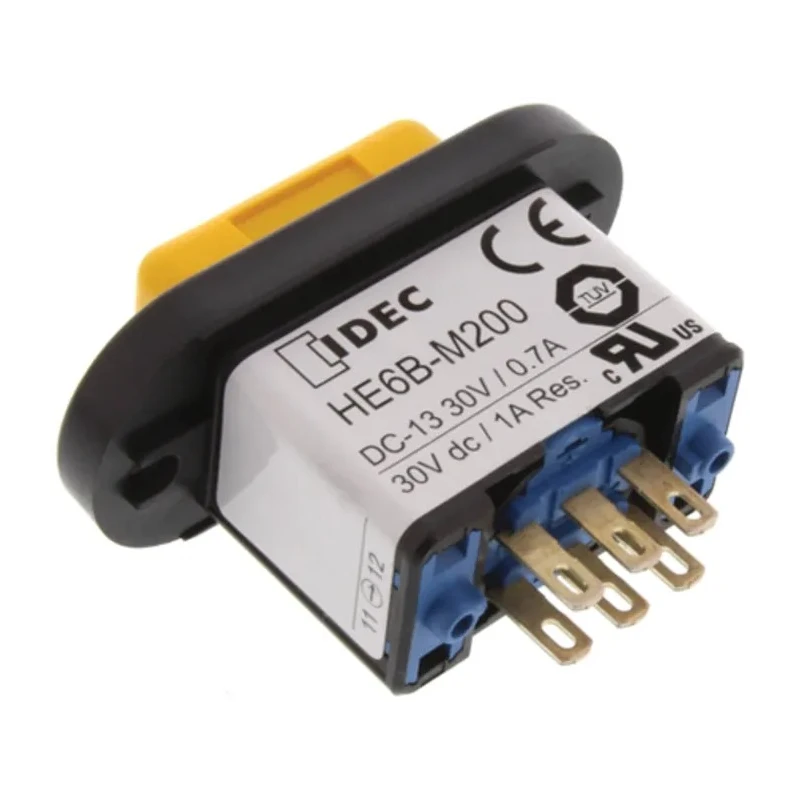

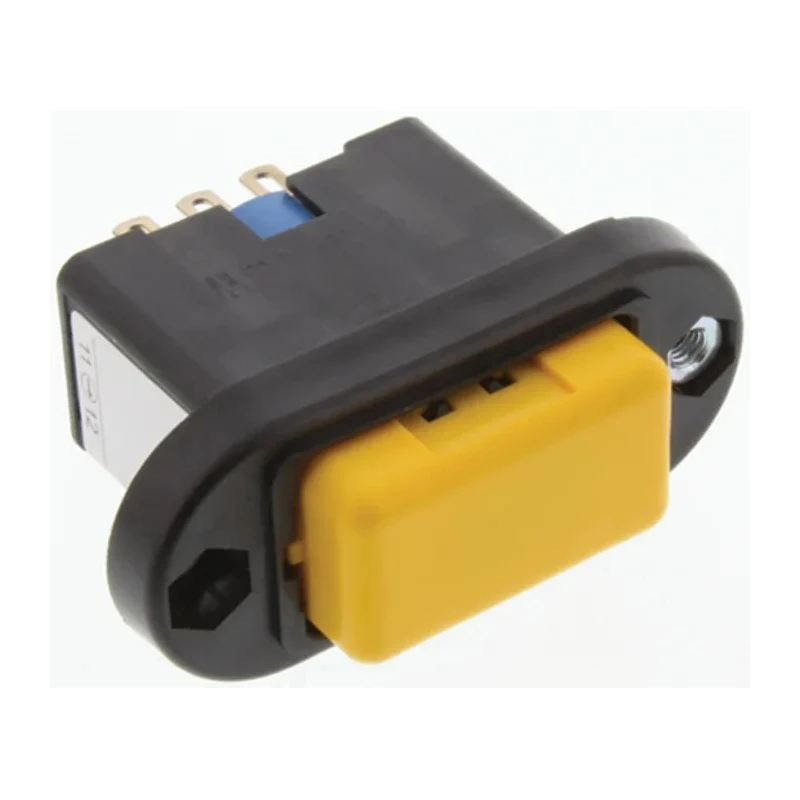

Idec HE6B Series Safety Enabling Switch 3 Position DPDT IP65

Idec HE6B-M211 Safety Enabling Switch is a high-quality industrial control switch featuring a 3 position Off-On-Off mechanism with DPDT contact configuration and IP65 environmental protection. It is engineered for use as an enabling switch in manual robotic control, providing a secure panic release function ensuring operator safety by preventing contact closure when transitioning between Off positions.

This enabling switch is designed for rigorous industrial environments with a mechanical life expectancy of 100,000 operations. Its IP65 rating, combined with a fitted rubber cover, protects against dust and water ingress, making it suitable for demanding applications such as manufacturing automation and safety control systems.

The solder terminal type enables reliable electrical connections supporting a contact current up to 1 Amp. The switch operates reliably within a temperature range of -25°C to 60°C, accommodating various ambient conditions in industrial and automation settings.

Dimensions of 32 mm length, 47.7 mm width, and 22 mm depth allow compact installation within control panels and robotic machinery. This product is compliant with international safety standards including IEC60947-5-1, EN60947-5-1, UL508, CSA C22.2 No.14, ISO10218-1 among others, offering assured safety and performance benchmarks.

Manufactured in Japan, the Idec HE6B-M211 ensures superior build quality and durability. It is ideal for industries requiring robust safety enabling switches such as industrial automation, laboratory automation, manufacturing, and robotics applications.

The switch has a 3-position Off-On-Off operation for safe enabling and disabling. Double Pole Double Throw (DPDT) contact configuration suits safety control applications. Rated IP65 for dust-tight and water protection, ideal for industrial environments.

Switch contact current rated at 1 Amp for moderate electrical loads. Equipped with solder terminal type for secure connections. Designed to operate between -25°C and 60°C, suitable for varied ambient conditions. Mechanical lifespan of 100,000 operations ensures durability in industrial settings.

Compact dimensions: length 32 mm, width 47.7 mm, depth 22 mm for ease of integration. Complies with multiple international standards including IEC, EN, UL, and ISO relevant to safety switches. Manufactured in Japan, ensuring high-quality build and performance.

For professional industrial safety control solutions, browse Idec branded Safety Enabling Switches on EnvMart for trusted quality and compliance.
