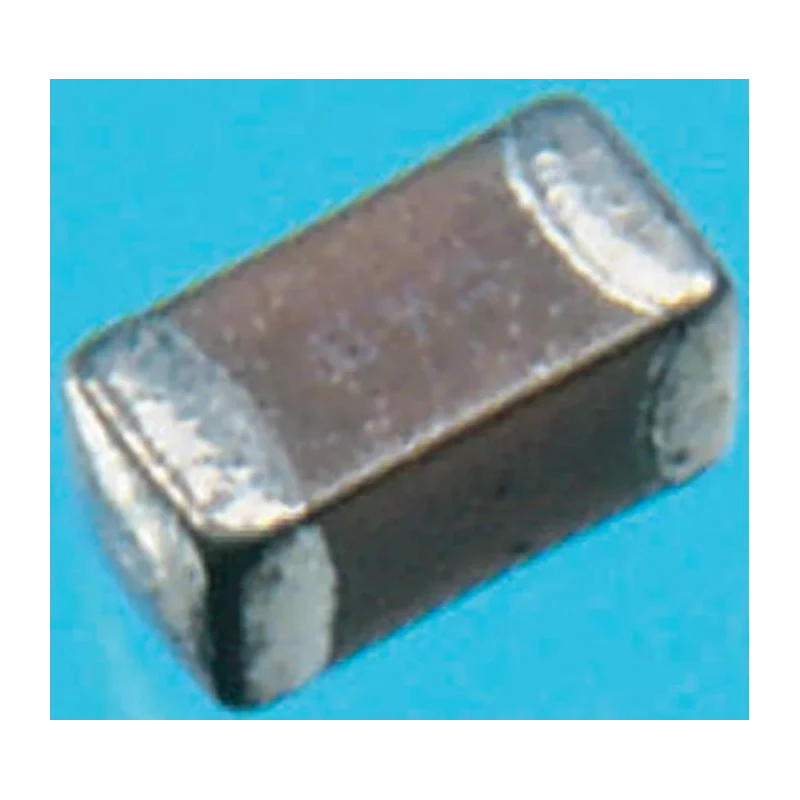

KEMET 22 nF Multilayer Ceramic Capacitor 50V dc ±5 % Tolerance Surface Mount 0805 Case C0G Dielectric C0805C223J5GACTU

KEMET C0805C223J5GACTU is a 22 nF Multilayer Ceramic Capacitor designed for surface mounting in electronic circuits. It features a voltage rating of 50V dc and a capacitance tolerance of ±5 % which makes it suitable for precision applications. The 0805 package size with dimensions Length 2mm, Width 1.25mm, and Height 1.1mm facilitates high-density PCB designs.

This capacitor employs C0G dielectric material, known for its ultra-stable and low loss characteristics, providing excellent performance in critical signal paths. The stacked construction enhances reliability while the termination utilizes nickel barrier plating covered by tin solder ensuring good solderability and long-term stability.

Operating within a temperature range from -55°C minimum to 125°C maximum, this component is suitable for demanding environments. The capacitor meets multiple industry standards such as J-STD-020, EIA 624, EIA 481, IPC-7351, and EIA 556, assuring compliance with quality and manufacturing norms.

Packaged on tape and reel, the capacitor supports efficient automated pick-and-place assembly making it ideal for high volume production. Common use cases include mobile phones, video tuners, and other consumer electronic devices where temperature compensation and signal integrity are important.

This capacitor is designed with a compact 0805 package suitable for high-density PCB layouts. Constructed with a stacked configuration and C0G dielectric for ultra-stable, low loss performance. Features nickel barrier terminations coated with tin solder for reliable surface mounting.

Operates in a wide temperature range of -55°C to 125°C ensuring durability in various environments. Complies with standards including J-STD-020, EIA 624, EIA 481, IPC-7351, and EIA 556 for quality assurance. Ideal for applications in mobile phones, video tuners, and decoupling circuits requiring temperature stability.

Packaged in tape and reel format facilitating automated assembly processes.

This product is widely used across industrial electronics, telecommunications, consumer electronics manufacturing, and laboratory equipment requiring stable and reliable ceramic capacitors. It is a key component in designing high-performance electronic circuits with tight tolerance and stable capacitance over temperature.
