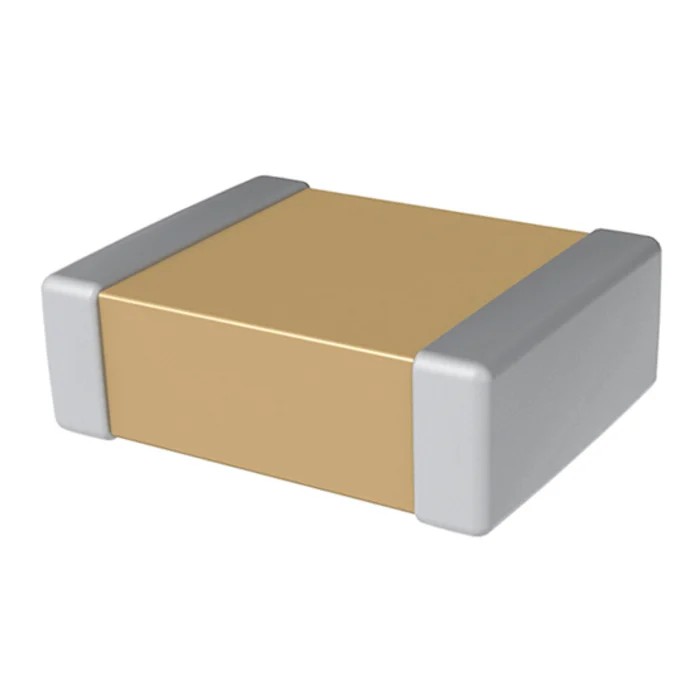

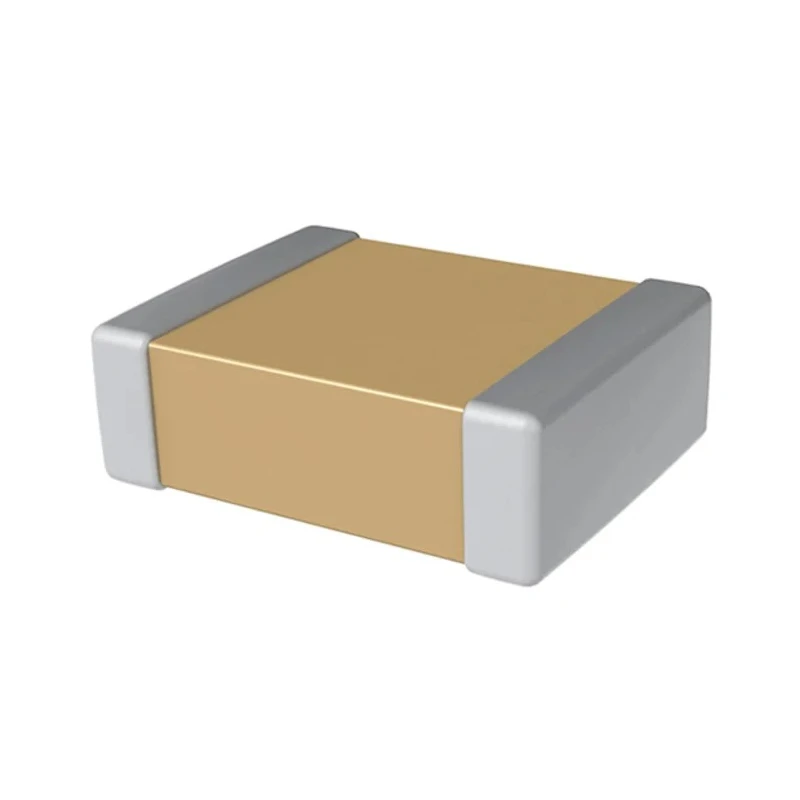

KEMET 22 nF Multilayer Ceramic Capacitor, 100V dc, ±10 % Tolerance, Surface Mount, X7R Dielectric, 0603 C0603C223K1RACTU

KEMET C0603C223K1RACTU is a 22 nF Multilayer Ceramic Capacitor manufactured for surface mount technology applications, featuring a 100V DC voltage rating and ±10 % capacitance tolerance. This capacitor uses an X7R dielectric, providing stable performance across a wide range of temperatures from -55°C up to 125°C, making it highly reliable in demanding industrial and electronic environments.

The capacitor is housed in a compact 0603 package with dimensions of 1.6mm length, 0.8mm width, and 0.8mm height allowing for high-density PCB layouts. It features a stacked construction with a non-polar design that reduces installation concerns. The termination type is solder with 100% pure matte tin plating to achieve excellent solderability and durability during assembly.

It is RoHS and REACH compliant, lead (Pb)-free, ensuring environmental safety. Packaging in tape and reel format supports automated mounting equipment, increasing production efficiency. The component conforms to industry standards including IPC-7351, EIA 481, EIA 556, EIA 624, and J-STD-020, assuring manufacturers of high-quality and consistent performance.

Features an X7R dielectric type for stable capacitance over temperature range. Compact 0603 package size (1.6mm L x 0.8mm W x 0.8mm H) for high-density circuit boards. Maximum operating temperature of 125°C supports demanding electronic environments.

Lead (Pb)-free, RoHS, and REACH compliant for environmental safety. Non-polar device minimizing installation concerns and simplifying PCB layout. Termination with 100% pure matte tin-plated finish ensures excellent solderability.

Packaging is tape and reel, suitable for automated assembly processes. Conforms to standards IPC-7351, EIA 481, EIA 556, EIA 624, and J-STD-020 ensuring quality and compatibility. Capacitance stable with ±30 ppm/°C change from -55°C to +125°C temperature range.

Suitable for various industrial and electronic applications requiring reliable capacitors.

This Multilayer Ceramic Capacitor is widely used in industrial, consumer electronics, automotive electronics, communication devices, and HVAC systems due to its stable dielectric properties and reliable performance under thermal stress. It is an essential passive component in circuit design, offering precise capacitance and durability.
