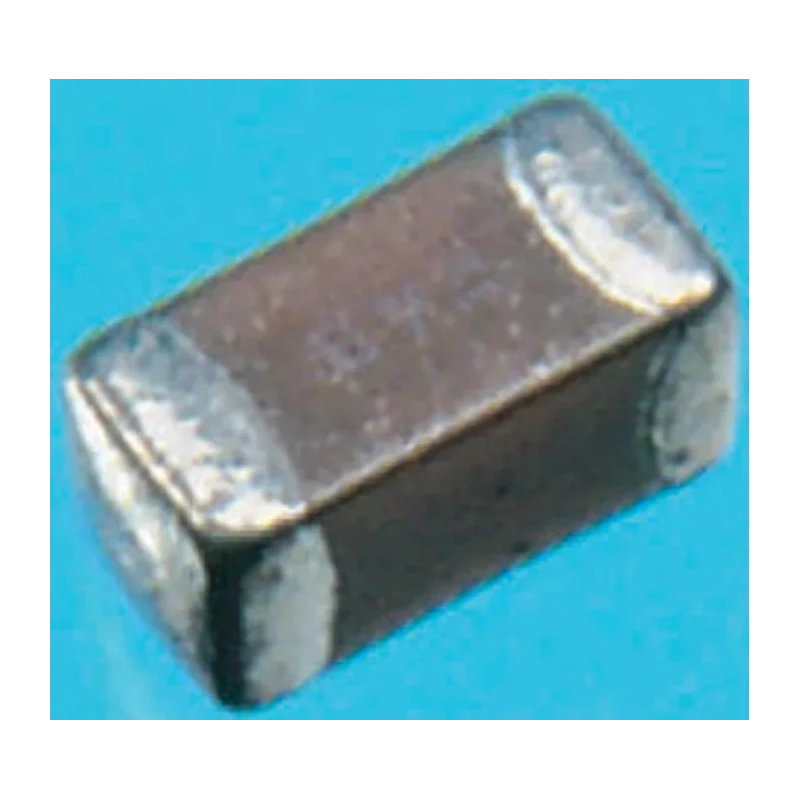

KEMET 120 nF 50V DC ±10 % X7R Multilayer Ceramic Surface Mount Capacitor C0603C124K5RACTU

KEMET C0603C124K5RACTU is a 120 nF multilayer ceramic capacitor engineered for high performance in demanding applications. Featuring an X7R temperature-stable dielectric and a voltage rating of 50V DC with ±10 % tolerance, this surface-mount device excels in mitigating ripple current effects due to its low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL).

The capacitor is constructed using a stacked multilayer design housed in a compact 0603 case size with precise dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, enabling efficient use of PCB space. The termination employs 100% pure matte tin plating, enhancing solderability and ensuring reliable connections during automated assembly.

Designed to operate across a broad temperature range from -55°C to +125°C, this capacitor accommodates both commercial and industrial environments. Its non-polarized nature removes directional installation concerns, making it versatile for various circuit configurations. Although it is not qualified to automotive standards (AEC-Q200), it remains robust for demanding electronic circuits requiring critical timing, tuning, filtering, transient voltage suppression, and energy storage functions.

The device meets multiple industry standards including J-STD-020, IPC-7351, and several Electronic Industries Alliance (EIA) standards, assuring quality and consistency in manufacturing and performance. Packaged on tape and reel, these capacitors support high-volume SMT manufacturing workflows with ease.

High ripple current performance with minimal ESR and ESL. Operates from -55°C to +125°C supporting extended temperature applications. Surface mount design with 0603 size for space-saving PCB layouts. Compliant with major industry standards for reliability and quality.

Non-polar device for simplified installation and flexible usage. Pure matte tin-plated terminations for enhanced solderability. Tape and reel packaging for manufacturing efficiency.

This multilayer ceramic capacitor is ideal for electronic components, power and connectors, and passive component applications such as timing circuits, filtering, bypassing, and transient voltage suppression. Its robust operating parameters and quality certifications make it suitable for industrial, commercial, and electronic device manufacturing contexts.
