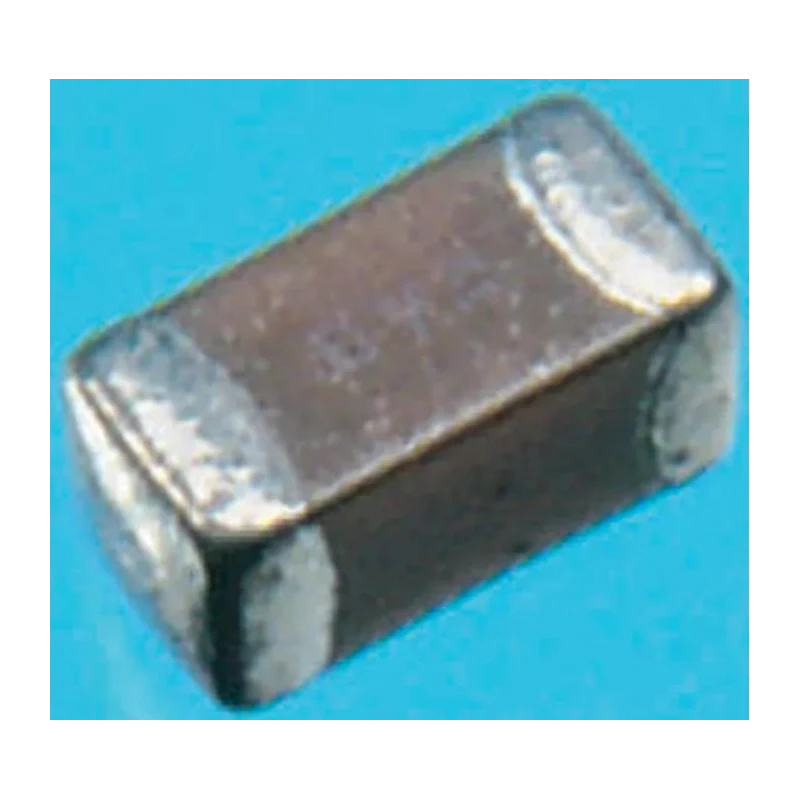

KEMET 2.2 nF Multilayer Ceramic Capacitor 50V DC ±5% Tolerance Surface Mount 0603 C0G Dielectric C0603C222J5GACTU

KEMET C0603C222J5GACTU is a 2.2 nanofarad multilayer ceramic capacitor designed for surface mounting applications. It features a compact 0603 case size with exact dimensions of 1.6mm length, 0.8mm width, and 0.8mm height, making it ideal for high-density electronic circuits.

This capacitor uses the C0G dielectric material classified as Class I ceramic, ensuring excellent stability and minimal capacitance variation over temperature, voltage, and time. It operates effectively within a temperature range of -55°C to 125°C, making it suited for industrial, automotive, telecommunications, and consumer electronics where temperature stability is paramount.

Rated for a maximum working voltage of 50 volts DC, it maintains tight capacitance tolerance of ±5%. The termination is solder type compatible with automated surface mount technology (SMT) assembly lines, and the product is supplied in tape and reel packaging to support efficient manufacturing processes.

Construction is stacked, supporting reliable performance in both commercial and industrial environments. The capacitor adheres to multiple industry standards including IPC-7351, J-STD-020, EIA 481, EIA 556, and EIA 624, ensuring quality and compatibility with diverse electronic designs.

Typical applications include use as bypass and decoupling capacitors in circuit boards, timing devices, and frequency discriminating circuits where stable capacitance characteristics are essential. The product is also suitable for demanding resonant circuit applications due to its predictable electrical properties.

Stable capacitance with temperature compensation from -55°C to 125°C. Compact 0603 package size 1.6mm x 0.8mm x 0.8mm. Solder termination for surface mount technology assembly. C0G dielectric for minimal capacitance change over voltage and time.

Complies with IPC-7351, J-STD-020, EIA 481, EIA 556, EIA 624 standards. Maximum operating voltage 50V DC with ±5% capacitance tolerance. Tape and reel packaging suitable for automated mounting. Stacked construction ensuring reliable electrical performance.
