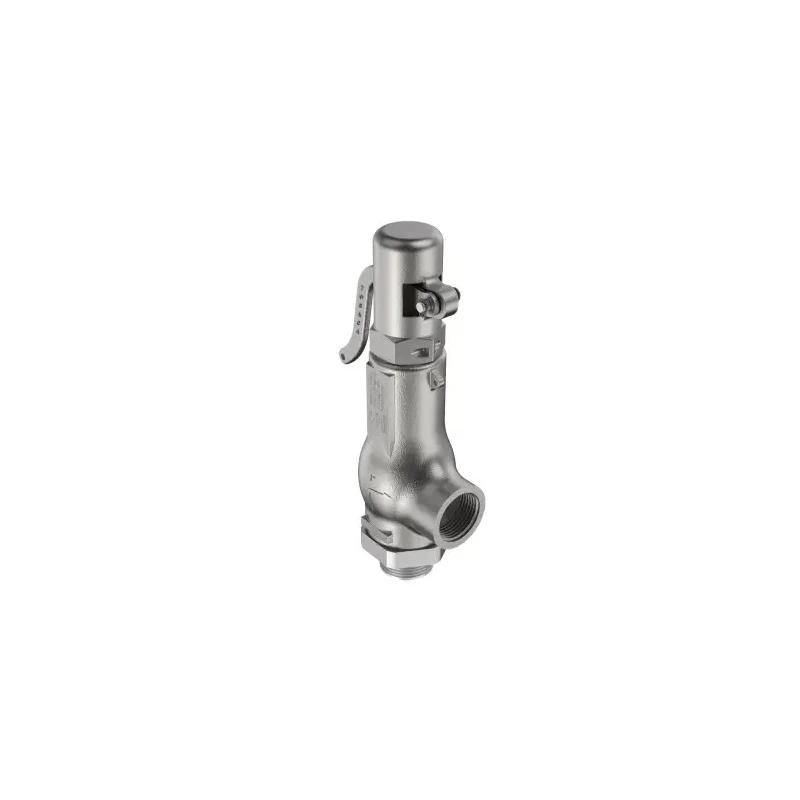

TOSACA 3 bar Pressure Relief Valve Threaded BSP Inlet 3/4 in Female Outlet 1 in Female Stainless Steel Body 350°C 482857

TOSACA 482857 Pressure Relief Valve is engineered for industrial steam applications, balancing safety with high-performance specifications. This valve features a stainless steel 316L body which ensures excellent corrosion resistance and durability, ideal for demanding fluid power systems.

The valve is designed with threaded BSP inlet and outlet connections, measuring 3/4 inch female and 1 inch female respectively, facilitating secure and standard hydraulic fittings. The valve performs reliably with a maximum set pressure of 3 bar and covers a wide operating temperature range from -10°C to 350°C, making it suitable for high-temperature steam management.

With a minimum set pressure of 0.2 bar and overpressure tolerance of 10%, the valve ensures safety by automatically relieving excess pressure. The blowdown rates are set at 10% for gases and 20% for liquids, maintaining system stability during pressure fluctuations. The valve discharge coefficients are k=0.55 for gases and k=0.48 for liquids, allowing efficient venting and protection of pipeline and system components.

The design complies with rigorous international standards, including EN-12516-1, EN-4126-1/7, DIN 259, and ANSI B2.1, guaranteeing a reliable safety relief function. This Pressure Relief Valve is manufactured in Spain and is supplied in new condition for guaranteed quality.

Ideal for use in industrial facilities requiring fluid safety management such as manufacturing plants, HVAC systems, power generation, and chemical processing industries. This valve helps prevent overpressure conditions and protects equipment integrity, ensuring operational safety.

Constructed with stainless steel 316L body for durability and corrosion resistance. Threaded BSP inlet connection of 3/4 inch female port for secure fitting. Threaded BSP outlet connection of 1 inch female port for efficient discharge.

Minimum set pressure of 0.2 bar with overpressure tolerance of 10% and blowdown rates for gases and liquids. Designed to operate within temperature range of -10°C to 350°C suitable for high-temperature steam systems. Complies with design standards EN-12516-1, EN-4126-1/7, DIN 259, and ANSI B2.1 ensuring safety and reliability.

Discharge coefficients k=0.55 for gases and k=0.48 for liquids for effective pressure relief. Manufactured in Spain with new product condition assurance. Explore more industrial valves and pressure relief solutions at EnvMart, designed to meet critical safety standards and performance requirements.
