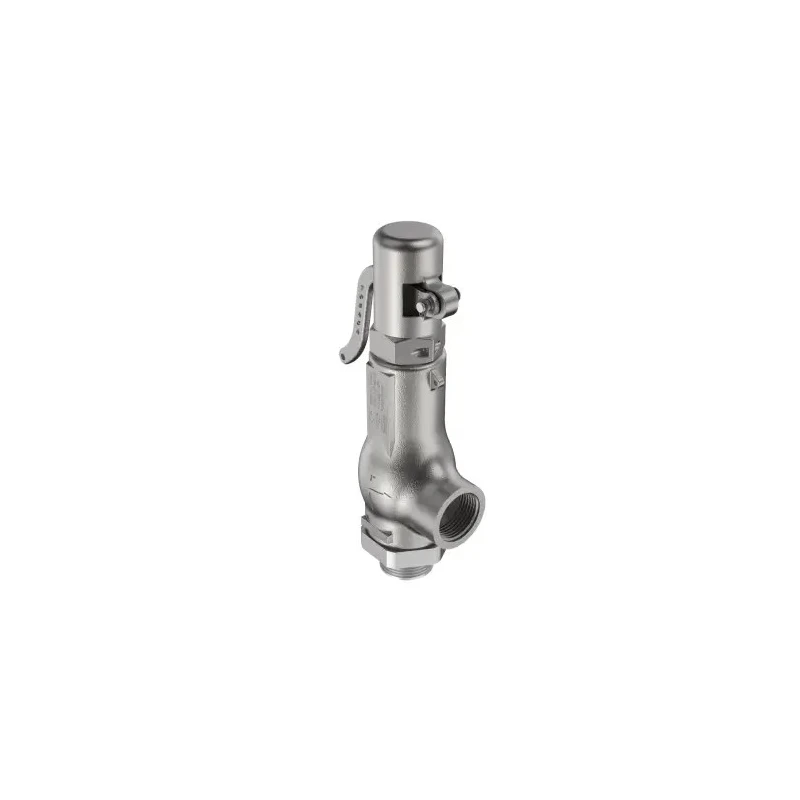

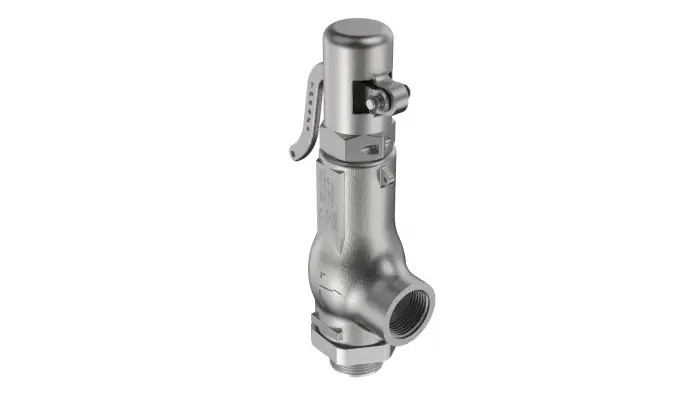

TOSACA 4 bar Pressure Relief Valve With 3/4 in Inlet and 1 in Outlet Stainless Steel Body 482858

TOSACA 482858 pressure relief valve is a high-quality safety valve suitable for steam applications, engineered to release pressure automatically at a maximum set pressure of 4 bar.

Constructed from stainless steel 316L, this valve offers excellent corrosion resistance and durability for prolonged industrial use. The valve features threaded BSP inlet and outlet connections, with a 3/4 inch inlet port and a 1 inch outlet port, both female gender.

This pressure relief valve is designed following EN-12516-1 and EN-4126-1/7 standards, ensuring compliance with key safety and performance regulations. It operates reliably within a temperature range of -10°C to 350°C, allowing it to handle steam service conditions effectively.

The minimum set pressure for activation is 0.2 bar, providing sensitive pressure relief with an overpressure tolerance of 10%. Blowdown parameters are optimized for both gases (10%) and liquids (20%) to maintain system stability.

Connections on this valve support both BSP and NPT thread standards, making it versatile for integration into various piping configurations. The valve’s safety lever facilitates manual lifting for testing and maintenance purposes.

Primarily used in industrial steam systems, power plants, and fluid power applications, the TOSACA 482858 pressure relief valve enhances operational safety by preventing overpressure conditions that could damage equipment or cause hazardous failures.

The valve body is made of stainless steel 316L for reliable corrosion resistance and longevity. Threaded BSP and NPT connections provide flexible installation options. Maximum set pressure of 4 bar ensures timely pressure relief in steam systems.

Wide operating temperature range from -10°C to 350°C for varied industrial environments. Compliance with EN standards guarantees consistent safety and performance. Minimum set pressure of 0.2 bar allows precise, sensitive pressure control.

Blowdown characteristics optimize operational stability for gases and liquids. Equipped with lifting lever for manual operation and maintenance.

The TOSACA 482858 pressure relief valve is designed and manufactured in Spain, ensuring high-quality European engineering standards. It is ideal for industrial, mechanical, fluid power, and steam pressure relief applications requiring durable and precise safety valves. Browse more Pressure Relief Valves and industrial valves at EnvMart for comprehensive fluid control solutions.
