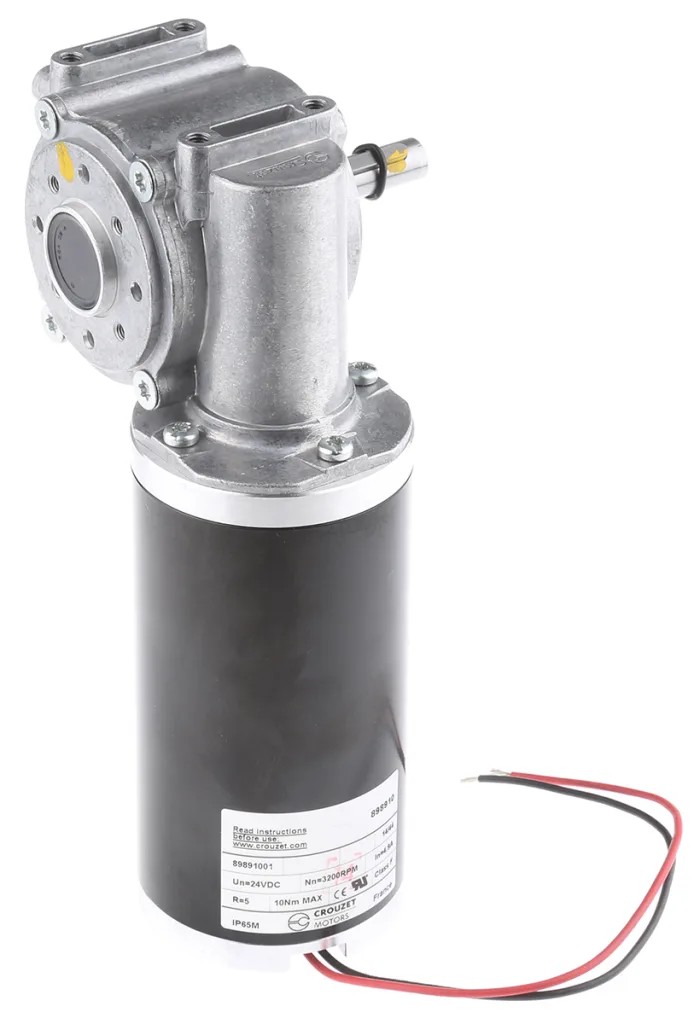

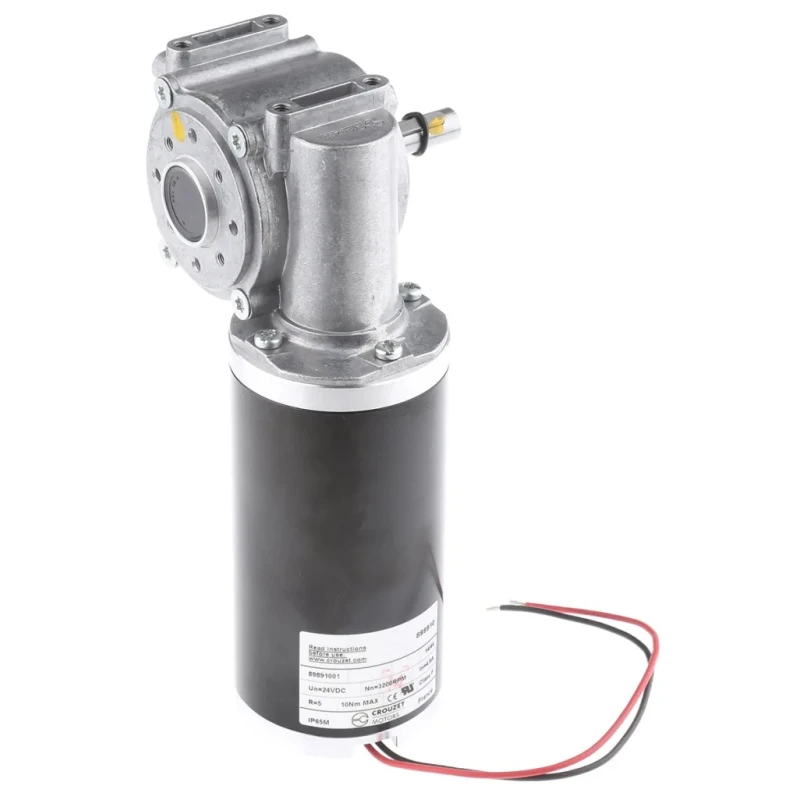

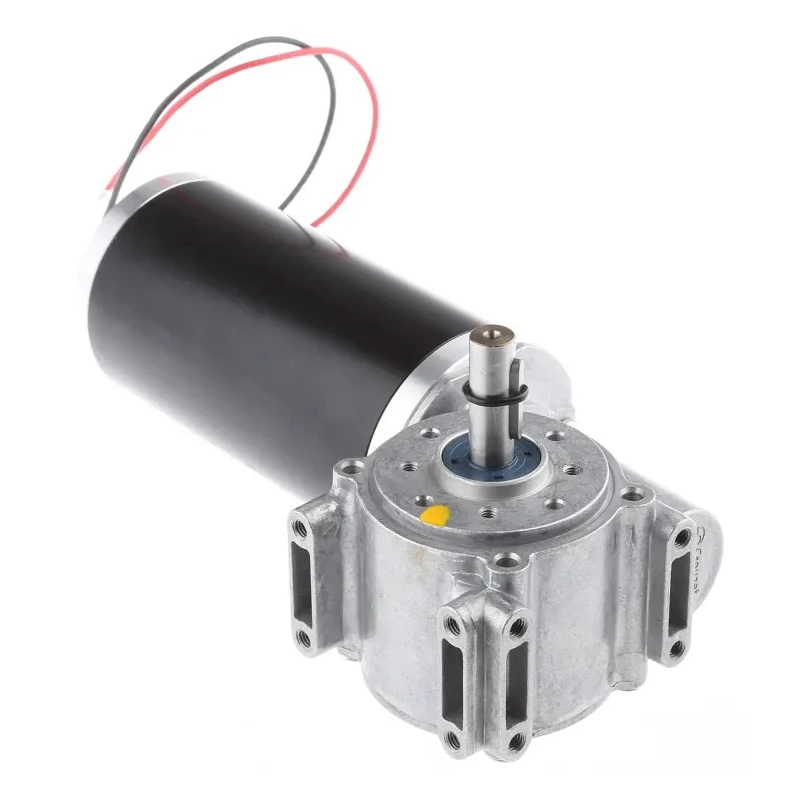

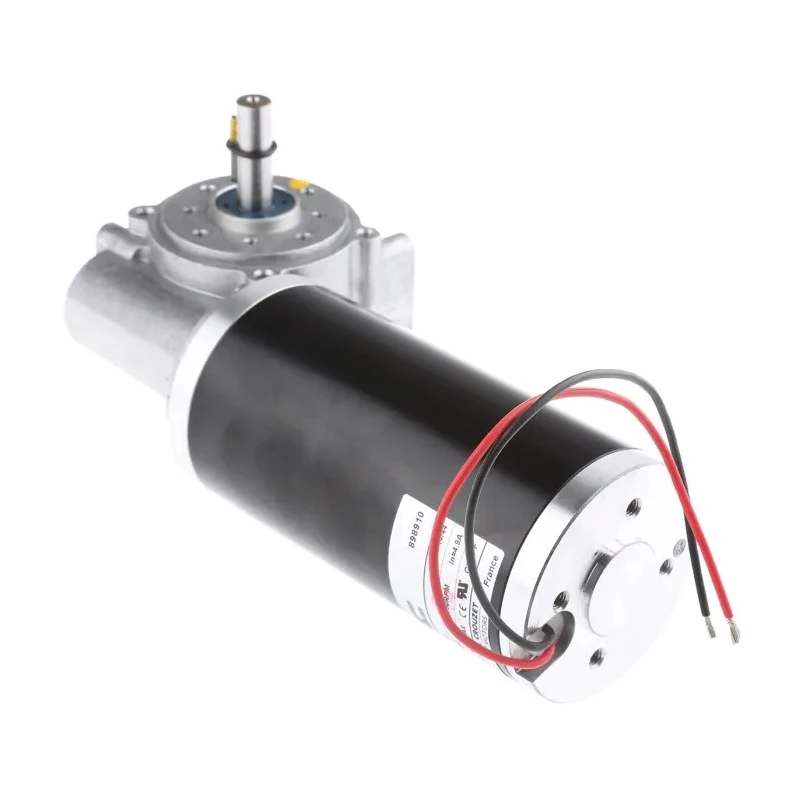

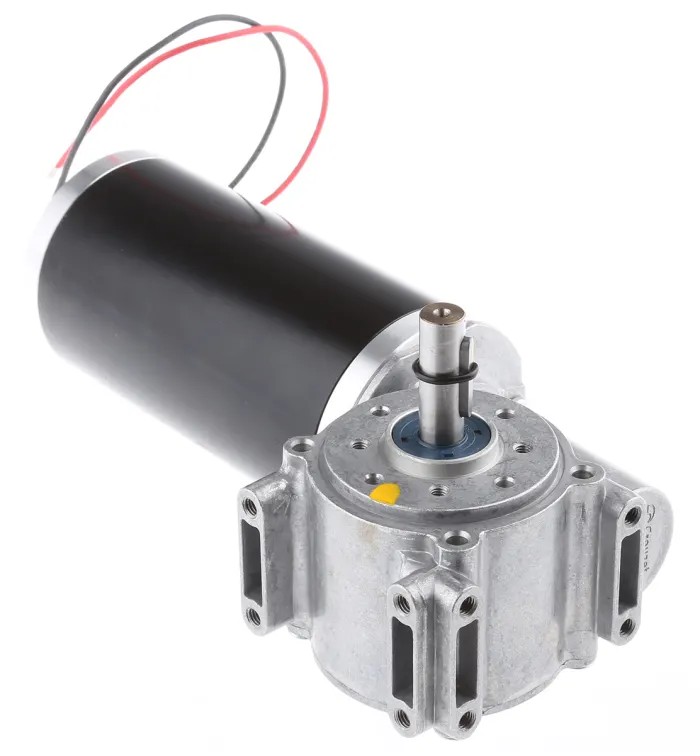

Crouzet Brushed Geared DC Geared Motor 209 W 24V DC 10 Nm Torque 686 RPM 9.99 mm Shaft Diameter 89891001

Crouzet 89891001 is a high-performance brushed geared DC geared motor delivering 209 W power at 24 V DC supply voltage. It provides a maximum output torque of 10 Nm and a precise output speed of 686 rpm, ideal for demanding industrial and medical equipment applications.

This motor features a 9.99 mm diameter shaft mounted on ball bearings to ensure smooth operation and longevity. The shaft length is 25 mm while the overall length of the motor is 198.7 mm, with width and depth measuring 97.5 mm and 93.5 mm respectively, enabling easy integration within compact system designs.

The flange mount and worm gearhead type enhance torque transmission efficiency and stability during operation. Constructed with a permanent magnet core, the motor achieves excellent efficiency and quiet running characteristics.

Certified for IP69K high protection rating, RoHS compliance, UL 1004, CE marking, and relevant IEC standards including IEC 60335 for household appliances and IEC 60601-1 for medical devices, this motor meets rigorous industrial safety and quality standards.

Its typical applications include use in medical equipment, pumps, valves, railway systems, and aeronautics, where precise and reliable DC power and torque control are required. This motor delivers a precise output speed of 686 rpm.

Shaft diameter is 9.99 mm providing reliable mechanical coupling. The mount type is flange with a worm gearhead design for efficient torque transmission. It has a current rating of 5.4 A suitable for controlled applications.

Shaft length measures 25 mm with overall motor length of 198.7 mm for compact installation. Constructed with permanent magnet core suitable for industrial and medical equipment. The motor meets high standards including IP69K, RoHS, UL 1004, CE, and IEC certifications.

It is designed for applications including pumps, valves, railways, aeronautics, and medical devices. Dimensions include width 97.5 mm and depth 93.5 mm ensuring integration into system assemblies. Explore this motor along with other Crouzet DC Geared Motors and automation solutions to fulfill high-quality industrial requirements on EnvMart.
