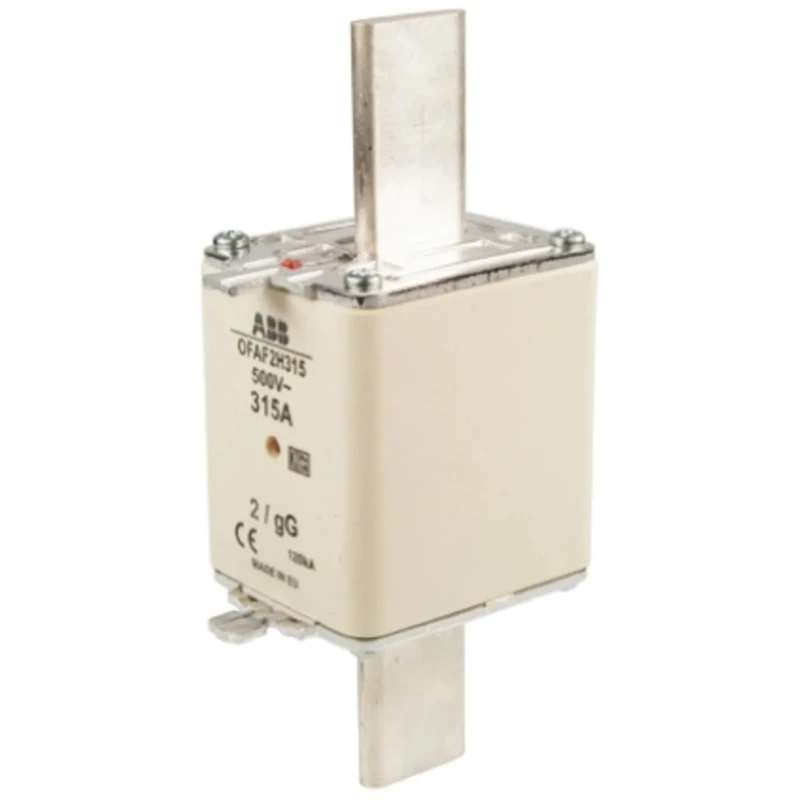

ABB 315A High Rupture Capacity Centred Tag Fuse NH2 500V OFAF2H315 1SCA022627R6010

ABB OFAF2H315 1SCA022627R6010 is a High Rupture Capacity (HRC) centred Tag Fuse NH2 type rated at 315A and 500V. It is designed to provide dependable circuit protection by reacting to temperature rise and limiting current effectively.

The OF series fuse links contain granulated quartz to contain the temperature developed by the arc during short circuit conditions, enhancing safety by causing the fusing element to rupture promptly. This fuse features a blade-type centred tag and a compact size with a 15mm tag width, 49.5mm fuse length, and an overall length of 79mm.

Its robust design and precise dimensions ensure compatibility with suitable fuse holders in electrical systems. This fuse is ideal for use in industrial electrical panels, automation setups, and power distribution boards that require secure, efficient, and quick circuit interruption to prevent equipment damage.

The fuse complies with no explicit standards/approvals stated but adheres to ABB’s trusted manufacturing quality in the OFAF2H315 series. Reliable current rating of 315A for heavy-duty electrical systems. High Rupture Capacity ensures rapid response to fault conditions.

Compact and durable construction with blade tag connectivity. Temperature-reactive granulated quartz enhances performance. Designed specifically for NH2 fuse size holders. Applicable in industrial, electrical automation, manufacturing, and commercial applications.

Set your systems up with ABB’s OFAF2H315 fuse to guarantee enhanced protection and operational safety. Explore more in the electrical fuse and circuit protection category on EnvMart for additional compatible components and accessories.
