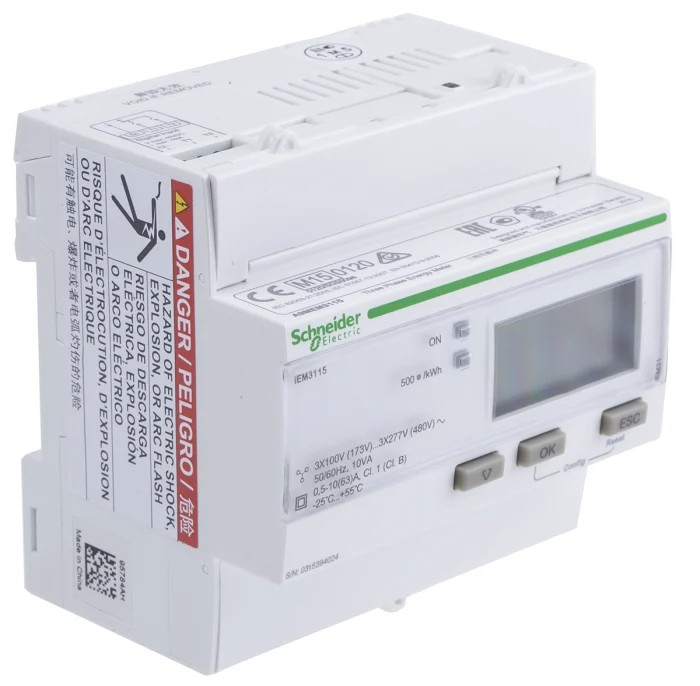

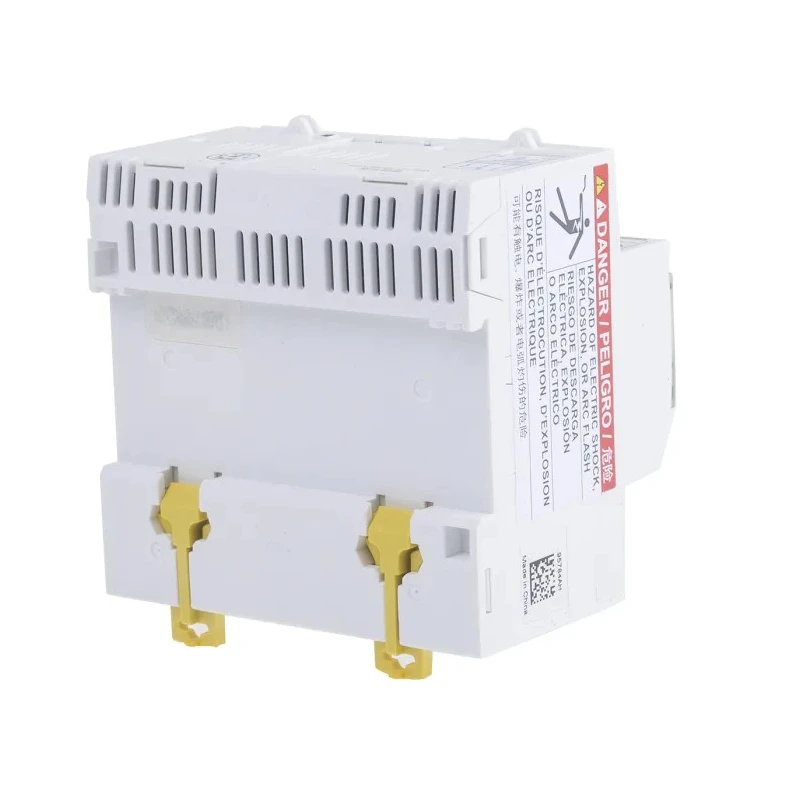

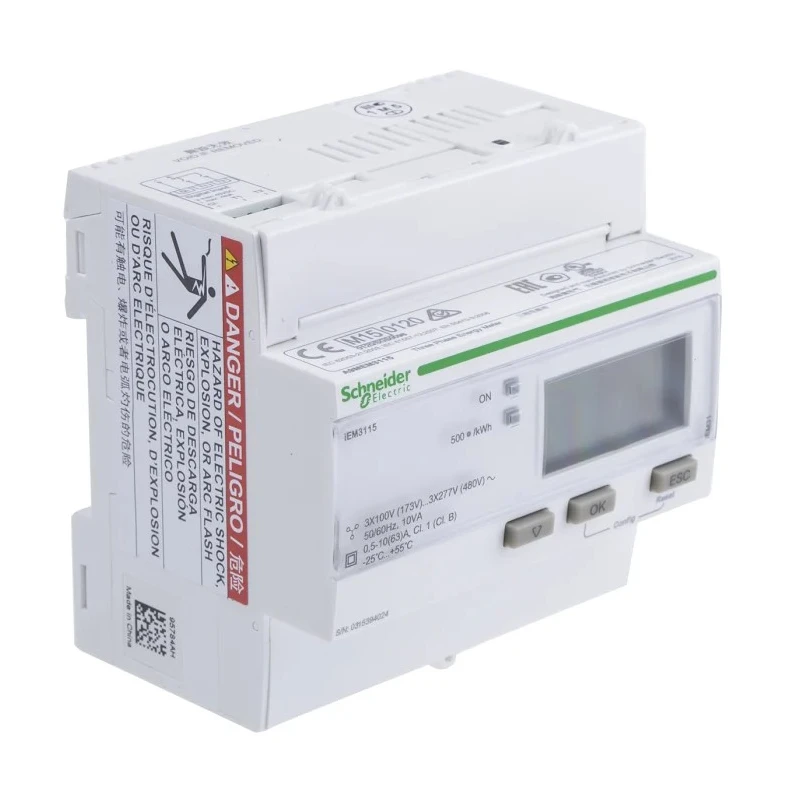

Schneider Electric 3 Phase LCD Energy Meter Acti9 iEM Series Model A9MEM3115

Schneider Electric A9MEM3115 is a 3 Phase LCD Energy Meter from the Acti9 iEM series designed to measure active electrical energy consumed by single-phase, three-phase, or three-phase plus neutral circuits accurately. This device is critical for industrial, commercial, and institutional energy monitoring and management.

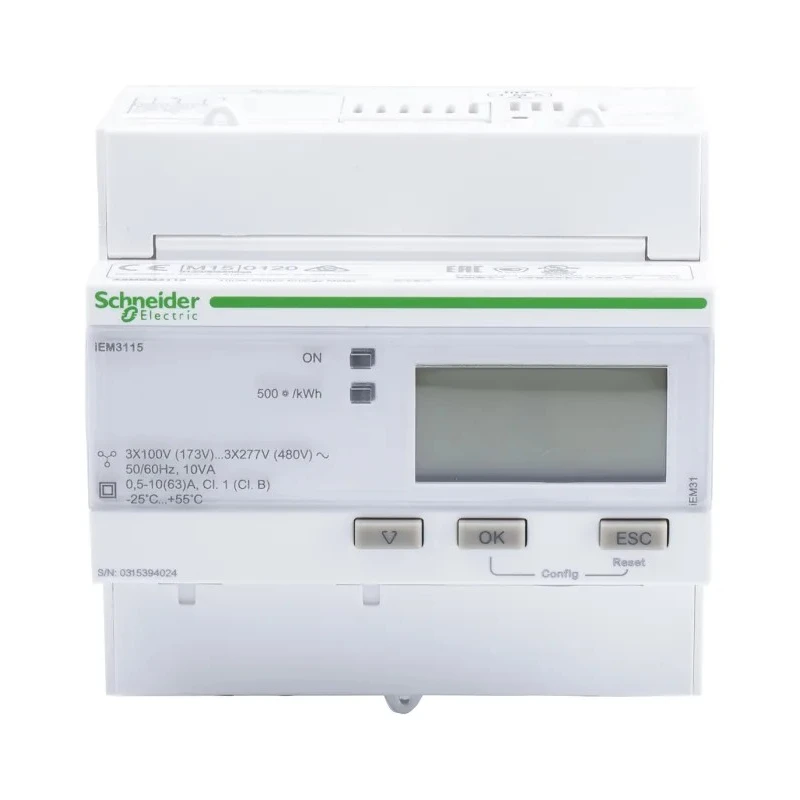

Featuring a robust LCD display with 10 digits and digit height of 85mm, the meter provides clear and precise energy readings. It fits standard panel cutouts with dimensions 95mm height and 90mm width and has a depth of 69mm, making installation straightforward in various control panels.

The meter operates safely over an operating voltage range of 3 x 100/173 Vac (50/60 Hz) to 3 x 277/480 Vac (50/60 Hz) and supports a maximum current of 63 A. Its environmental ratings include IP40 for the front panel and IP20 for the casing, which protect against ingress of dust and solid particles to differing extents.

Designed to endure demanding conditions, this meter operates in temperatures ranging from -25°C to +55°C and has electromagnetic environmental class E2 and mechanical environmental class M1, ensuring reliable performance in industrial environments.

The A9MEM3115 model features multi-tariff metering capabilities controlled by either digital inputs or an internal clock and includes pulse outputs. It carries international certifications compliant with IEC 61557-12 and IEC 62053-21 standards, and it is MID certified, underscoring its accuracy and compliance with European metering regulations.

Ideal for electrical energy measurement in industrial automation, process control, and energy management systems, this energy meter from Schneider Electric ensures precision and durability. It caters to sectors such as manufacturing plants, utilities, commercial buildings, and renewable energy monitoring.

Equipped with a clear LCD display with 10 digits and large 85mm digit height. Fits standard panel cutout sizes of 95mm height and 90mm width. Supports a maximum current of 63 A for diverse load conditions. Operates within an ambient temperature range from -25°C to +55°C.

Front panel and casing IP ratings ensure dust protection and durability. Conforms to IEC and UL international standards for safety and accuracy. Multi-tariff metering with pulse output enhances energy management. Electromagnetic and mechanical environmental classes E2 and M1 ensure robustness.

Manufactured in China, ensuring consistent quality manufacturing processes. Explore the complete range of Energy Meters at EnvMart to find compatible products and accessories for your energy monitoring systems.
