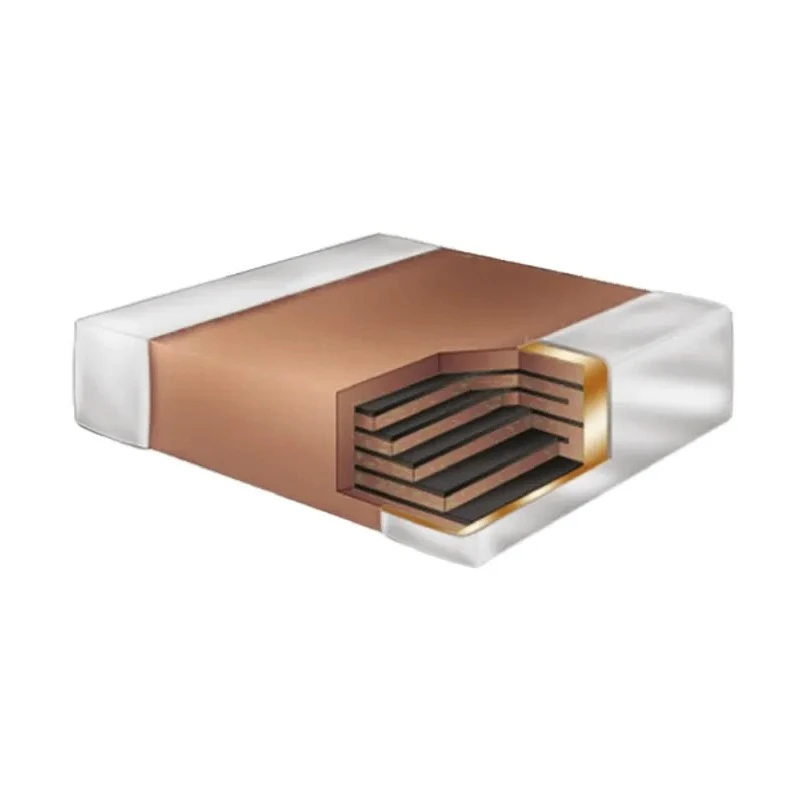

KEMET 39 pF Multilayer Ceramic Capacitor 250V dc ±5% Tolerance Surface Mount 0603 Package CBR06C390JAGAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V dc |
| Brand | KEMET |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | CBR06C390JAGAC |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | HiQ-CBR |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 39pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
Key Features
- Capacitance of 39 pF ensures precise tuning for high-frequency circuits.
- Surface mount design with 0603 (1.6mm x 0.8mm) package for compact PCB layouts.
- Dielectric material uses C0G ceramic for excellent temperature stability.
- Stacked construction enhances reliability and capacitance density.
- Meets automotive standard AEC-Q200 for high-quality performance.
- Offers a tolerance of ±5% for consistent electrical characteristics.
- Minimum operating temperature of -55°C and maximum of 125°C for harsh environments.
- Termination is solder compatible for ease of assembly.
Product Description
KEMET CBR06C390JAGAC is a precision 39 pF Multilayer Ceramic Capacitor designed for reliable performance in electronic circuits. This capacitor is rated for 250 volts DC and features a surface mount 0603 package, making it ideal for compact and high-density PCB designs. With stacked construction and the use of high-quality C0G dielectric material, it provides excellent temperature stability and low losses in high-frequency applications.
This capacitor complies with the automotive standard AEC-Q200, ensuring ruggedness and reliability under automotive and industrial conditions. It supports a wide temperature range from -55°C to 125°C, making it suitable for various demanding environments including industrial, automotive, and consumer electronics.
The ±5% capacitance tolerance ensures consistent electrical behavior for sensitive circuit tuning and filtering tasks. The capacitor is supplied in tape and reel packaging, facilitating efficient automated surface-mount assembly processes.

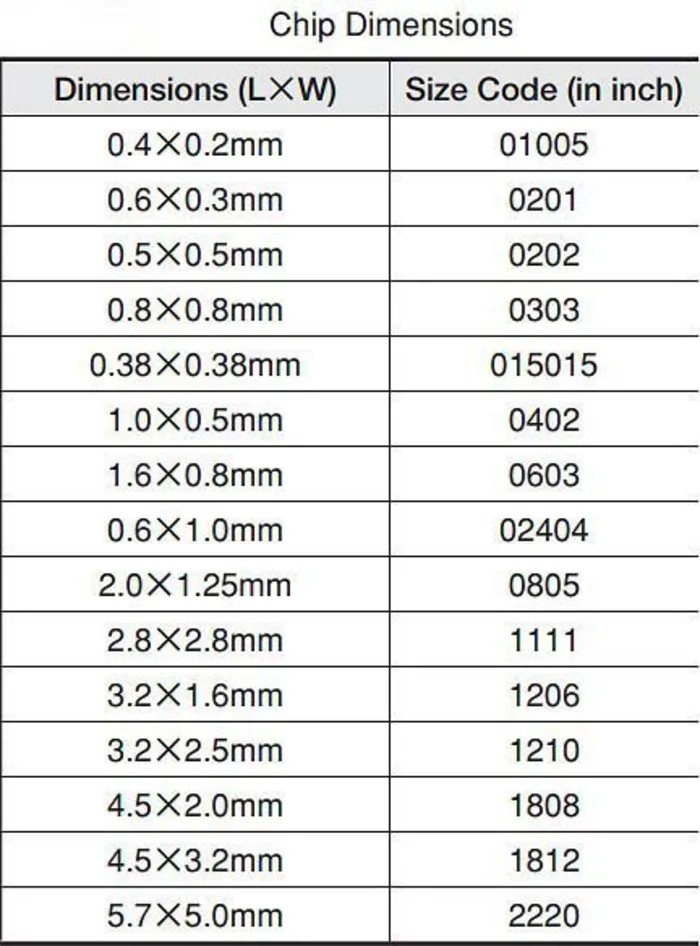

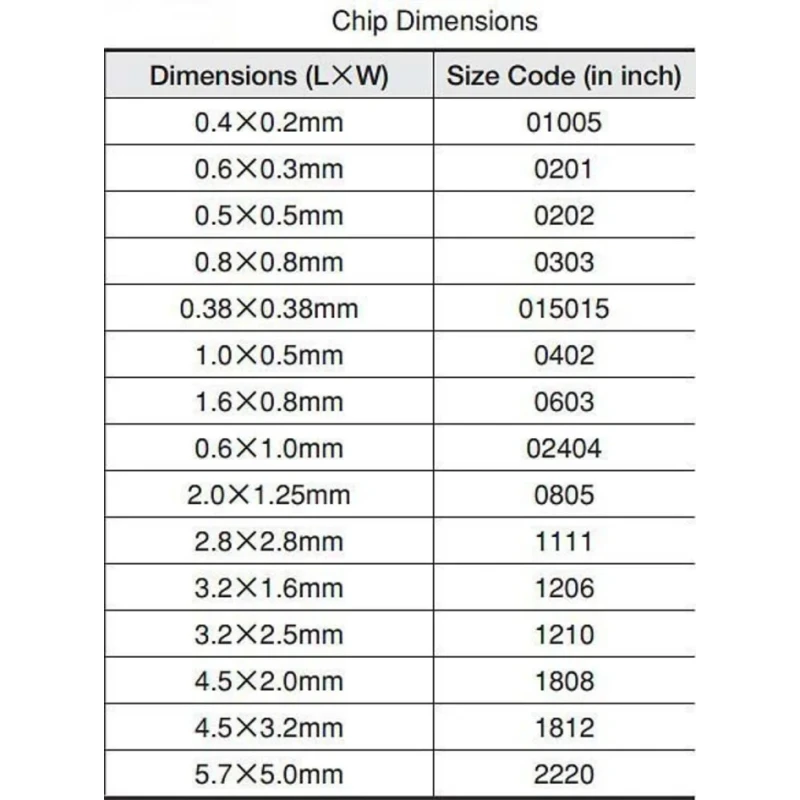

Key features include a compact 0603 size (1.6mm length x 0.8mm width x 0.8mm height), solder termination type, and compliance with multiple standards like EIA 481, J-STD-020, and IPC-7351 to name a few.
Capacitance 39 pF with ±5% tolerance for precision applications. Voltage rating 250V DC suitable for medium voltage circuits. Surface mount 0603 package enables miniaturized circuit design. Exceptional thermal stability using C0G dielectric.
Stacked construction improves capacitance density and reliability. Automotive grade compliant with AEC-Q200 for enhanced quality. Temperature rating from -55°C to 125°C for diverse environments. Terminated with solderable ends for reliable mounting.
Packaged in tape and reel to support high-volume manufacturing.
This Multilayer Ceramic Capacitor is used extensively in industrial, automotive, telecommunications, and consumer electronics to provide stable capacitance under varying temperature and electrical conditions. Its high reliability and compliance to stringent standards make it suitable for demanding circuit designs.
Explore a large selection of capacitors and other electronic components at EnvMart for your industrial and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 39 pF, which ensures precise tuning for high-frequency circuits.
It is rated for a voltage of 250V DC, making it suitable for medium voltage circuits.
The capacitor has a tolerance of ±5%, ensuring consistent electrical characteristics for sensitive applications.
The dimensions of the 0603 package are 1.6mm in length, 0.8mm in width, and 0.8mm in height.
It can operate in a temperature range from -55°C to 125°C, making it suitable for harsh environments.
The dielectric material used is C0G ceramic, which provides excellent temperature stability.
It features solder termination, which facilitates ease of assembly in electronic circuits.
It complies with the automotive standard AEC-Q200, ensuring high-quality performance in automotive applications.
This model has a stacked construction, which enhances reliability and capacitance density.
It is supplied in tape and reel packaging, which supports efficient automated surface-mount assembly processes.
This multilayer ceramic capacitor is used extensively in industrial, automotive, telecommunications, and consumer electronics.
The country of origin for this model is India.
