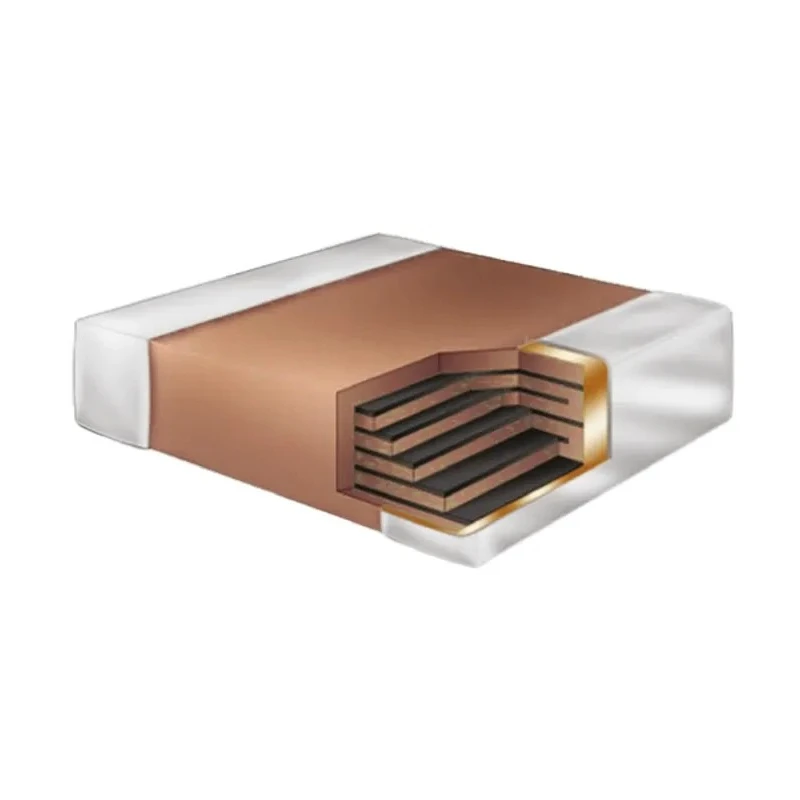

KEMET 10 pF 50V dc ±5 % Multilayer Ceramic Capacitor Surface Mount 0402 CBR04C100J5GAC

KEMET CBR04C100J5GAC Multilayer Ceramic Capacitor is a surface mount device designed for high reliability in electronic circuits. It provides a capacitance of 10 pF with a voltage rating of 50V dc and tolerance of ±5 %, making it suitable for precision applications.

The capacitor uses a C0G dielectric, known for excellent electrical stability and minimal variation with temperature changes, which is essential for sensitive electronic components in automotive, industrial, and consumer devices.

Its compact 0402 package (1 mm length, 0.5 mm width, 0.5 mm height) is optimal for high-density PCB layouts where space saving is critical.

This device features solder termination designed for surface mount technology (SMT) assembly with tape and reel packaging, facilitating efficient pick-and-place manufacturing processes.

The operational temperature range from -55°C to 125°C allows it to maintain consistent performance across harsh environmental conditions. Conforming to automotive standard AEC-Q200, this capacitor is qualified for automotive and other rigorous industrial applications, ensuring durability and reliability.

It complies with multiple industry standards such as EIA 624, EIA 481, EIA 556, IPC-7351, and J-STD-020, assuring quality manufacturing and compatibility. This capacitor features a C0G dielectric type ensuring high stability and low losses.

It has a tolerance of ±5 % for precise capacitance control. The package type is 0402, suitable for compact PCB designs. Termination is solder type designed for surface mounting applications. Operating temperature range spans from -55°C to 125°C for wide environmental use.

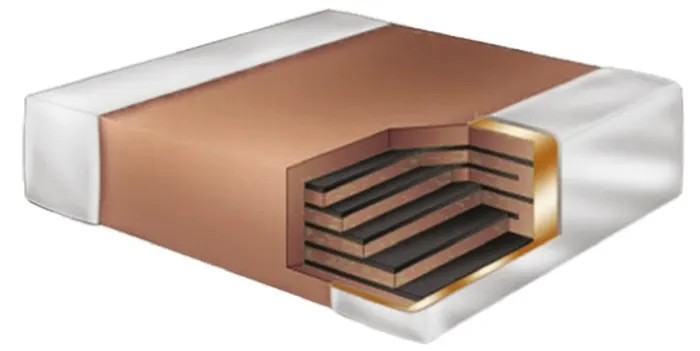

The product complies with automotive standard AEC-Q200 making it reliable for automotive electronics. The capacitor is packaged in tape and reel for efficient automated assembly. Its construction is stacked, ensuring high capacitance in a small form factor.

Meets industry standards including EIA 624, EIA 481, EIA 556, IPC-7351, and J-STD-020.

This multilayer ceramic capacitor is widely used in industrial electronics, automotive control systems, consumer electronics, communication devices, and high-frequency circuit designs. Its small footprint and robust specifications make it suitable for demanding environments.
