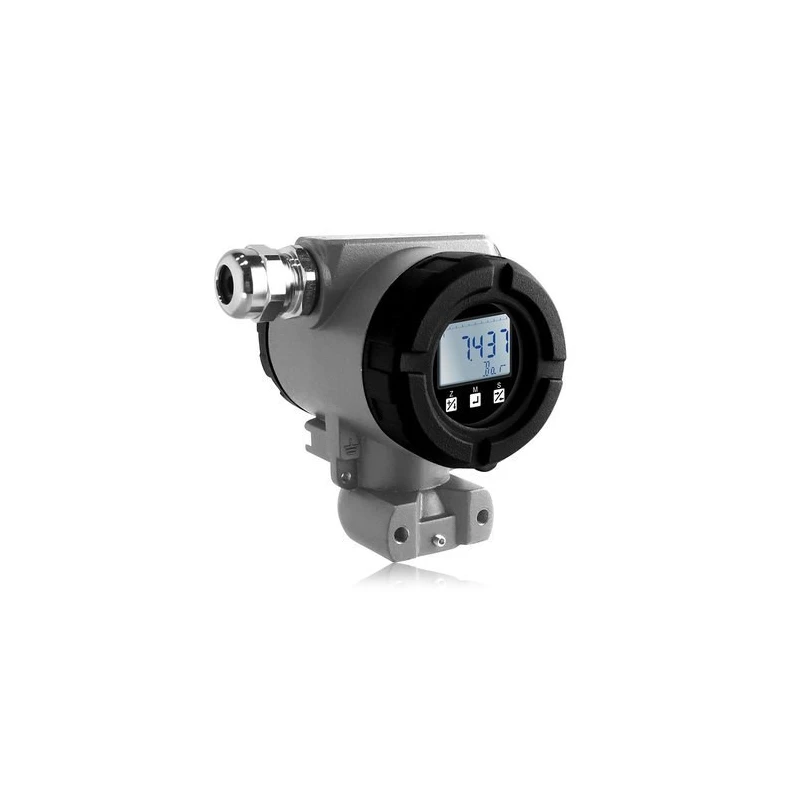

EYC SD06 Integrated Indicator Transmitter 220 V
Specifications
| Accuracy | 0.005 |
|---|---|
| Frequency | 50 Hz |
| Brand | EYC |
| Voltage (V) | 220 V |
| Model | SD06 |
| IP Rating | IP67 |
| Finishing | Powder Coated |
| Temperature | 120 Deg C |
| Pack Type | Box |
| Operating Range | 158Mtr |
Key Features
- Input type : Temp. / Pressure / Differential Pressure / Level
- Display Range : -9999 ... 99999
- Display unit : Temp : °C / Re / K / F
- Pressure : KPa / Pa / MPa / mmH2O / mH2O / mbar / bar / PSI / M / % / mA / kg/cm2 / mm
- Output : 4 ... 20 mA
- Signal Connection : 2 Wire
- Temperature Compensation : <0.5% @ -20 ... 70°C
- Linear Accuracy : <0.2%
- Sampling Time : 20 ... 30 times / sec.
- Response Time : < 2 sec.
- Temperature Influence : ±0.05%URL / 10°C
- Insulation Resistance : >200 MO
Product Description
EYC SD06 integrated indicator transmitter is an ideal solution for those who want to integrate their EYCCD into their existing system without having to purchase new equipment. The SD06 can be used as a standalone unit or it can be connected to any EYCCD receiver via the supplied cable.
- Medium : Water, Gas, Oil, etc. Compatible with Stainless Steel
- Operating Temp. : -20°C ... 70°C
- Storage Temp. : -40°C ... 85°C
- Power Supply : 24±10% VDC
- Current Consumption : < 23mA
- Electrical Connection : Terminal Connection
- Protection Rating : IP67
- Electrical Protection : Polarity Reversal Protection Over-voltage Short-circuit
- Certification : CE
- Material : Rugged Aluminum.
- Weight : Metal:618g( Without Wire )
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display range is from -9999 to 99999 for temperature, pressure, differential pressure, and level measurements.
It can measure water, gas, oil, and other compatible media.
The power supply requirement is 24±10% VDC.
The accuracy is
The response time is less than 2 seconds.
The insulation resistance is greater than 200 MΩ.
The temperature compensation is less than 0.5% at temperatures ranging from -20°C to 70°C.
It uses a terminal connection for electrical connections.
The weight of the unit without wire is 618 grams.
The operating temperature range is -20°C to 70°C, and the storage temperature range is -40°C to 85°C.
