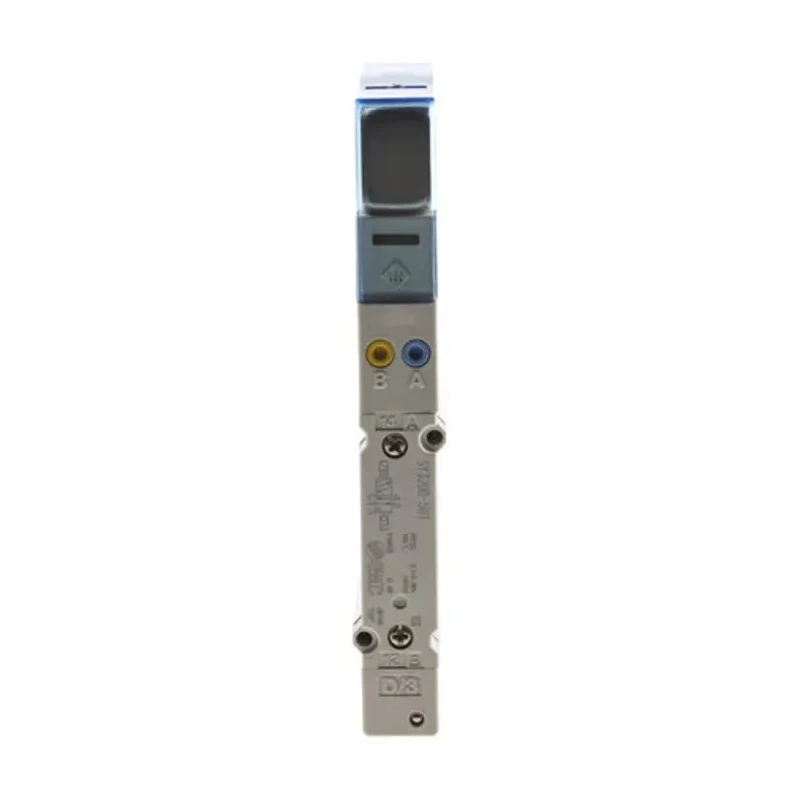

SMC Pneumatic Solenoid Pilot-Operated Control Valve, 24V DC, 0.7 MPa Operating Pressure, 276 L/min Flow Rate SY3000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Pilot-Operated Control Valve, 24V DC, 0.7 MPa Operating Pressure, 276 L/min Flow Rate SY3000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	80mm
Length	97mm
Model	SY3000
Width	40mm
Mount Type	Base
Series	SY3000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	276L/min
Minimum Pilot Pressure	0.1MPa
Valve Function	NC
Port Gender	Female

Key Features

Features pilot actuation to reduce electrical load and improve response time.
Five female M5 ports provide versatile flow configurations.
Maximum flow rate of 276 L/min supports moderate actuator supply requirements.
Operates reliably across temperatures from -10°C to 50°C.
Constructed from die-cast zinc body with nitrile rubber seals for durability and compatibility.
Compact dimensions of 40 mm width, 80 mm height, and 97 mm length allow installation in confined spaces.
Two-position normally closed valve function suitable for precise air control.
Ideal for automated machine tools, packaging line air-direction switching, conveyor air control, and laboratory pneumatic test rigs.

Product Description

The SMC SY3200-5U1-NA pneumatic solenoid pilot-operated control valve is engineered to control airflow in automated industrial pneumatic systems using pilot actuation with 24V DC electrical control. It provides a normally closed two-position function, directing compressed air efficiently to actuators and control circuits.

Designed with a die-cast zinc body, the valve ensures mechanical rigidity and dimensional stability suitable for base mounting in machine automation setups. The nitrile rubber (NBR) seals offer excellent compatibility with compressed air and non-aggressive gases, ensuring reliable sealing across a broad temperature range from -10°C to 50°C.

With five female M5 ports, this valve supports complex flow routing in pneumatic circuits. It delivers a maximum flow rate of 276 L/min and operates under a maximum pressure of 0.7 MPa, accommodating typical shop-floor pneumatic pressures. The compact size allows easy integration into valve banks or control manifolds in constrained spaces.

The valve finds applications in machine-tool pneumatic cylinder control, packaging lines where air-direction switching is required with robotic grippers, conveyor start/stop air supply control, and laboratory pneumatic test rigs.

Pilot actuation reduces electrical load on the solenoid and improves response time. Five ports enable versatile flow routing in complex pneumatic circuits. Maximum flow 276 L/min supports moderate-duty actuator supply. Operating pressure up to 0.7 MPa accommodates typical shop-floor pressures.

Nitrile rubber seals permit use over a wide temperature band. Female M5 ports simplify connection to standard pneumatic fittings. Compact dimensions enable installation in confined valve banks and equipment cabinets. Die-cast zinc body offers mechanical rigidity and stability for fixed mounting.

Two-position normally closed valve function allows precise airflow control. Suitable for industrial, manufacturing, laboratory, and automation environments. Explore EnvMart for comprehensive industrial pneumatic control valves and SMC products to enhance your automation and control systems.

Explore more products in our Pneumatic Solenoid Valves category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum flow rate of this model is 276 L/min, which supports moderate actuator supply requirements.

It operates under a maximum pressure of 0.7 MPa and requires a minimum pilot pressure of 0.1 MPa.

This solenoid valve operates at a voltage of 24V DC.

The body is made from die-cast zinc, and it features nitrile rubber (NBR) seals for compatibility with compressed air and non-aggressive gases.

The valve has compact dimensions of 40 mm in width, 80 mm in height, and 97 mm in length.

It features five female M5 ports, allowing versatile flow configurations in pneumatic circuits.

This valve operates reliably across a temperature range from -10°C to 50°C.

It provides a two-position normally closed (NC) valve function, suitable for precise air control.

It is suitable for applications in automated machine tools, packaging line air-direction switching, conveyor air control, and laboratory pneumatic test rigs.

The valve features pilot actuation, which reduces electrical load and improves response time.

This model is designed for base mounting, making it suitable for fixed installation in machine automation setups.

The SMC SY3000 valve is manufactured in India.
