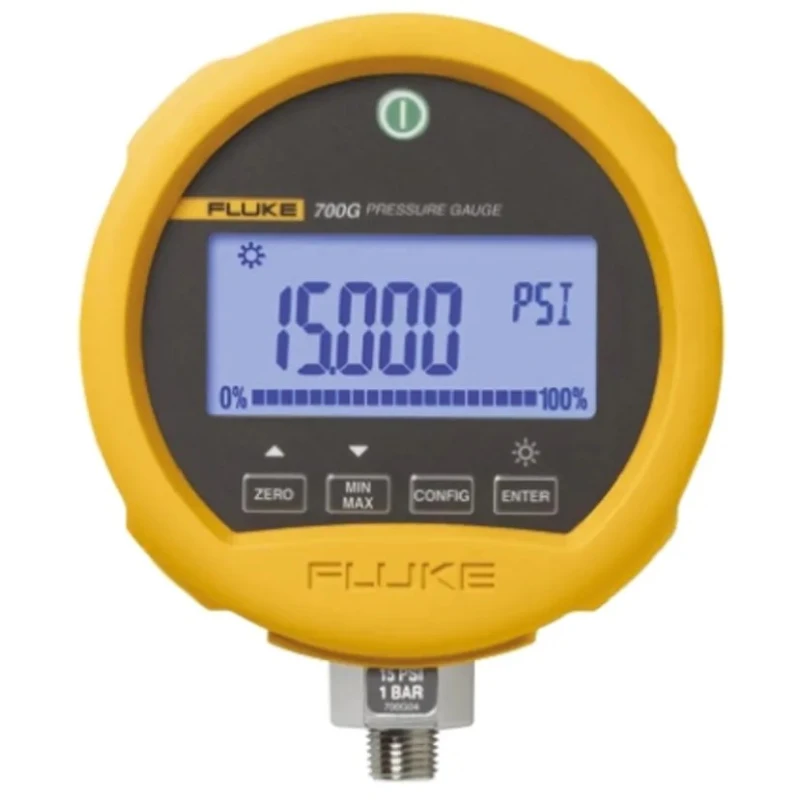

Fluke Fluke 700G Series G 1/4 RS232 Pressure Gauge 114 mm Dial, 34 bar Maximum Pressure Measurement RS232
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.05 % |
| Brand | Fluke |
| Model | RS232 |
| Connection Type | 1/4 in NPT Male |
| Case Material | Aluminium, Cast Zinc |
| Series | Fluke 700G |
| Maximum Operating Temperature | 55°C |
| Dial Size | 114mm |
| Connection Size | G 1/4 |
| PRESSURE CONNECTION | 1/4 inch NPT Male |
| Minimum Operating Temperature | -10°C |
| Interface Type | RS232 |
| Standards/Approvals | Groups A-D, CSA, Div 2, Class 1, ATEX |
| Maximum Pressure Measurement | 34bar |
| Minimum Pressure Measurement | -0.83bar |
| Connection Location | Bottom Entry |
| Fluke G 1/4 RS232 Pressure Gauge, 114 mm, 20 barBrand | Fluke |
Key Features
- High accuracy of ±0.05% full scale ensures precise calibration checks.
- Pressure range covers from vacuum -0.83 bar to high-pressure 34 bar systems.
- Durable aluminium and cast zinc case protects the gauge in harsh environments.
- Log up to 8,493 readings with RS232 interface for extended data capture.
- Suitable for use in hazardous areas with ATEX and CSA Div 2 approvals.
- Bottom entry G 1/4 (1/4 inch NPT male) pressure connection ensures easy installation.
- Operates reliably between -10°C and 55°C ambient temperatures.
- Ideal for commissioning, verification, and maintenance of hydraulic and pneumatic systems.
Product Description
Fluke FLUKE-700G07/APAC Pressure Gauge G 1/4 RS232, with a 114 mm dial size and maximum pressure measurement of 34 bar, is designed for precision measurement tasks in industrial environments.
This Pressure Gauge provides both positive and vacuum readings ranging from -0.83 bar up to 34 bar, with superior ±0.05% full scale accuracy, suitable for calibration and diagnostic applications.

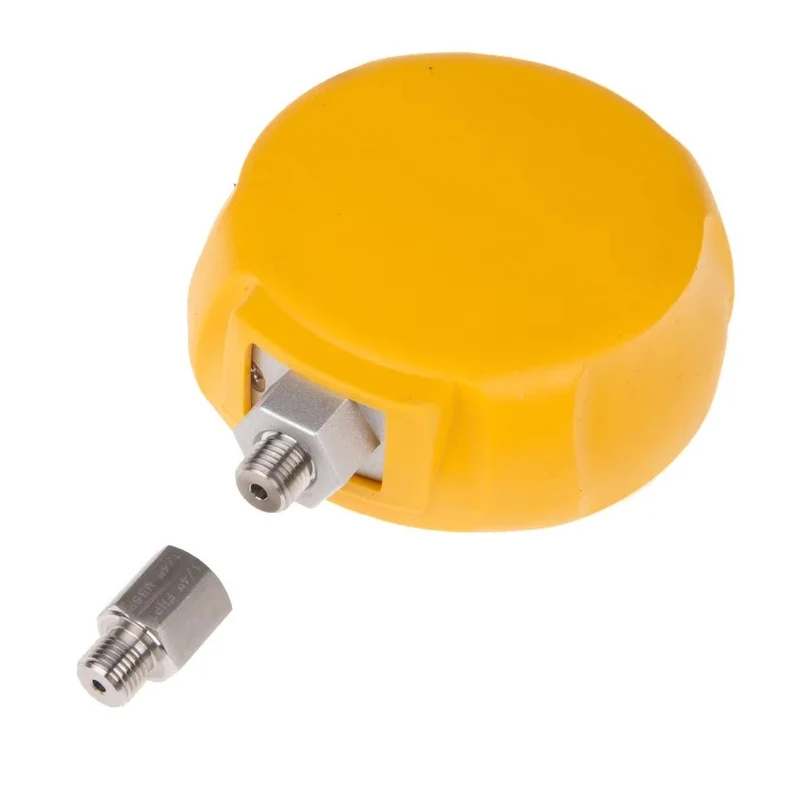

The robust aluminium and cast zinc case construction ensures mechanical protection in challenging field and workshop conditions. The gauge features a bottom entry G 1/4 (1/4 inch NPT male) pressure connection for direct attachment to test points and pump kits.
Data logging capabilities allow storage of up to 8,493 readings accessible via RS232 interface and dedicated software, enhancing traceability and analysis for maintenance and testing.
The Fluke 700G Series carries CSA and ATEX approvals, making it safe for use in hazardous industrial zones such as electrical and automation plants.
Typical applications include commissioning and verifying hydraulic manifolds, calibrating process control transmitters and sensors, routine pneumatic and hydraulic maintenance, and troubleshooting mechanical assemblies.
The package includes a multilingual manual on CD-ROM, a traceable calibration certificate, and a 1/4 in NPT to 1/4 in ISO adapter, offering immediate readiness for field use. This instrument is compatible with pump kits (sold separately) for pneumatic and hydraulic pressure testing up to 600 psi and 10,000 psi respectively.
High accuracy of ±0.05% full scale ensures precise calibration checks. Pressure range covers from vacuum -0.83 bar to high-pressure 34 bar systems. Durable aluminium and cast zinc case protects the gauge in harsh environments.
Log up to 8,493 readings with RS232 interface for extended data capture. Suitable for use in hazardous areas with ATEX and CSA Div 2 approvals. Bottom entry G 1/4 (1/4 inch NPT male) pressure connection ensures easy installation.
Operates reliably between -10°C and 55°C ambient temperatures. Ideal for commissioning, verification, and maintenance of hydraulic and pneumatic systems. Includes multilingual manual, calibration certificate, and a 1/4 in NPT to 1/4 in ISO adapter.
Explore more precision measuring instruments by Fluke in the EnvMart catalog to empower your industrial and laboratory measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement of this model is 34 bar.
It has an accuracy rating of ±0.05% full scale.
The pressure range covers from -0.83 bar (vacuum) to 34 bar (high pressure).
This unit features a bottom entry G 1/4 (1/4 inch NPT male) pressure connection.
It operates reliably between -10°C and 55°C.
The dial size of this model is 114 mm.
It can log up to 8,493 readings accessible via the RS232 interface.
It carries ATEX and CSA Div 2 approvals, making it suitable for hazardous environments.
The case is made of durable aluminium and cast zinc.
The package includes a multilingual manual on CD-ROM, a traceable calibration certificate, and a 1/4 in NPT to 1/4 in ISO adapter.
It is ideal for commissioning, verification, and maintenance of hydraulic and pneumatic systems.
This gauge uses an RS232 interface for data communication.
