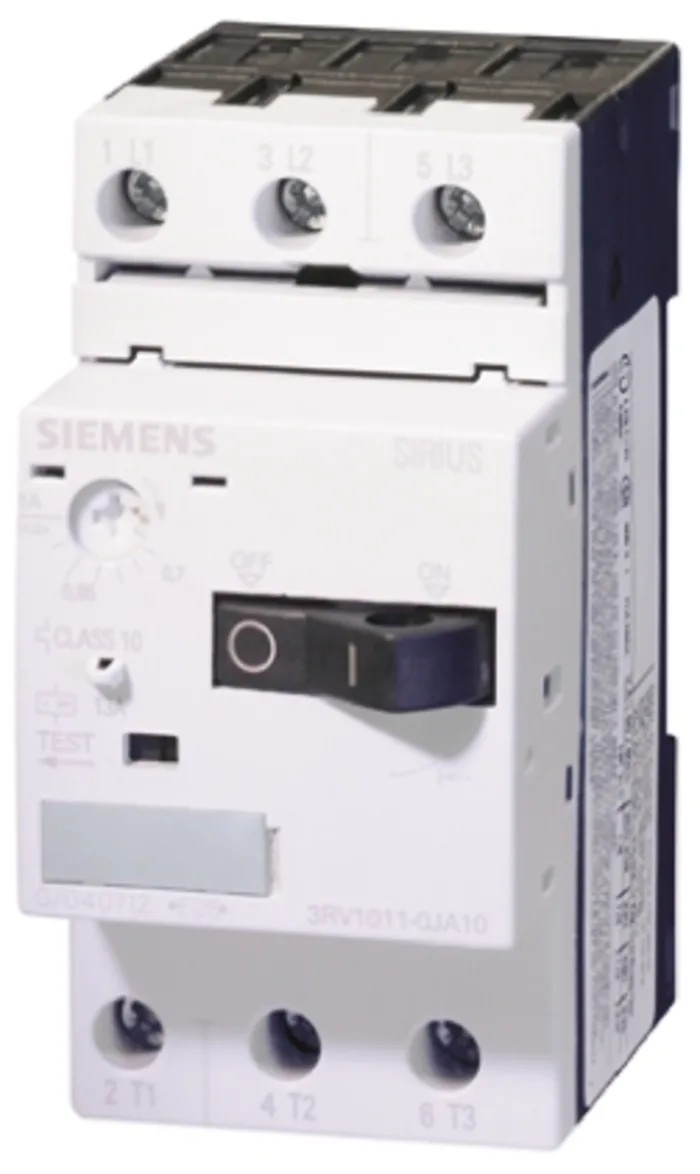

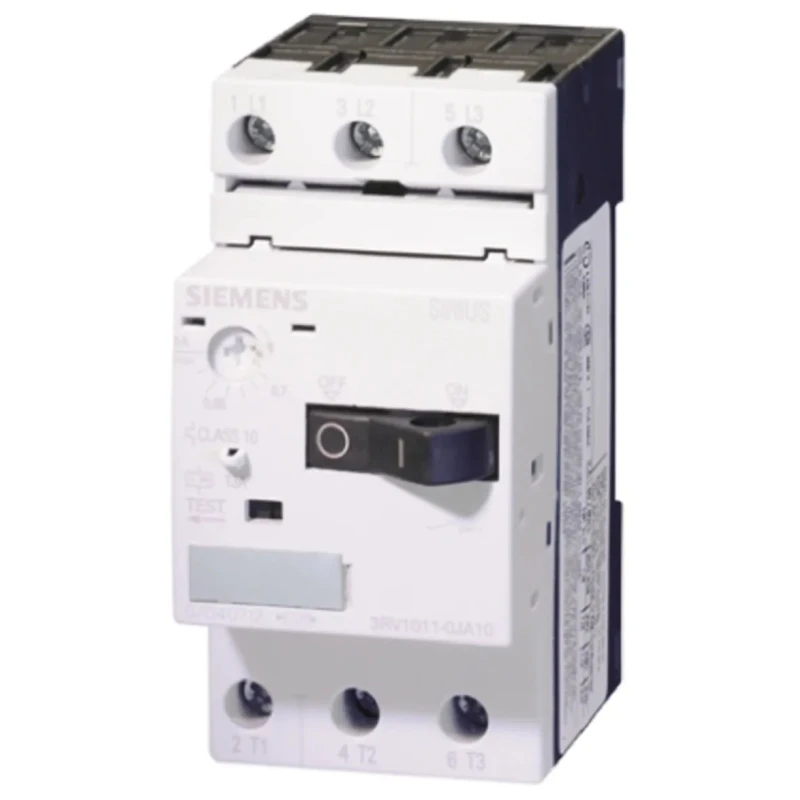

Siemens 3RV1 Series 3 Pole Motor Protection Circuit Breaker 800mA 690V IP20 3RV1011-0HA15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV1011-0HA15 |
| IP Rating | IP20 |
| Overall Length | 90mm |
| Current Rating | 800mA |
| Series | 3RV1 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Reliability | the terminal connection is resistant to shock and vibration |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0990, UL, UKCA, IEC 947, EN60947, CSA |
| Overall Depth | 81mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Time saving | the connection can be made quickly without having to press on end sleeves |
| Reduced maintenance | the cage clamp system means that the checking of screw connections following transportation is unnecessary |
Key Features
- Provides short circuit and overload protection for induction motors.
- Equipped with solid-state electronic release sensitive to phase failure and rotor blockage.
- Compact design suitable for motor feeders with special voltages up to 690V.
- Features Siemens SIRIUS Cage Clamp Technology for reliable, vibration-resistant connections.
- Rated for operating temperatures from -20°C to 60°C with IP20 protection.
- Three-pole configuration with high short circuit breaking capacity.
- Compliance with VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA standards.
- Vertical mounting and reduced maintenance with cage clamp terminals.
Product Description
Siemens 3RV1011-0HA15 is a 3RV1 series motor protection circuit breaker designed for industrial applications requiring robust motor feeder protection up to 690V supply voltage and a current rating of 800mA. This device features a solid-state electronic release that provides optimized protection against short circuits, overloads, phase failure, phase unbalance, and rotor blockage. With a compact and reliable design, it suits applications in HVAC systems, manufacturing plants, and electrical automation.
The circuit breaker supports vertical mounting and offers high short circuit breaking capacity for safe motor control. Integration with Siemens SIRIUS Cage Clamp technology allows quick and reliable electrical connections resistant to shocks and vibrations, diminishing the necessity for maintenance after transportation or installation.
Operating within a temperature range of -20°C up to 60°C, it is protected by an IP20 rated enclosure ensuring safety and durability under industrial conditions. The three-pole design is compliant with international standards such as VDE 0990, UL, IEC 947, EN60947, UKCA, and CSA, highlighting its suitability for demanding motor protection requirements.
This motor protection circuit breaker is ideal for motor feeders requiring compact, efficient protection with reliability and ease of installation. It finds extensive use in industrial automation, motor control centers, and machinery protection in diverse sectors.
Provides short circuit and overload protection for induction motors. Equipped with solid-state electronic release sensitive to phase failure and rotor blockage. Compact design suitable for motor feeders with special voltages up to 690V.
Features Siemens SIRIUS Cage Clamp Technology for reliable, vibration-resistant connections. Rated for operating temperatures from -20°C to 60°C with IP20 protection. Three-pole configuration with high short circuit breaking capacity.
Compliance with VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA standards. Vertical mounting and reduced maintenance with cage clamp terminals. Explore the wide range of Siemens Motor Protection Circuit Breakers and related automation products at EnvMart for reliable industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 800mA, suitable for motor protection applications.
It supports a maximum supply voltage of 690V, making it suitable for various industrial applications.
The operating temperature range for this circuit breaker is from -20°C to 60°C, allowing it to function in diverse environments.
This model features a three-pole configuration, providing effective motor protection.
It has an IP20 rating, indicating protection against solid objects larger than 12.5mm but not against water.
This unit complies with several standards, including VDE 0990, UL, UKCA, IEC 947, EN60947, and CSA.
It utilizes a current sensing type for detecting overloads and short circuits in motor applications.
The overall dimensions are 90mm in length, 45mm in width, and 81mm in depth.
It features Siemens SIRIUS Cage Clamp Technology, which allows for quick and reliable electrical connections resistant to shocks and vibrations.
The cage clamp system reduces maintenance needs by eliminating the necessity to check screw connections after transportation.
This circuit breaker is suitable for applications in HVAC systems, manufacturing plants, and electrical automation.
It supports vertical mounting, making installation straightforward in various setups.
