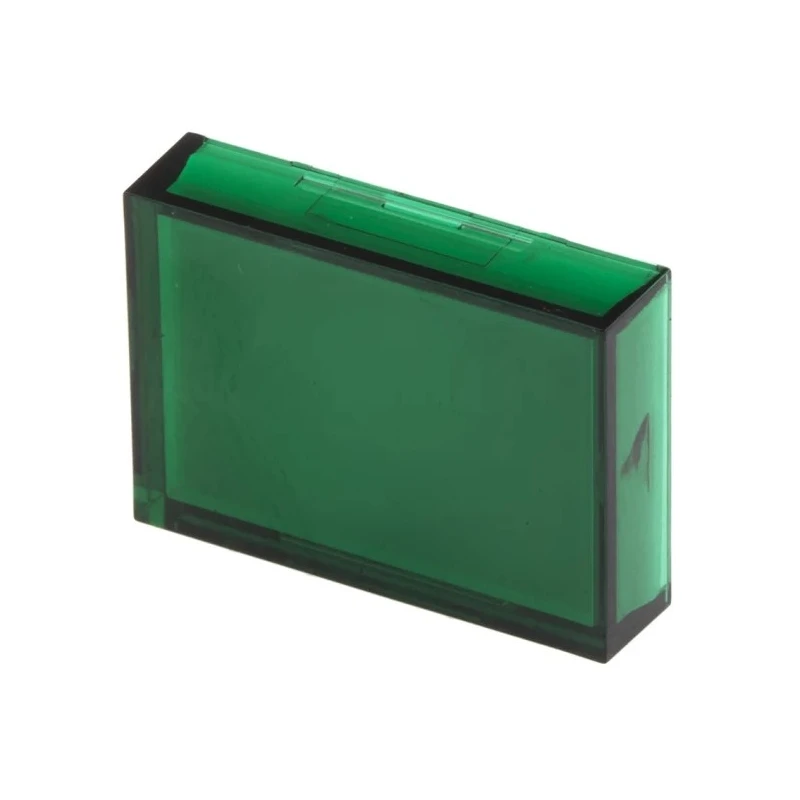

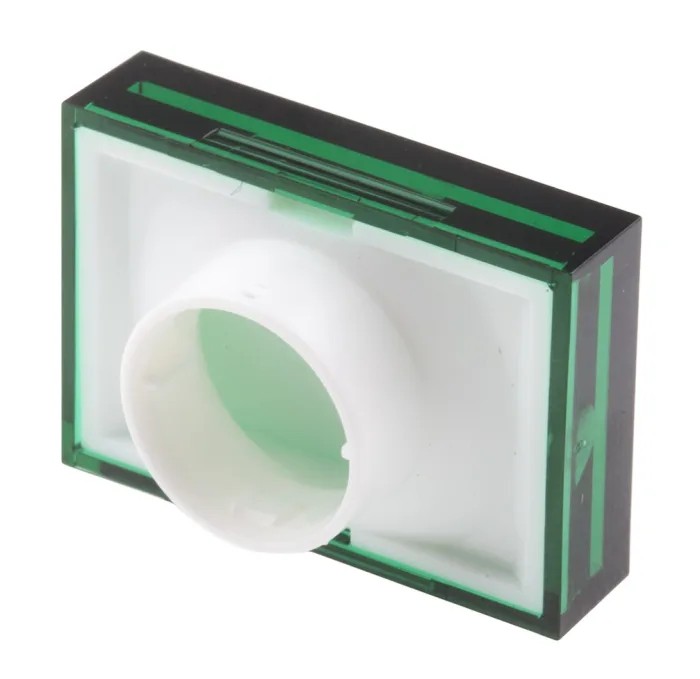

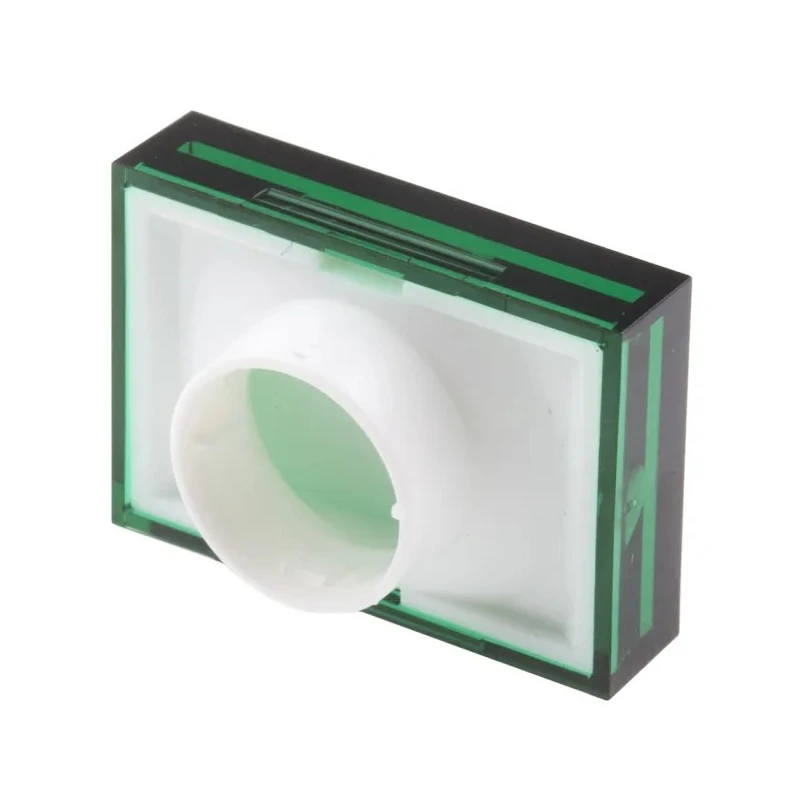

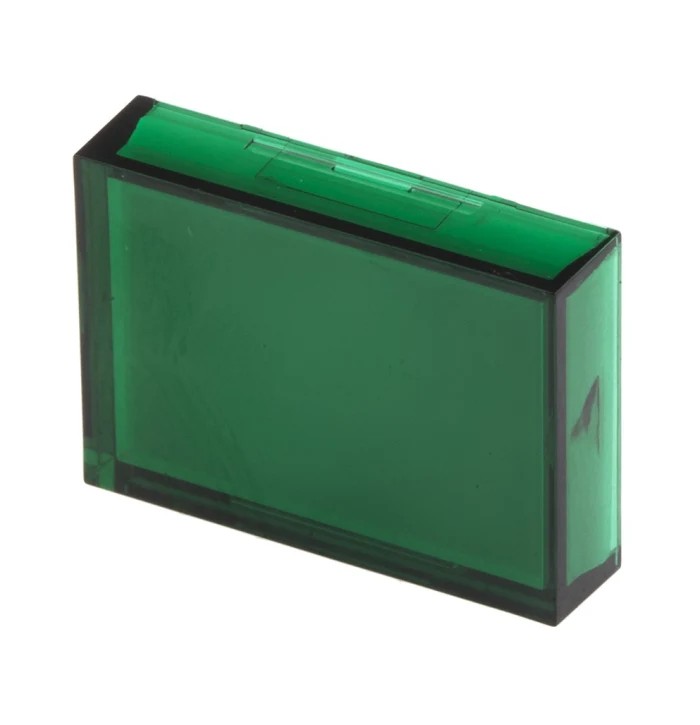

RS PRO Green Rectangular Push Button Lens for Use with ADA16 Series 745-2512
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 9.5mm |
| Length | 21.4mm |
| Model | 745-2512 |
| Width | 15.2mm |
| Lens Colour | Green |
| For Use With | ADA16 Series |
| Lens Shape | Rectangular |
| Green Rectangular Push Button Lens for use with TP2 SeriesBrand | Saia-Burgess |
Key Features
- The lens is rectangular in shape, providing a clear visual indication.
- It features a green color suitable for various signalling applications.
- The lens dimensions are 21.4mm length, 15.2mm width, and 9.5mm height.
- Constructed from polycarbonate material, ensuring durability and engraving capability.
- Compatible with ADA16 Series push button switches and pilot light indicators.
- Provides IP65 waterproof panel sealing when used with the complete push button switch assembly.
- Suitable for illuminated or non-illuminated setups requiring a T1 ¾ (MG5.7s) midget filament lamp or LED.
- Ideal for industrial, automation, and electrical switch applications requiring robust signalling components.
Product Description
RS PRO 745-2512 Green Rectangular Push Button Lens is engineered for use with ADA16 Series push button switches and pilot light indicators. Manufactured from durable polycarbonate, this lens provides a flat profile suitable for industry standard 16mm diameter panel cut-outs and panel thicknesses ranging from 0.5 to 5mm. Its rectangular shape and green color allow clear optical signaling in control panels.
The lens is part of the RS IP65 rated ADA16S Series which offers modular, sub-assembled push button switch components including illuminated and non-illuminated versions with momentary or alternate actions. The IP65 waterproof sealing ensures reliability in industrial and manufacturing environments.
Installation is quick and secure, complementing ADA16 series contact blocks with universal terminals compatible with soldering or plug-in receptacles. The system supports multiple lens colors and shapes, enabling flexible customization for specific signalling needs.
Typical applications include electrical automation, manufacturing control panels, industrial machinery operation, and HVAC control systems requiring rugged and precise indicator lenses. The polycarbonate construction allows engraving for custom labeling.
The lens is rectangular with a green color for visual indication. Features a flat profile and polycarbonate construction for durability. Compatible with ADA16 Series push button switches and pilot light indicators. Supports IP65 waterproof sealing for harsh environments.
Enables use with filament lamps or LEDs for illumination. Fits industry standard 16mm panel cut-outs with thickness from 0.5 to 5mm. Quick assembly as part of modular push button switch components. Ideal for industrial automation, control panels, and electrical signalling applications.
Discover a wide range of switches, indicators, and push button accessories in EnvMart's Electronics & Electricals category for professional industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens measures 21.4mm in length, 15.2mm in width, and 9.5mm in height.
This lens is compatible with the ADA16 Series push button switches and pilot light indicators.
The lens is constructed from polycarbonate material, which allows for durability and engraving capability.
The lens features a green color, suitable for clear visual indication in various signalling applications.
When used with the complete push button switch assembly, it provides IP65 waterproof panel sealing.
It can be used with a T1 ¾ (MG5.7s) midget filament lamp or LED for illumination.
This lens fits industry standard 16mm diameter panel cut-outs.
Installation is quick and secure, complementing ADA16 series contact blocks that have universal terminals compatible with soldering or plug-in receptacles.
Typical applications include electrical automation, manufacturing control panels, industrial machinery operation, and HVAC control systems.
Yes, the system supports multiple lens colors and shapes, allowing for flexible customization for specific signaling needs.
The country of origin for this lens is Taiwan.
The model number of this push button lens is 745-2512.
