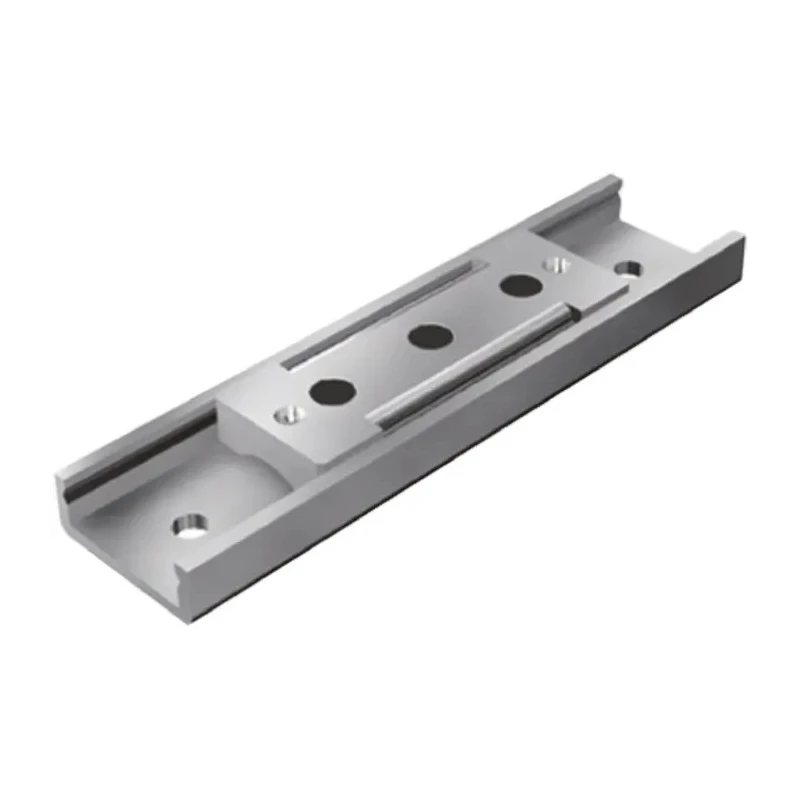

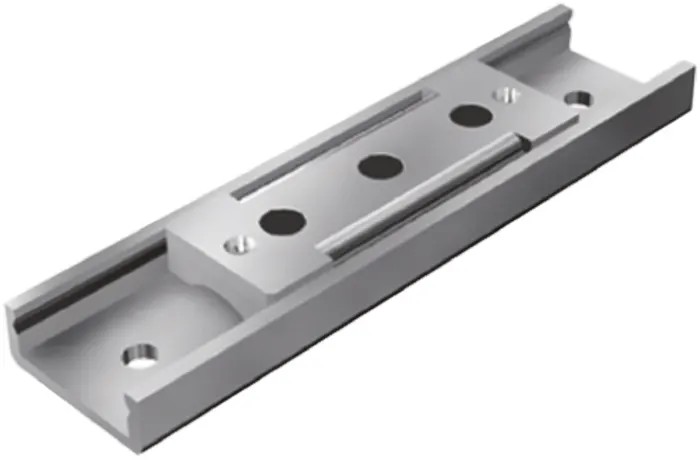

THK Precision Linear Slides ER513+40L, 22 mm Stroke Length, Stainless Steel, Dynamic Load 54.9N, Static Load 72.5N ER513+40L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | THK |
| Model | ER513+40L |
| Series | ER513 |
| Stroke Length | 22mm |
| Static Load Rating | 72.5N |
| Dynamic Load Rating | 54.9N |
| Rail Length | 40mm |
| Carriage Length | 22mm |
| Carriage Width | 13mm |
Key Features
- The ER513+40L model features a stroke length of 22 mm and a rail length of 40 mm.
- Constructed from heat-treated, ground stainless steel, ensuring durability and corrosion resistance.
- Dynamic load rating of 54.9 N and static load rating of 72.5 N for robust performance.
- Designed for precision applications in electronics, medical equipment, semiconductor manufacturing, and more.
- Includes ball slide tables with balls running in V-shaped grooves for smooth linear motion.
- Compact design supports stable performance over extended periods.
- Made in Japan, ensuring high manufacturing quality standards.
Product Description
THK ER513+40L Precision Linear Slides are engineered for precision linear motion with a stroke length of 22 mm and rail length of 40 mm. Manufactured from heat-treated, ground stainless steel, these slides offer corrosion resistance, lightweight construction, and stable performance.
The ER513+40L model belongs to the ER513 series and features a carriage width of 13 mm and carriage length of 22 mm. Its dynamic load rating is 54.9 N and static load rating is 72.5 N, making it capable of withstanding considerable operational forces.
These linear slide packs utilize balls circulating in V-shaped grooves housed within an inner block, providing smooth and accurate linear movement. Their compact size and design make them ideal for use in electronic equipment, semiconductor manufacturing machinery, medical devices, measuring equipment, plotting machines, and photocopiers.
The corrosion resistant stainless steel body ensures longevity even under continuous use, while the lightweight design supports high-speed linear response and durability.
Installation requires mounting screws (not included), with pan head screws size 0 recommended for the outer rail to avoid interference with the inner block. Manufactured in Japan, the THK ER513+40L delivers quality and precision for industrial applications requiring reliable linear motion components.
The ER513+40L features a 22 mm stroke length and 40 mm rail length for precise linear travel. Constructed of corrosion resistant heat-treated stainless steel for durability. Dynamic load rating of 54.9 N supports robust operation in demanding environments.
Static load rating of 72.5 N ensures stability during static loads and positioning. Ideal for use in electronics, semiconductor, medical, and precision measuring equipment. Compact, lightweight design enables high-speed linear actuation with stability.
Requires mounting screws for assembly; pan head size 0 screws recommended. Explore the complete range of precision Linear Slides and motion components suitable for industrial, semiconductor manufacturing, laboratory, and medical applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of the THK ER513+40L model is 22 mm.
The dynamic load rating is 54.9 N, while the static load rating is 72.5 N.
The rail length of the ER513+40L is 40 mm.
It is constructed from heat-treated, ground stainless steel, providing corrosion resistance and durability.
The carriage width is 13 mm and the carriage length is 22 mm.
This model is designed for precision applications in electronics, medical equipment, and semiconductor manufacturing.
It provides smooth linear motion with balls circulating in V-shaped grooves within the inner block.
Pan head screws size 0 are recommended for mounting to avoid interference with the inner block.
It is manufactured in Japan, ensuring high manufacturing quality standards.
The weight of this model is not specified in the provided data.
No accessories are included with this model; it requires mounting screws for installation.
It features a compact design that supports stable performance over extended periods.
