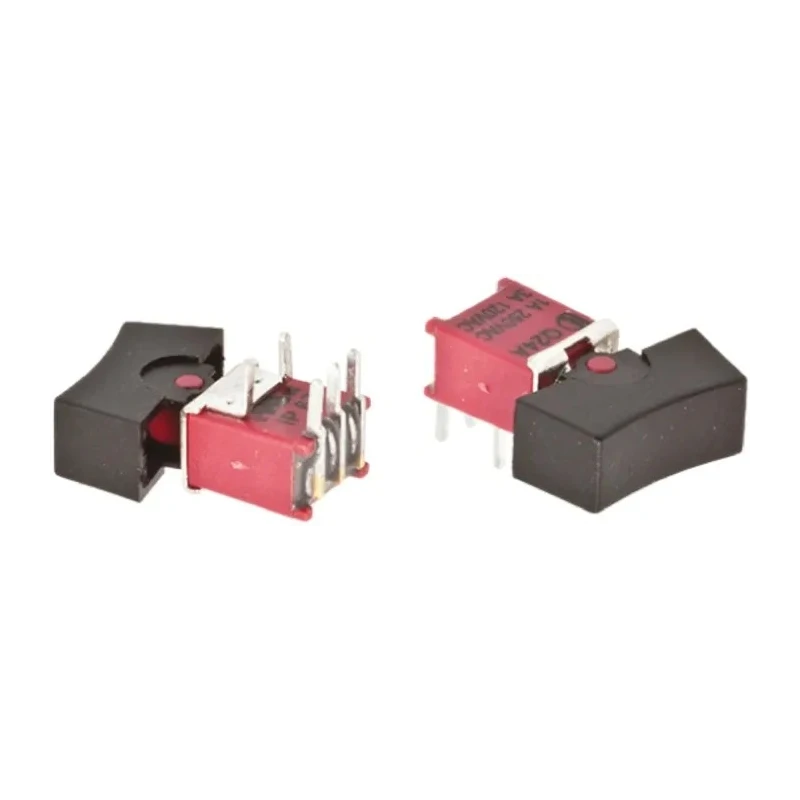

RS PRO SPDT On-On On-(On) Rocker Switch Panel Fibreglass Reinforced Nylon Housing IP67 400mA 20V dc 250V ac 734-6886

RS PRO 734-6886 is a sealed sub-miniature rocker switch panel featuring SPDT contact configuration and On-On On-(On) switch operation, designed for panel mount applications. The switch is constructed with fibreglass reinforced nylon housing providing strength and heat resistance, making it ideal for both industrial and commercial electrical circuits.

This model offers IP67 ingress protection, achieved through a sealed design with an O-ring on the actuator, allowing it to withstand exposure to dust and water. It supports a contact current rating of 400mA and is rated for contact voltages 20V dc and 250V ac, suitable for a wide range of electrical control tasks.

The rocker actuator is black and rectangular in style, ergonomically designed for ease of use. Mounting is via panel cutout size of 7.11 x 15.75 mm, with right-angle PC terminals for secure circuit board connection. The switch has a rated mechanical life of 30,000 operations, ensuring reliability and durability over extended use.

Operating temperature capability ranges from -30°C up to 85°C, allowing for versatility in harsh environments. The housing material meets UL94V0 flame retardant standards and is heat stabilized, enhancing safety in usage.

Compliant with international standards including BS, CE, CSA, RoHS, UL, and VDE certifications, this rocker switch is fit for global applications. The product is manufactured in Taiwan, Province Of China.

The rocker switch panel provides IP67 waterproof rating for reliable performance in harsh environments. Supports a maximum switch contact current of 400mA for medium-current applications. Rated for contact voltages of 20V dc and 250V ac suitable for varied electrical systems.

Actuator is black with a rectangular style designed for panel mounting installation. This switch has a mechanical life of 30,000 operations ensuring long service life. Operating temperature range spans from -30°C to 85°C for industrial and commercial use.

Right-angle PC terminal type facilitates easy PCB mounting and connection. Constructed with a flame retardant, heat stabilized Nylon 6/6 housing. Sealed design with an O-ring on the actuator ensures protection against dust and water ingress.

Meets standards and approvals from BS, CE, CSA, RoHS, UL, and VDE for comprehensive compliance.

This rocker switch panel is widely applicable in electronics, electrical automation, instrumentation, HVAC controls, and industrial machinery control panels. Designed to improve operational reliability and installation convenience, the RS PRO 734-6886 switch meets the stringent demands of modern industrial environments.
