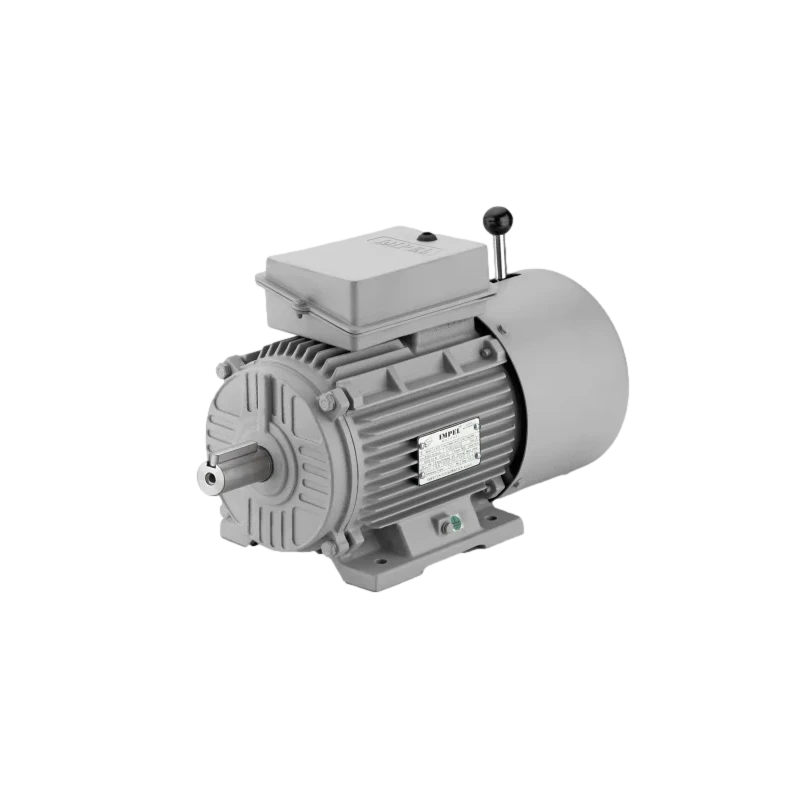

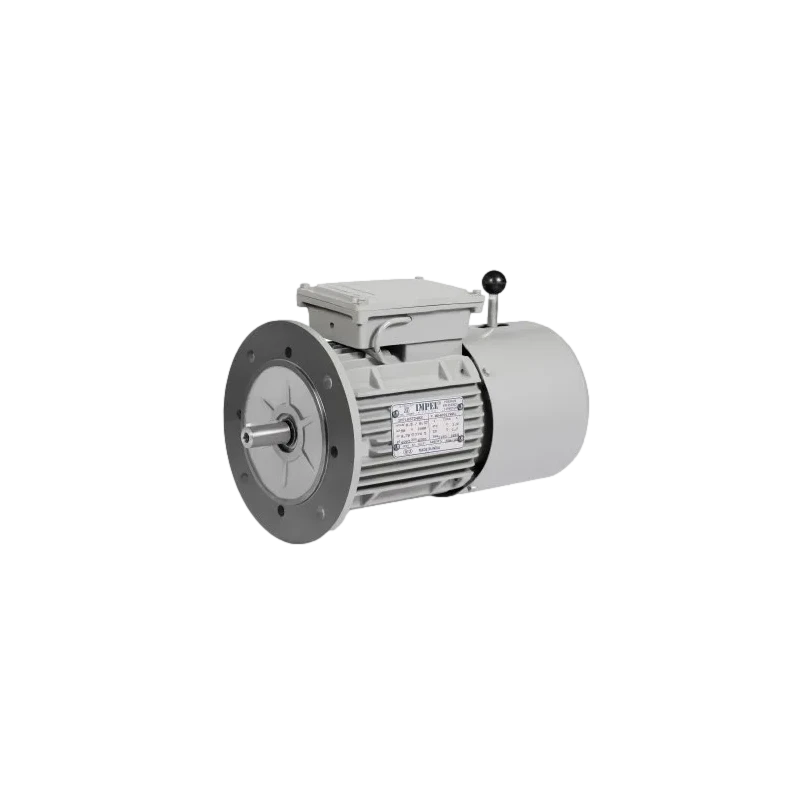

Impel 1.5HP 6 Pole Flange Mounting DC Break Motor Frame Size 90L
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 1.1 kW |
| Power (HP) | 1.5 HP |
| Motor Type | AC Induction DC Brake Motor (with Emco make brake) |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1000 RPM |
| No. of Poles | 6 |
| Supply | 3 Phase AC |
| Duty Type | S1 (Compatible to S4) |
| Class of insulation | F |
| Frame Size (ISI) | 90L |
| Temperature rise | Limited to class B |
| Break Size (No.) | 12 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 1.5HP 6 Pole Flange Mounting DC Break Motor Frame Size 90L From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 1.5 HP, which is equivalent to 1.1 kW.
It features flange mounting (B5) for installation.
The rated speed of this motor is 1000 RPM.
The motor operates at a voltage of 415V with a tolerance of ±10%.
The motor operates at a frequency of 50Hz with a tolerance of ±5%.
This model has a protection type rating of IP55.
The maximum ambient temperature for this motor is 50 ºC.
This motor has 6 poles.
The body of the motor is made from cast iron.
This motor can operate at altitudes up to 1000 meters above sea level.
The motor has a class of insulation rated as F.
This model is rated for S1 duty type, which is compatible with S4 duty type as well.
