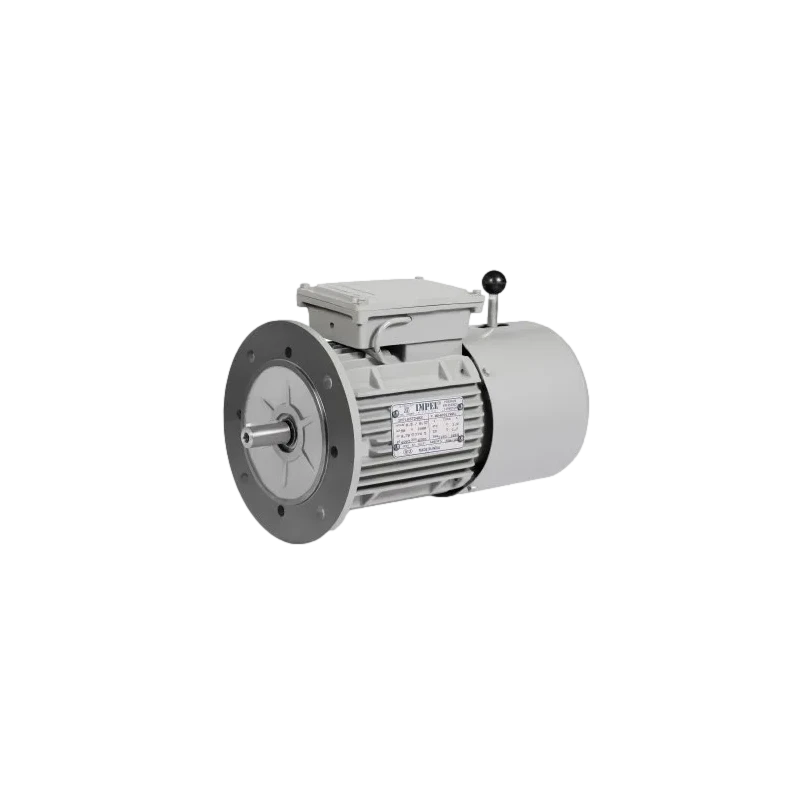

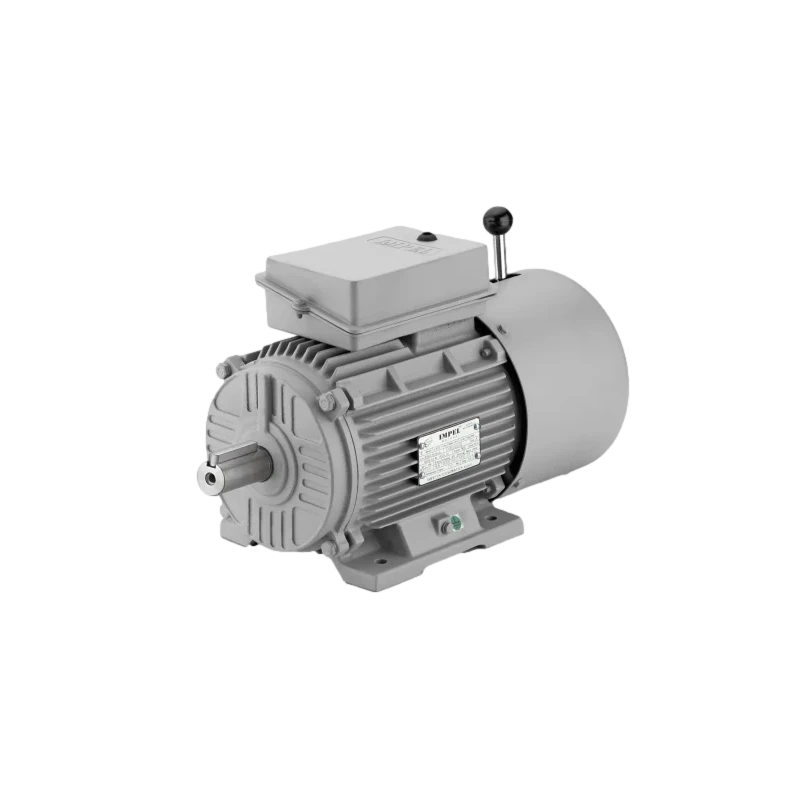

Impel 12.5HP 4 Pole Flange Mounting DC Break Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP55 |
| Altitude | 1000M above sea level |
| Power Rating (kW) | 9.3 kW |
| Power (HP) | 12.5 HP |
| Motor Type | AC Induction DC Brake Motor (with Emco make brake) |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 1500 RPM |
| No. of Poles | 4 |
| Supply | 3 Phase AC |
| Duty Type | S1 (Compatible to S4) |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Temperature rise | Limited to class B |
| Break Size (No.) | 20 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 12.5HP 4 Pole Flange Mounting DC Break Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 12.5 HP, which is equivalent to 9.3 kW.
This model is an AC Induction DC Brake Motor, specifically designed with an Emco make brake.
The rated speed of this motor is 1500 RPM.
It operates at a voltage of 415V with a tolerance of ±10%.
The motor operates at a frequency of 50Hz with a tolerance of ±5%.
This unit features flange mounting (B5), suitable for various industrial applications.
The motor has a protection rating of IP55, indicating it is dust-tight and protected against water jets.
The motor can operate in ambient temperatures up to 50 ºC.
This motor is rated for operation at altitudes up to 1000 meters above sea level.
The motor has a class of insulation rated as F.
It is rated for S1 duty type, which is compatible with S4 duty type as well.
The body of the motor is constructed from cast iron, providing structural integrity.
