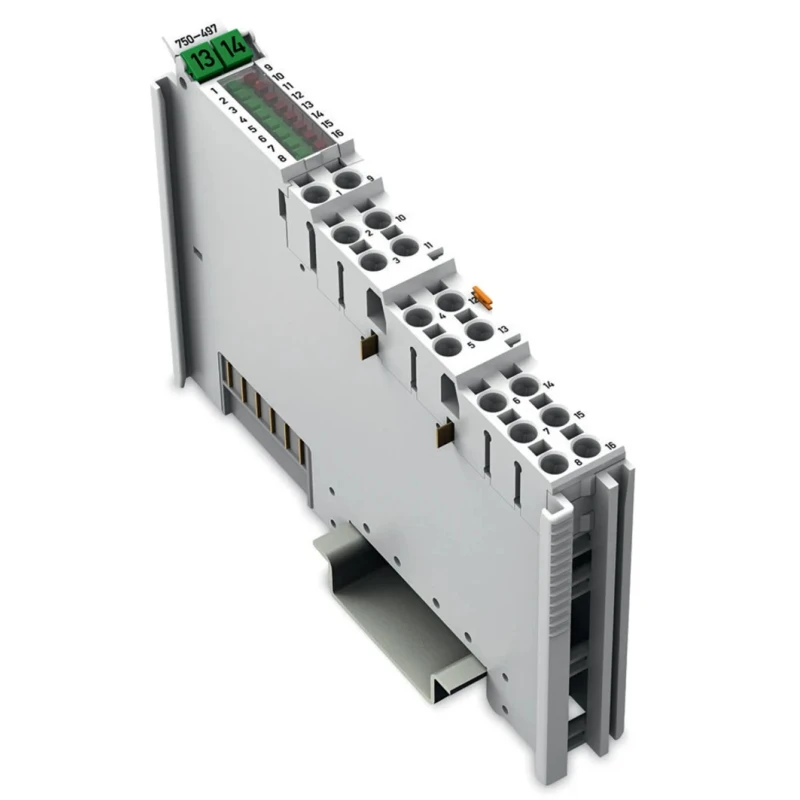

WAGO 8 Channel Analogue Voltage Input Module DIN Rail Mount 24V 750-497
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | WAGO |
| Length | 3.937in |
| Model | 750-497 |
| Depth | 69mm |
| Width | 0.472in |
| Mount Type | DIN Rail |
| Series | 750 |
| Input Type | Voltage |
| Maximum Operating Temperature | 55°C |
| Standards/Approvals | UL, EAC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 240-7937Brand: WAGOManufacturers Part No.: 750-497 |
| Maximum Supply Voltage | 24V |
| Number of I/Os | 8 |
Key Features
- Processes standard 0-10 VDC and ±10 V signals with high resolution.
- Provides electrical isolation of input signals for safe transmission.
- Features red LED indication for signals out of measurement range.
- Compact design minimizes space requirements in control panels.
- Rated for maximum operating temperature of 55°C ensuring reliable performance.
- DIN-35 rail mounting for easy installation in industrial environments.
- IP20 rated housing provides basic protection against solid objects.
- Supports deactivation of unused channels to optimize system resources.
Product Description
WAGO 750-497 is an 8 channel analogue input module designed for processing voltage signals in industrial automation applications. It accepts standard 0-10 VDC and ±10 V input signals, providing resolution of 12 bits for accurate analog-to-digital conversion. Each channel features electrical isolation to prevent interference and ensure signal integrity.
The module has a compact form factor with dimensions of approximately 3.937 inches in length, 0.472 inches in width, and 69 mm in depth, designed to be mounted on a DIN-35 rail for simplified integration within control panels.
It is rated for continuous operation with a maximum supply voltage of 24 V and can safely operate up to 55°C ambient temperature, making it suitable for a wide range of industrial, manufacturing, HVAC, and laboratory automation systems. The IP20 housing rating offers protection against solid foreign objects commonly found in industrial environments.
An LED indicator alerts users when signals exceed measurement ranges, enabling quick diagnostics. The ability to deactivate unused input channels helps optimize system performance and power consumption. Standards compliance includes UL and EAC certifications, ensuring adherence to recognized safety and quality benchmarks.
Processes standard 0-10 VDC and ±10 V voltage signals accurately. Electrical isolation enhances signal safety and performance. Compact size with DIN rail mount eases installation. Red LED indicates out-of-range signals for easy monitoring.
Maximum operating temperature of 55°C allows use in industrial settings. IP20 rated enclosure protects against solid objects. Unused channels can be selectively deactivated. Certification compliance with UL and EAC standards.
This analogue module is suitable for integration in industrial automation systems, PLC I/O expansion, process control environments, water treatment facilities, manufacturing lines, and other commercial automation applications requiring precise voltage input measurements.
Explore the full range of PLC IO Modules at EnvMart for compatible automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It processes standard 0-10 VDC and ±10 V input signals.
This model supports 8 channels for analogue voltage input.
The maximum operating temperature is rated at 55°C.
It is designed for DIN-35 rail mounting, facilitating easy installation in control panels.
The module provides a resolution of 12 bits for accurate signal processing.
The dimensions are approximately 3.937 inches in length, 0.472 inches in width, and 69 mm in depth.
Yes, each channel features electrical isolation to enhance signal safety and integrity.
It complies with UL and EAC standards, ensuring adherence to recognized safety and quality benchmarks.
The red LED indicates when input signals exceed the measurement range, allowing for quick diagnostics.
Yes, the module allows for the deactivation of unused input channels to optimize system resources.
The maximum supply voltage is 24V.
It is suitable for integration in industrial automation systems, PLC I/O expansion, process control environments, and more.
