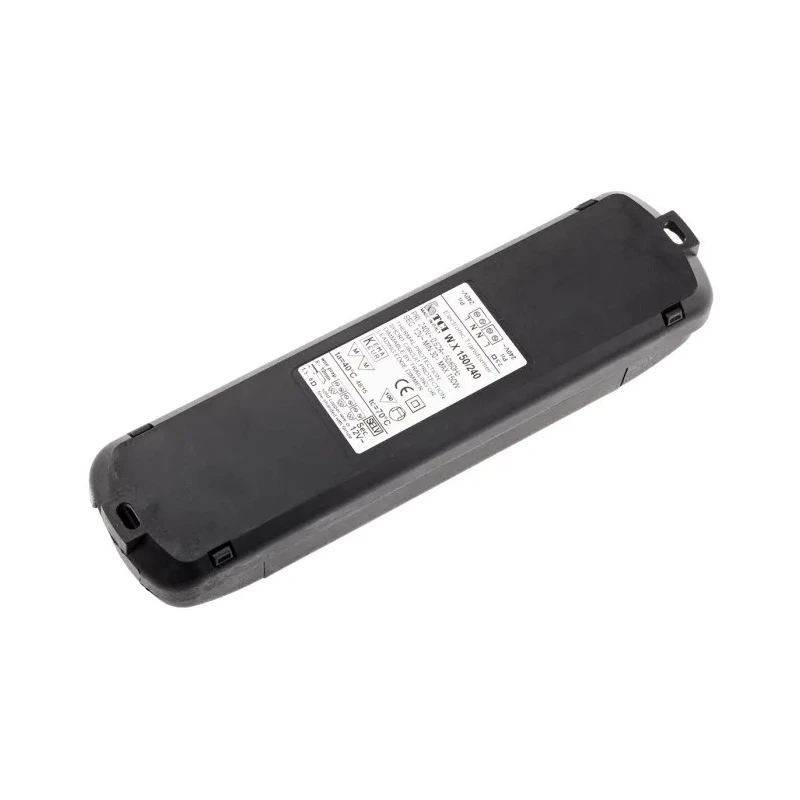

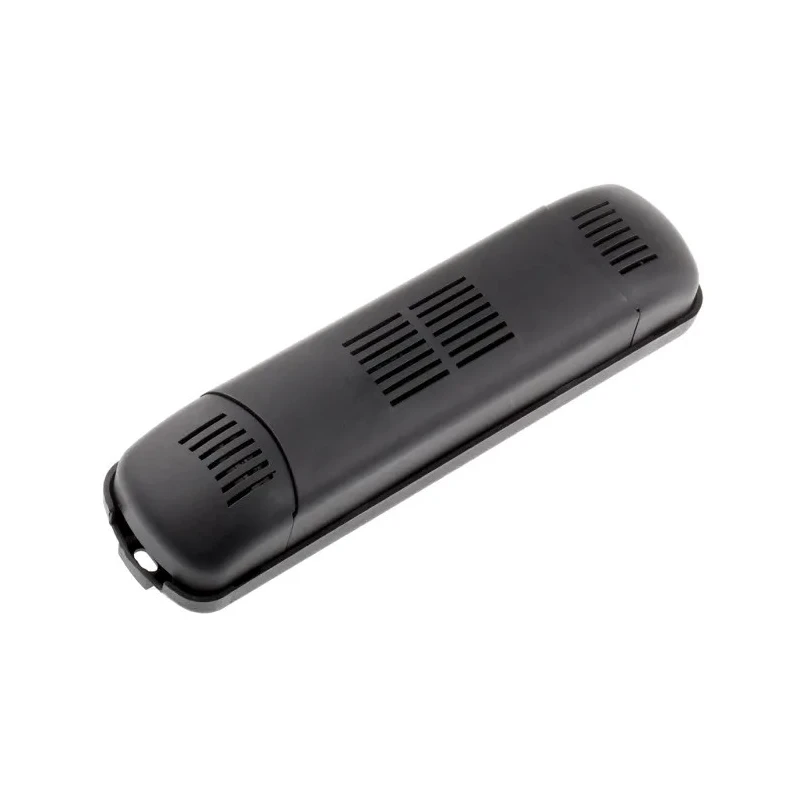

RS PRO Dimmable Electronic Light Transformer 150W 230 to 240 V AC Input 12 V Output 714-1381

RS PRO 714-1381 is a high-quality dimmable electronic light transformer with a power rating of 150 W, designed for use with 12 V halogen lamps. It operates on an input voltage range of 230 to 240 V AC, making it suitable for a variety of lighting applications in industrial, commercial, and residential environments.

This transformer offers reliable protection against electric shock through its design that fulfills Class II protection standards. It is engineered with safety features including protection against overheating, short-circuits, voltage spikes, and overloads, ensuring safe and stable operation in diverse conditions.

Featuring a screw-type termination and mounting system, it allows secure and easy installation. The device includes opposite inlet and outlet terminals, a terminal cover, and a cable retainer to organize cables and improve installation safety.

The compact size, measuring 190 mm in length, 49 mm in width, and 39 mm in depth, along with its lightweight of 205 g, ensures it can be integrated conveniently into lighting fixtures or systems. It supports dimming via trailing-edge dimming methods, providing smooth and precise brightness control using compatible dimmer switches.

RS PRO 714-1381 complies with established electrical standards such as EN 61347-2-2, VDE 0710-T14, EN 61347-1, EN 61547, EN 55015, EN 60598-1, and EN 61000-3-2, affirming its quality and safety for professional use.

Its operating frequency range spans from 50 Hz to 60 Hz, and it functions reliably within an ambient temperature range from 40°C to 70°C, making it versatile for varied environmental conditions.

This transformer is ideal for use in industry sectors including electrical, automation, lighting systems, HVAC, commercial lighting, and residential applications where efficient dimmable low-voltage lighting is required.

This transformer supports dimming with trailing-edge dimmers for smooth light intensity control. It features a screw termination and mounting type for secure installation. Equipped with protections against overheating, short-circuits, mains voltage spikes, and overloads.

Constructed to meet several industry standards including EN 61347-2-2 and VDE 0710-T14 for electrical safety. Compact dimensions of 190 mm length, 49 mm width, and 39 mm depth with a lightweight design of 205 g. Suitable for applications requiring protection and dimmability, such as residential and commercial lighting systems.

Includes features like opposite inlet and outlet terminals, terminal cover, and cable retainer for installation convenience. Operates efficiently within frequency range of 50 to 60 Hz and temperature range from 40°C minimum to 70°C maximum.
