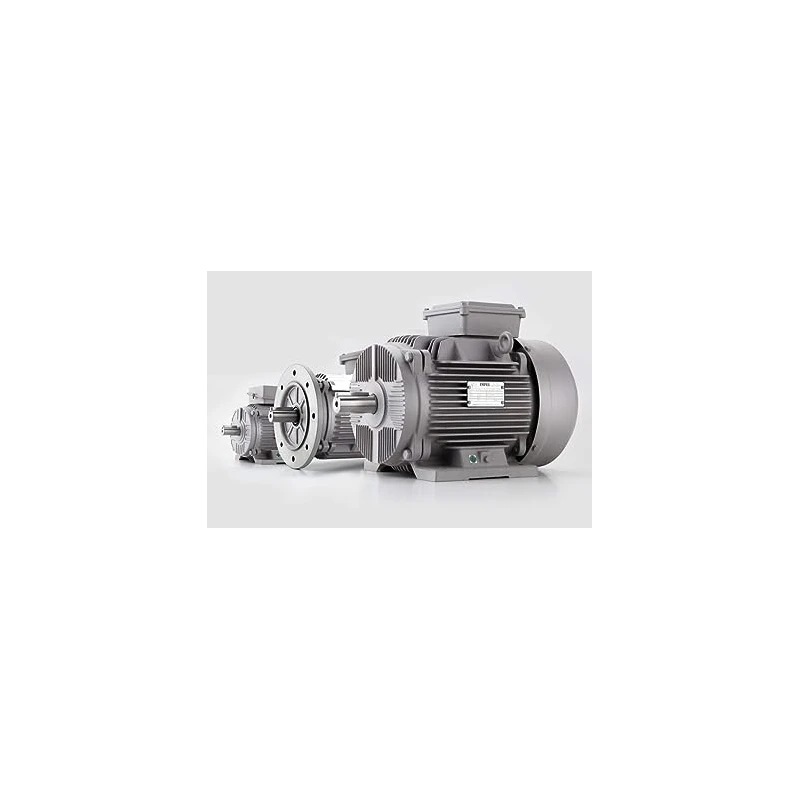

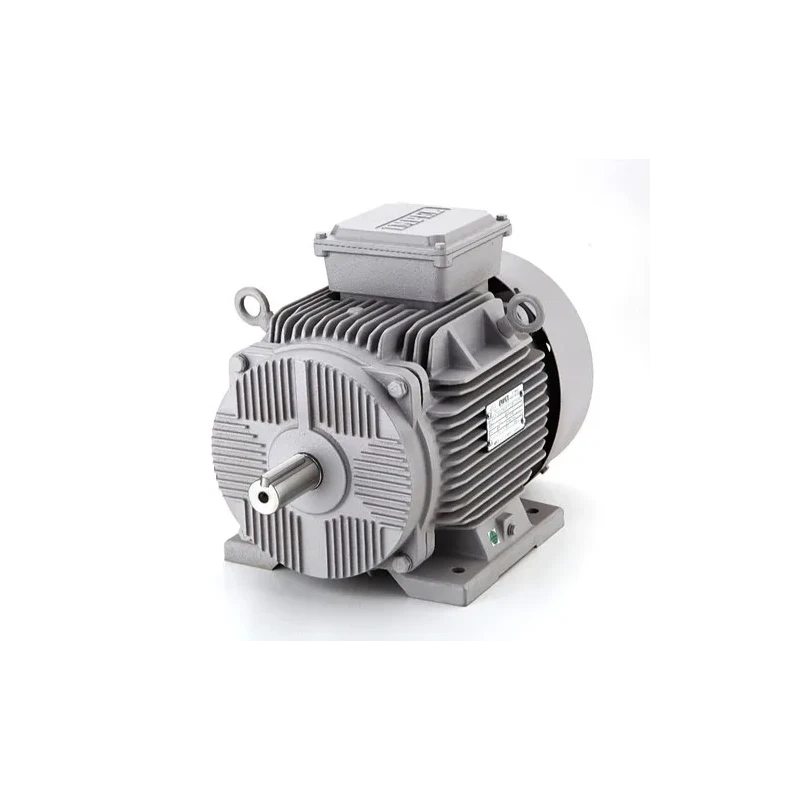

Impel 20HP 6 Pole Flange Mounting AC Induction Motor Frame Size 180L
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Flange mounting (B5) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 15 kW |
| Power (HP) | 20 HP |
| Motor Type | TEFC Squirrel Cage A C Induction Motor |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 960 RPM |
| Power Factor | 0.82 |
| No. of Poles | 6 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 48 mm |
| Class of insulation | F |
| Frame Size (ISI) | 180L |
| Full Load Ampere At 415V | 28 |
| Rated Torque (Kgm) | 14.77 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 210 |
| POT Torque % | 246 |
| FL Efficiency (%) IE2 | 0.897 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 20HP 6 Pole Flange Mounting AC Induction Motor Frame Size 180L From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 20 HP, which is equivalent to 15 kW.
The rated speed of this motor is 960 RPM.
It operates at a voltage of 415V with a tolerance of ±10%.
This model features flange mounting (B5).
The motor has a protection type of IP44/IP55.
It can operate in ambient temperatures up to 50 ºC.
This motor is designed for 3-phase operation.
The full load current at 415V is 28 Amperes.
The motor features a class F insulation.
The rated torque is 14.77 Kgm.
The power factor of this model is 0.82.
The body of the motor is made from cast iron.
