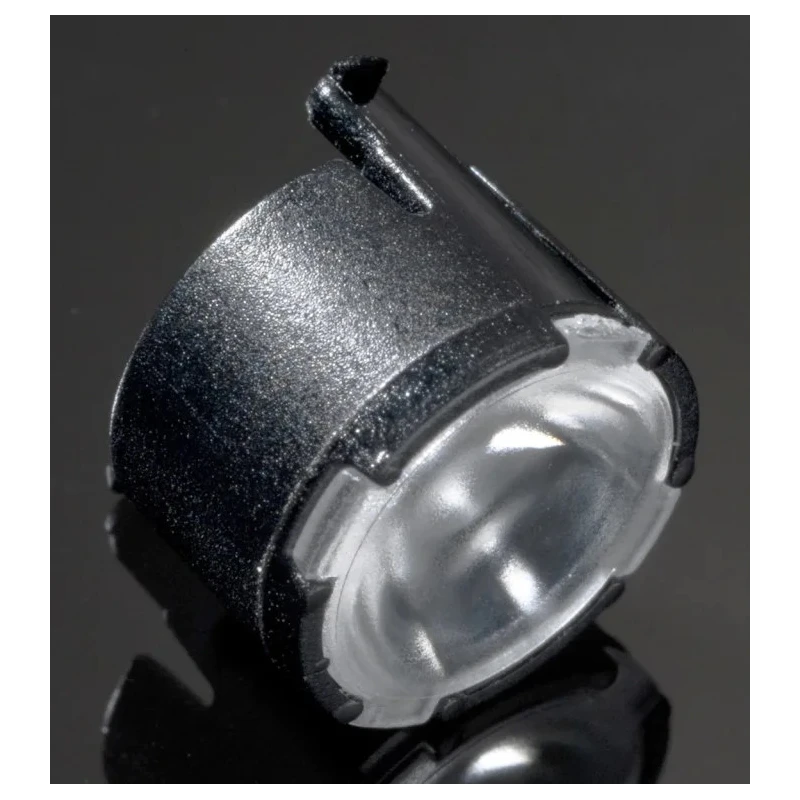

Ledil Lisa2 Series 1-Way LED Lens 25 to 35° Medium Angle Beam
Specifications
| Country of Origin | Finland |
|---|---|
| Diameter | 9.9mm |
| Brand | Ledil |
| Height | 6.8mm |
| Model | Lisa2 |
| Series | Lisa2 |
| Viewing angle | 25 to 35 ° |
| Lens Material | Polymethyl Methacrylate |
| Lens Colour | Black |
| For Use With | Luxeon Rebel Series of LEDs |
| Lens Type | Clip |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-7647Brand: LedilManufacturers Part No.: FP11072_LISA2-M-CLIP |
| Lens Shape | Round |
| Emission Pattern | Medium Angle |
| Fixing Method | Integrated holder with small snap clips |
| Number of LEDs Per Lens | 1 |
Key Features
- Constructed from high-grade Polymethyl Methacrylate for excellent UV and temperature resistance.
- Designed with an integrated holder featuring small snap clips for easy installation.
- Compact round lens with a diameter of 9.9 mm and height of 6.8 mm.
- Produces uniform light output optimized for spot to medium angle beam patterns.
- Compatible specifically with Luxeon Rebel series LEDs for precise beam control.
- Manufactured in Finland maintaining premium build quality standards.
Product Description
Ledil Lisa2 Series 1-Way LED Lens FP11072_LISA2-M-CLIP is an optical-grade round lens assembly designed for use with a single Luxeon Rebel LED. It features a medium angle beam with a viewing angle ranging from 25 to 35 degrees, facilitating uniform and focused LED light emission suitable for various industrial and commercial LED lighting applications.
Crafted from Polymethyl Methacrylate (PMMA), this lens offers high resistance to UV exposure and elevated temperatures ensuring durability and stable optical performance over time. The lens is mounted within a plastic holder equipped with small integrated snap clips that secure it efficiently without additional fasteners.
The lens has a precise diameter of 9.9 mm and a height of 6.8 mm, allowing compact form factor assemblies in LED modules. This design is optimized to direct light with minimal losses and ideal for spot to medium angle illumination requirements in environments such as architectural lighting, signage, display lighting, and other specialty LED installations.
The product is made in Finland and conforms to strict manufacturing standards, although no explicit certifications are declared. High optical grade PMMA lens material provides superior UV and temperature resistance. Integrated small snap clip holder ensures secure and simple mounting.
Compact size with 9.9 mm diameter and 6.8 mm height suits tight LED assemblies. Medium angle emission pattern (25 to 35°) produces focused yet uniform illumination. Optimized specifically for Luxeon Rebel series LEDs for consistent beam shaping.
Ideal for industrial, commercial, architectural, and specialty LED lighting solutions, this LEDil Lisa2 lens enables precise light control and performance. Explore the full range of LEDil Lisa2 lenses to suit different beam angles and applications.
Browse our category for LED Lighting Components to access a wide selection of compatible optical solutions and technical support resources.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of this lens ranges from 25 to 35 degrees, providing a medium angle beam pattern for focused illumination.
This model has a diameter of 9.9 mm and a height of 6.8 mm, making it suitable for compact LED assemblies.
It is constructed from high-grade Polymethyl Methacrylate (PMMA), which offers excellent UV and temperature resistance.
The Lisa2 lens is specifically designed for use with Luxeon Rebel series LEDs, ensuring precise beam control.
The lens features an integrated holder with small snap clips that allow for easy and secure installation without additional fasteners.
It produces a medium angle emission pattern, optimized for spot to medium angle illumination applications.
This lens is manufactured in Finland, adhering to strict quality standards.
It is ideal for various industrial and commercial lighting solutions, including architectural lighting, signage, and display lighting.
The lens has a round shape, which is typical for many LED lighting applications.
The lens includes an integrated holder with snap clips, which are essential for its mounting but does not come with additional accessories.
It is designed to produce uniform light output optimized for focused illumination, minimizing light losses.
It is a 1-way LED lens designed for single LED use, specifically tailored for focused lighting applications.
