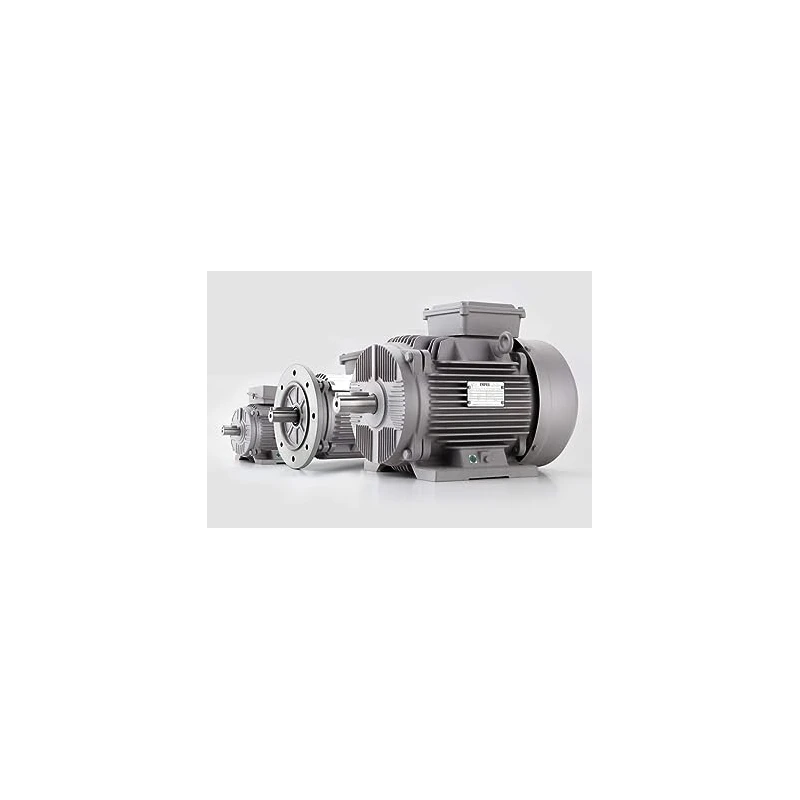

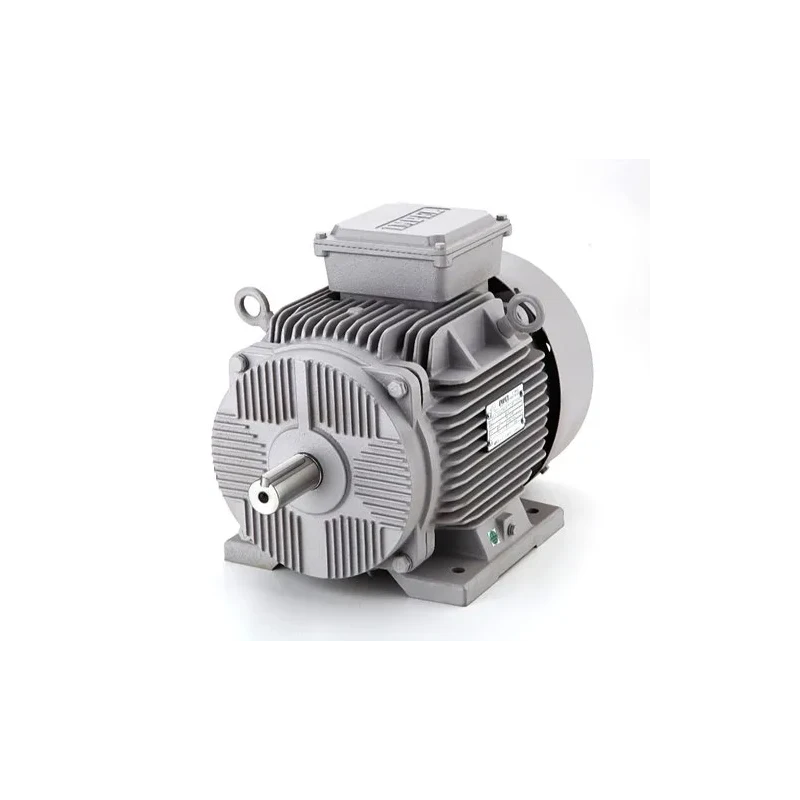

Impel 3 Phase 20HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 160M
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 15 kW |
| Power (HP) | 20 HP |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.88 |
| No. of Poles | 2 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 42 mm |
| Class of insulation | F |
| Frame Size (ISI) | 160M |
| Full Load Ampere At 415V | 27.2 |
| Rated Torque (Kgm) | 4.90 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 200 |
| POT Torque % | 240 |
| FL Efficiency (%) IE2 | 0.903 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 3 Phase 20HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 160M From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 20 HP, which is equivalent to 15 kW.
The rated speed of this motor is 2880 RPM.
It operates at a voltage of 415V with a tolerance of ±10%.
This model features foot mounting (B3).
The motor can operate in ambient temperatures up to 50 ºC.
It has a protection rating of IP44/IP55.
This motor operates on a 3-phase system.
The full load efficiency of this motor is 90.3% (IE2).
The shaft diameter is 42 mm.
The power factor is rated at 0.88.
This model comes with a warranty period of 2 years.
The duty type is classified as S1/Continuous.
