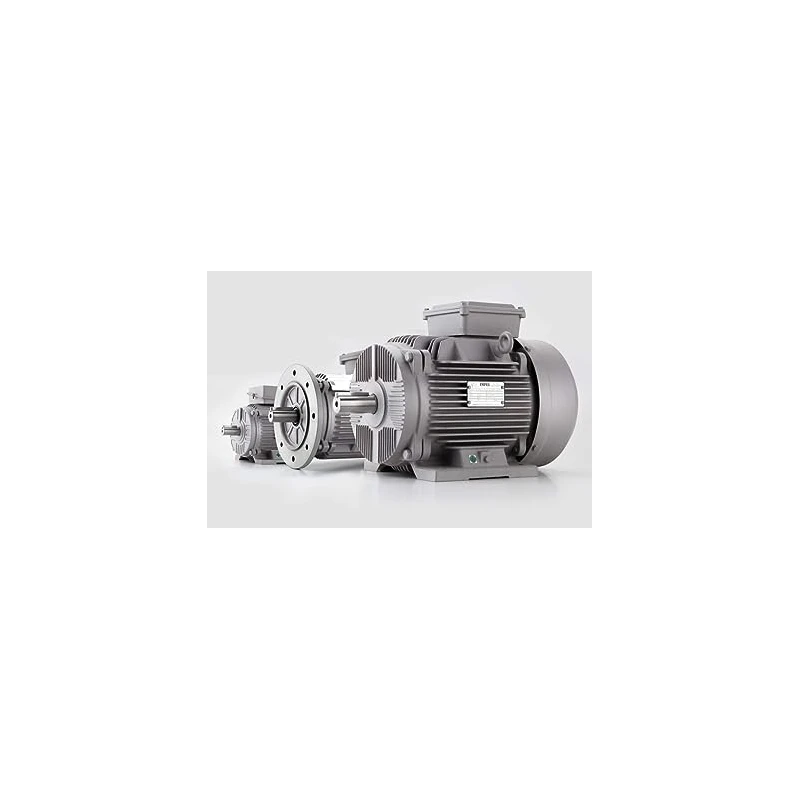

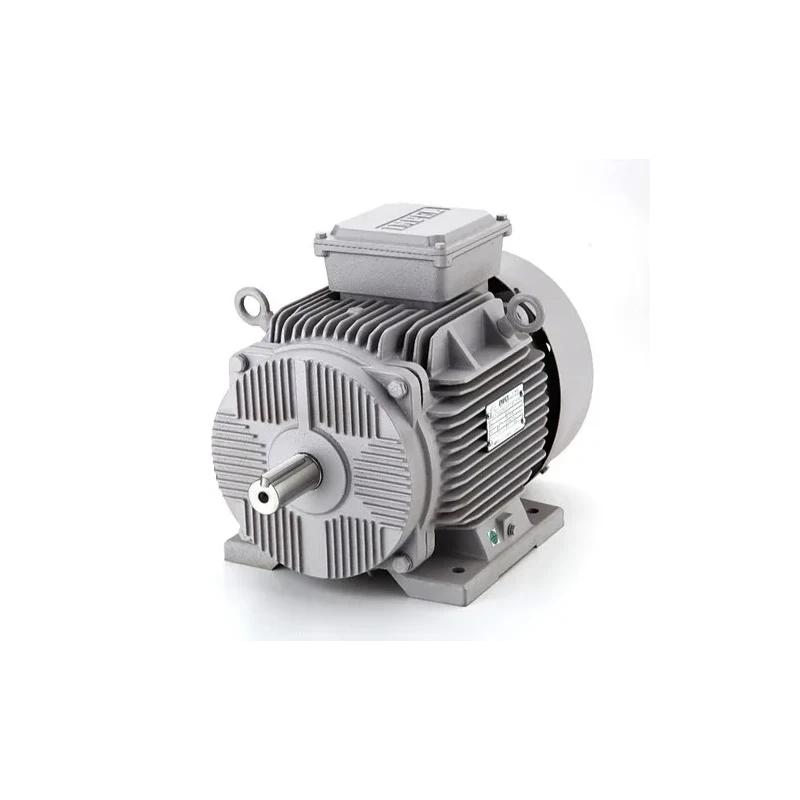

Impel 3 Phase 0.5HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 71
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 0.37 kW |
| Power (HP) | 0.5 HP |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.85 |
| No. of Poles | 2 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 14 mm |
| Class of insulation | F |
| Frame Size (ISI) | 71 |
| Full Load Ampere At 415V | 1 |
| Rated Torque (Kgm) | 0.13 Kgm |
| STG Current % FLC | 500 |
| STG Torque % FLT | 210 |
| POT Torque % | 245 |
| FL Efficiency (%) IE2 | 0.695 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 3 Phase 0.5HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 71 From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 0.5 HP, which is equivalent to 0.37 kW.
It operates at a voltage of 415V with a tolerance of ±10%.
This motor supports foot mounting (B3).
The rated speed of this motor is 2880 RPM.
The motor is designed to operate at an ambient temperature of up to 50 ºC.
It has a protection type of IP44/IP55.
The motor features a class of insulation rated as F.
This motor is a 2 pole design.
The power factor of this model is 0.85.
The full load ampere at 415V is rated at 1 A.
The rated torque is 0.13 Kgm.
The motor comes with a warranty period of 2 years.
