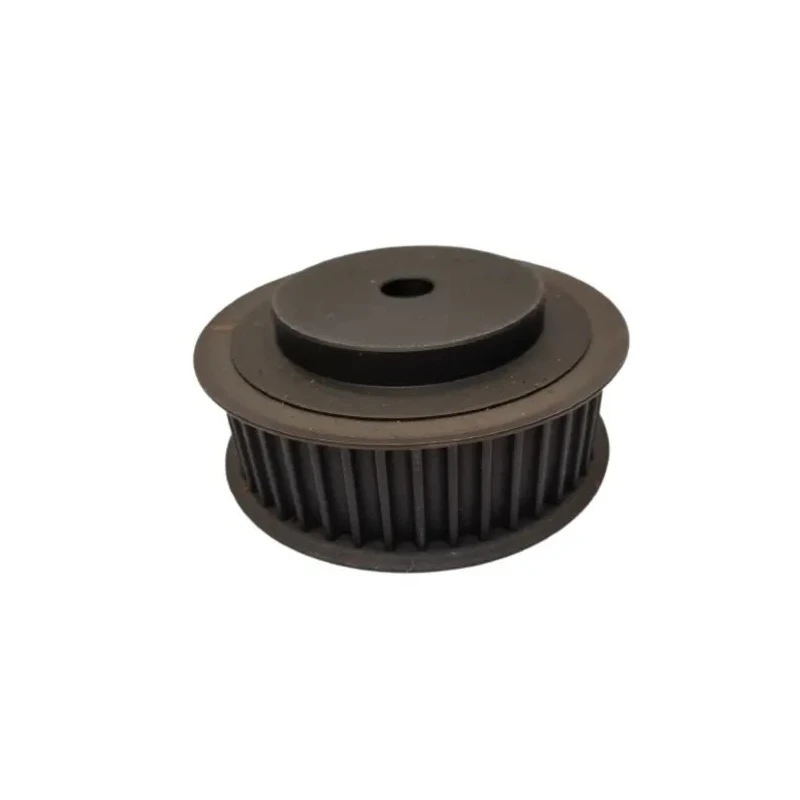

OPTIBELT Timing Belt Pulley Aluminium 9 mm Belt Width 3 mm Pitch 36 Teeth Flanged Bore 16 mm 363M9

OPTIBELT 363M9 Timing Belt Pulley is a precision-engineered aluminium pulley designed for use with 9 mm wide HTD timing belts featuring a 3 mm pitch and 36 teeth. This high-strength aluminium pulley provides excellent durability and reliability in mechanical power transmission systems.

The pulley has a pitch circle diameter of 34.38 mm and an outside diameter of 33.62 mm, making it compact and suitable for various constrained mechanical assemblies. The flanged design with a flange diameter of 39 mm ensures the belt remains properly aligned during operation, preventing slippage and wear.

The bore diameter is finished at a maximum of 16 mm with a pilot bore type, allowing for secure mounting on standard shafts. This precision bore enables smooth rotation and minimal vibrations, essential for high-accuracy applications.

OPTIBELT pulleys like the 363M9 model are widely used in industrial automation, manufacturing machinery, conveyor systems, and other applications that require synchronous belt drives with power transmission accuracy and efficiency.

Constructed from high-strength aluminium, this pulley offers resistance to wear and corrosion, thereby extending service life even in demanding environments. It is designed specifically to work with HTD belts, providing improved torque transmission and reduced backlash.

Constructed from durable aluminium material for high strength. Features 36 teeth with a pitch circle diameter of 34.38 mm. Flanged design with flange diameter of 39 mm ensures proper belt alignment. Bore diameter capped at 16 mm with a pilot bore type for secure shaft fitting.

Suitable for mechanical power transmission applications requiring timing belts. Compatible with HTD belts for efficient synchronous power transfer. Finished bore hole provides precision and smooth operation. Outside diameter measures 33.62 mm providing compact pulley size.

Designed for industrial, manufacturing, and automation uses. Flange adds stability and prevents belt slippage during operation.

This OPTIBELT Timing Belt Pulley 363M9 represents a reliable component choice for engineers and maintenance professionals in industrial sectors including mechanical engineering, HVAC systems, and agricultural machinery. Its precision attributes and material strength support extended operational life, minimizing downtime and maintenance costs.
