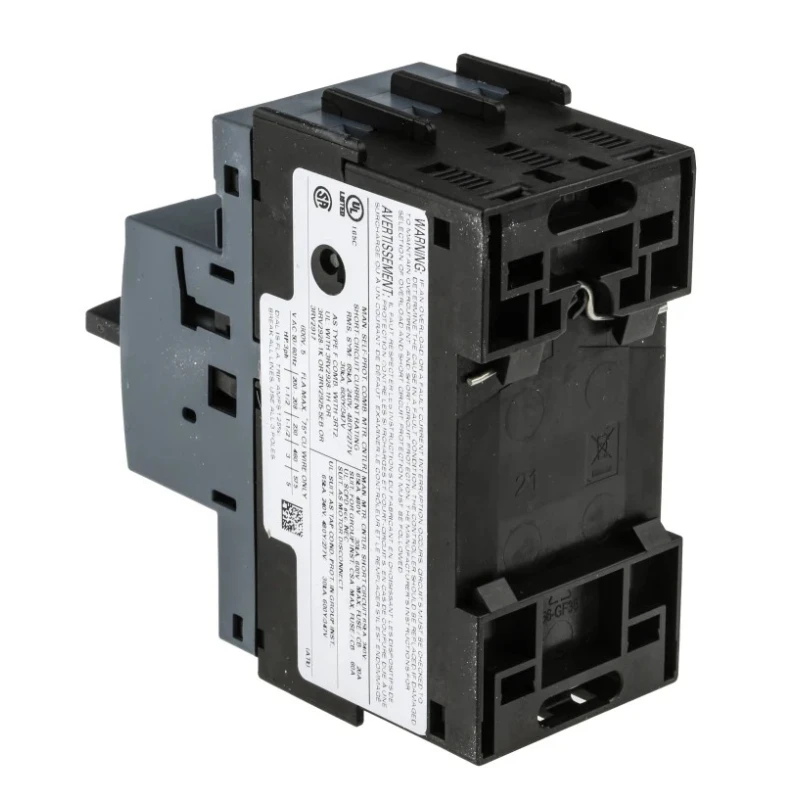

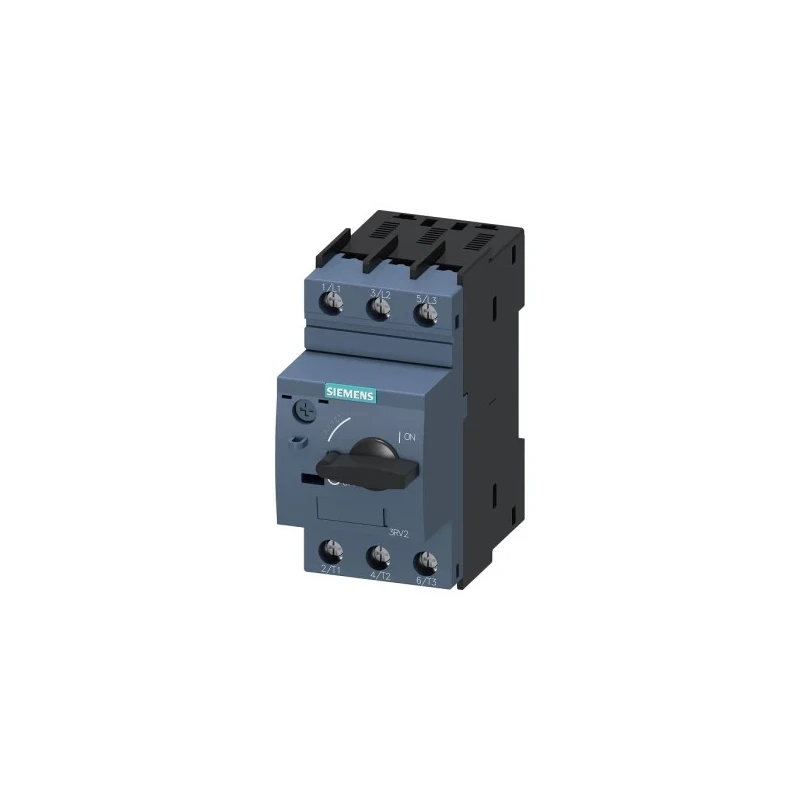

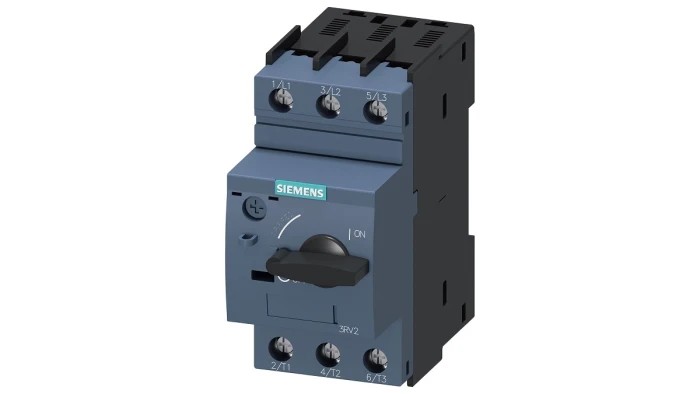

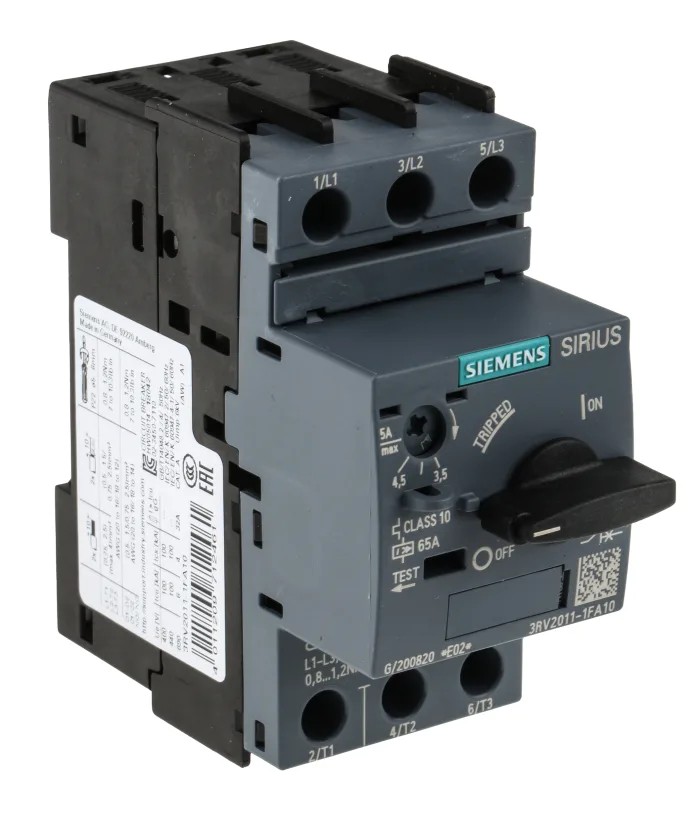

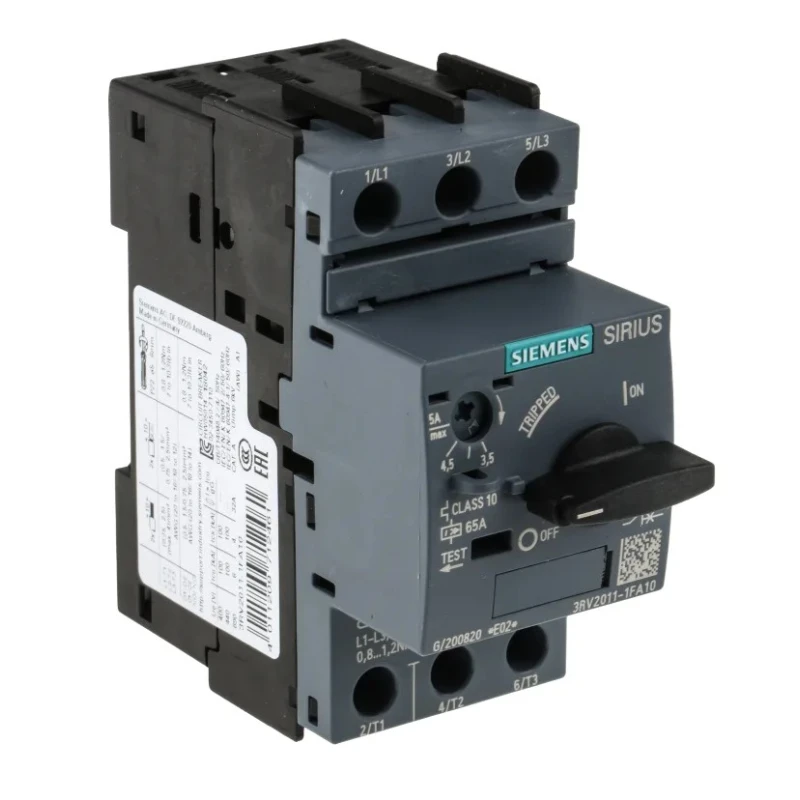

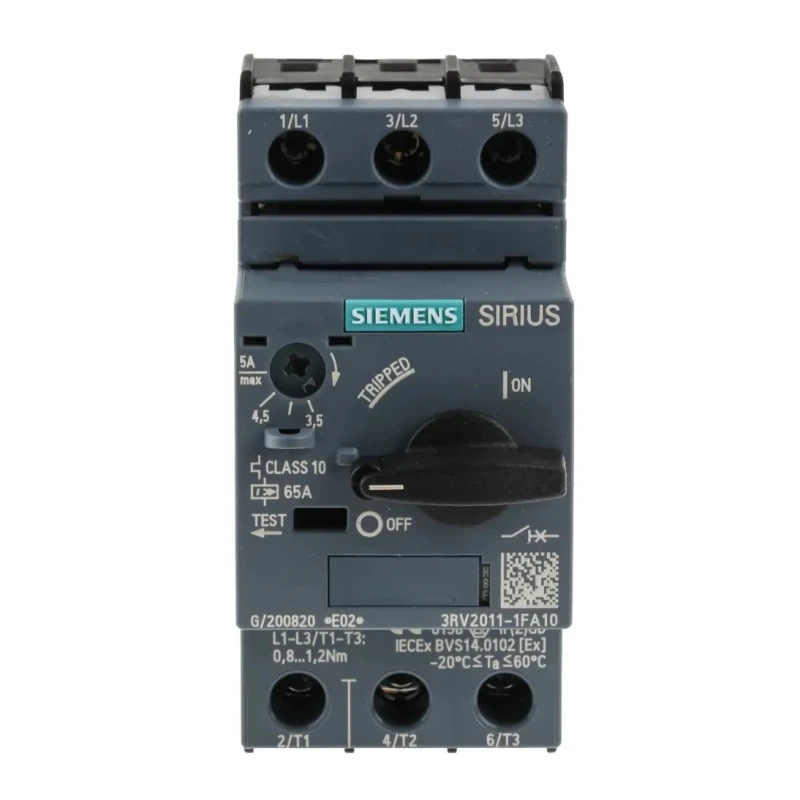

Siemens Motor Protection Circuit Breaker 3.5A, 5 A, 690V, IP20, Magnetic Sensing 3 Poles 3RV2011-1FA10

Siemens 3RV2011-1FA10 Motor Protection Circuit Breaker is a high-quality protective device designed to safeguard electric motors by interrupting current flow in case of overloads or short circuits. Operating at a supply voltage of 690V with rated currents of 3.5A and 5A, this circuit breaker belongs to the Siemens SIRIUS Innovation series.

The robust thermoplastic enclosure of the device provides excellent resistance to impact and corrosion while ensuring electrical insulation for operator safety. With compact overall dimensions of 97 mm in length, 45 mm in width, and 91 mm in depth, the breaker is suitable for installation in environments with limited space.

Key electrical features include magnetic sensing type, 3 poles, and IP20 ingress protection rating, which shields against solid objects larger than 12 mm. The device withstands operating temperatures from -20°C to 60°C, enabling its use in challenging industrial settings.

This motor protection circuit breaker is ideal for application in industrial motor-controlled machinery such as compressors, mixers, and similar equipment where precise motor safeguarding is critical. It also features a 6kV rated surge voltage resistance value, offering protection against transient power spikes.

Mounting options include screw or snap-on installation on DIN rails, providing easy and secure attachment in control panels. The device complies with numerous international standards including RoHS, LRS, ATEX, CSA, UKCA, UL, CE, CCC, ABS, EAC, and VDE.

Designed with magnetic sensing for effective overload and short circuit protection. Compact dimensions enable installation in limited spaces. IP20 rating provides dust and object protection. Wide temperature range supports varied industrial conditions.

Robust thermoplastic housing resists impact and corrosion. 6kV surge voltage resistance ensures operational durability. 3 poles enable comprehensive motor protection. Complies with multiple international safety and quality standards.

This Siemens Motor Protection Circuit Breaker represents a reliable and efficient solution for protecting industrial motors in various applications across manufacturing, HVAC systems, water treatment plants, and agricultural machinery. Explore related products within our motor protection category to meet your specific operational needs.
