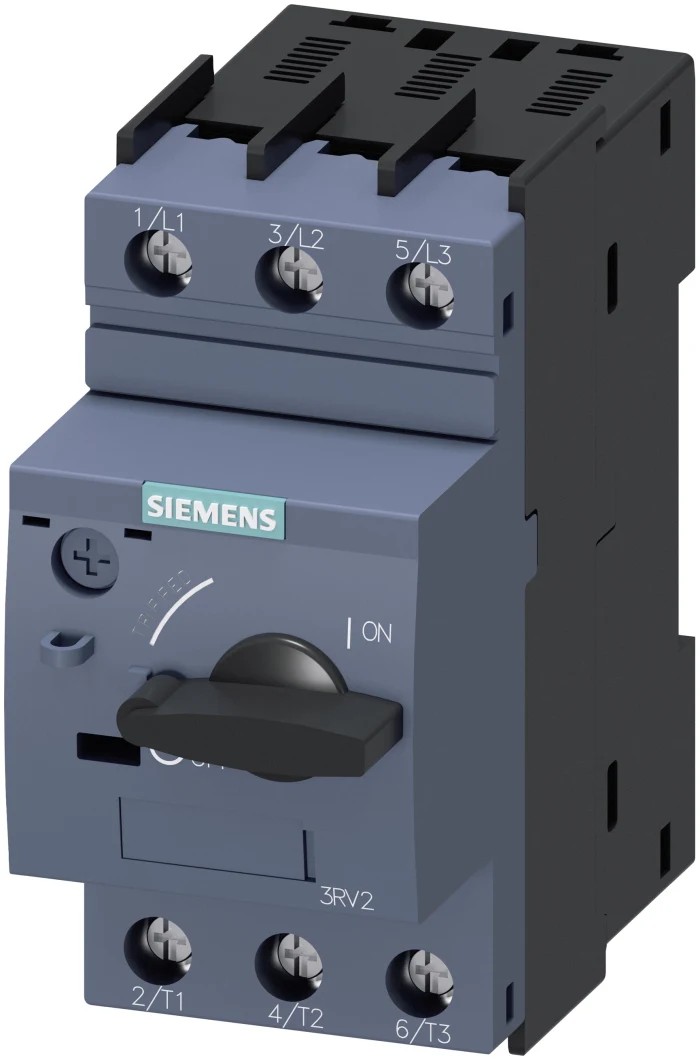

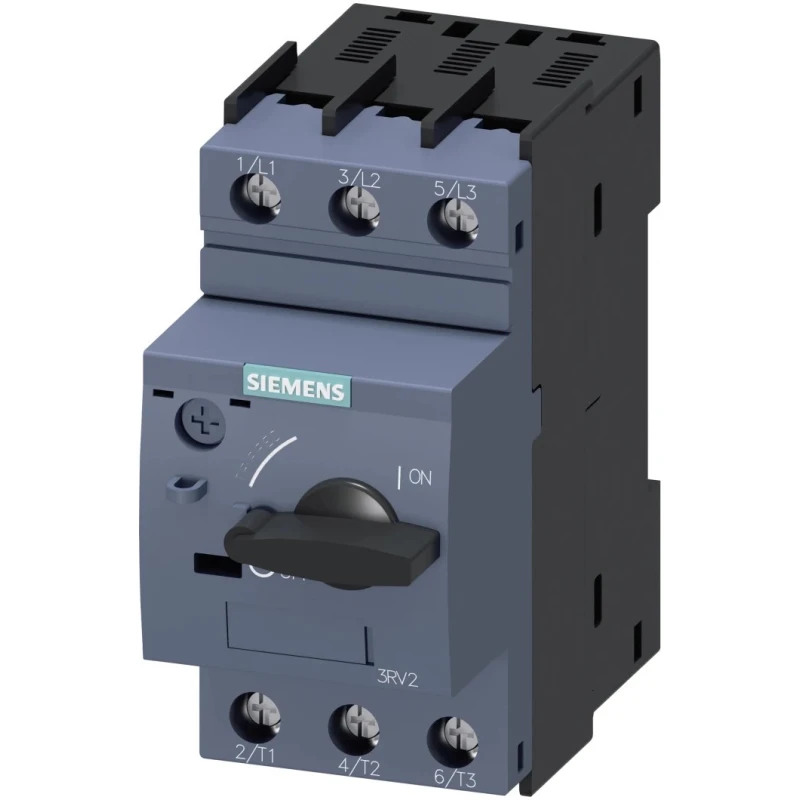

Siemens Motor Protection Circuit Breaker 3RV2011-0EA20, 280 mA, 400 mA, 690V, Magnetic Sensing, IP20, 3 Poles, -20°C to 60°C

Siemens 3RV2011-0EA20 Motor Protection Circuit Breaker is engineered for reliable motor protection in industrial and electrical automation systems. It features magnetic sensing technology and supports current ratings of 280 mA and 400 mA, making it suitable for a variety of motor control applications operating at a supply voltage of 690V.

The device is designed to handle operation in ambient temperatures ranging from -20°C to 60°C, protected by an IP20 ingress protection rating to prevent ingress of solid objects over 12 mm. The breaker is compact with overall dimensions of 97 mm in length, 45 mm in width, and 91 mm in depth, optimized for ease of mounting in control panels.

This 3-pole circuit breaker ensures secure electrical connections via screw or spring clamp terminals. It features an impulse voltage resistance of 6 kV, enhancing resistance against transient overvoltages commonly encountered in industrial environments. The breaker complies with international standards including VDE, UL, UKCA, RoHS, CE, LRS, EAC, CSA, CCC, ATEX, and ABS, ensuring wide acceptance and compliance in global markets.

The product has a low real loss power consumption of 6-7 watts, offering energy-efficient operation and supporting sustainability goals. Produced in Germany, it carries the Siemens quality assurance and contributes to extended product life with a low carbon manufacturing claim.

This motor protection breaker is extensively used in industrial automation, manufacturing plants, HVAC systems, water treatment installations, and commercial motor control circuits where robust and reliable motor protection is critical.

Provides motor protection with magnetic sensing technology. Features a rated supply voltage of 690V for heavy-duty applications. Designed for operation between -20°C and 60°C with IP20 protection rating. Compact dimensions: 97 mm length, 45 mm width, and 91 mm depth for easy installation.

Includes 3 poles and screw or spring clamp connections for secure wiring. Complies with multiple standards including VDE, UL, UKCA, RoHS, CE, and CSA approvals. Low power loss with only 6-7W real loss power, maintaining energy efficiency.

Impulse voltage resistance up to 6 kV for robust operational safety. Manufactured in Germany with extended product life and low carbon manufacturing benefits. Explore more Siemens Motor Protection Circuit Breakers and control gear on EnvMart to find solutions fitting diverse industrial automation requirements.
